(2) Connecting the DVD Player and TV
• Connect the DVD player’s video signals directly to the TV and switch the picture on the TV.
• When making connections, also refer to the operating instructions of the other components.
Connecting the DIGITAL Jack
• Use a commercially available optical transmission cable for
connection to the optical transmission terminal (OPTICAL).
Connecting the AUDIO Jack
• Connect the video disc player’s analog audio output jacks
(ANALOG AUDIO OUT) to the DVD IN jacks using pin plug
cords.

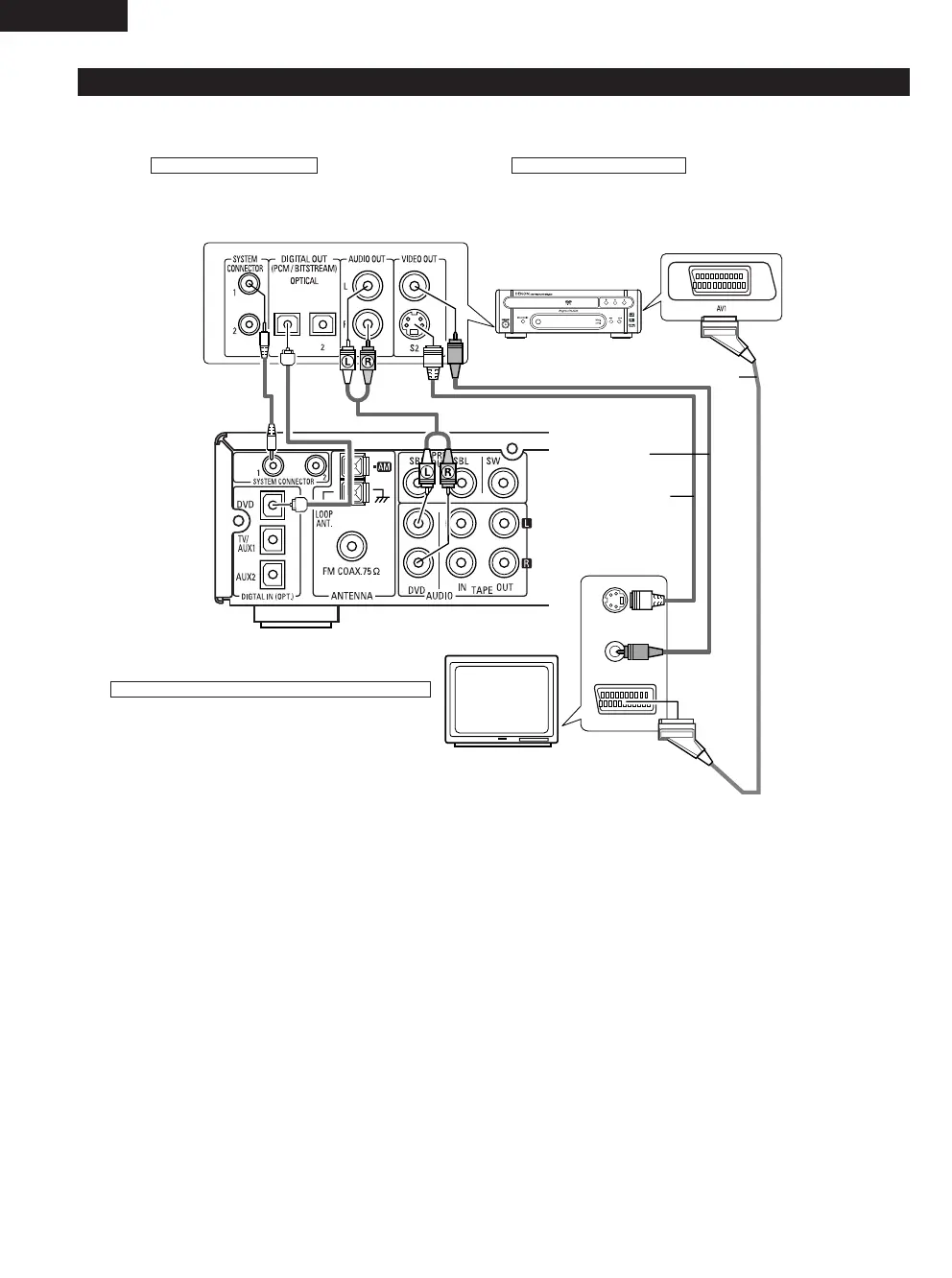

System Cord Optical Cord Audio cord
VIdeo cord
S VIdeo cord
SCART cord
TV
Connecting the VIDEO Jack (DVD-M330)
• Connect the TV’s video input jack (VIDEO INPUT)to the DVD’s
VIDEO OUT jack using a 75
Ω/ohms video cord.
AV SURROUND RECEIVER
(AVR-M330)
DVD VIDEO PLAYER
(DVD-M330)
