(3) Connecting the Audio Signals of a Digital Satellite Tuner and VCR
• Connect the video signals directly to the TV and switch the picture on the TV.
• When making connections, also refer to the operating instructions of the other components.
Connection to the optical digital input terminal
• Only audio signals are input to the optical digital
input terminal.
• Use a commercially available optical transmission
cable for connection to the optical transmission
terminal (OPTICAL).

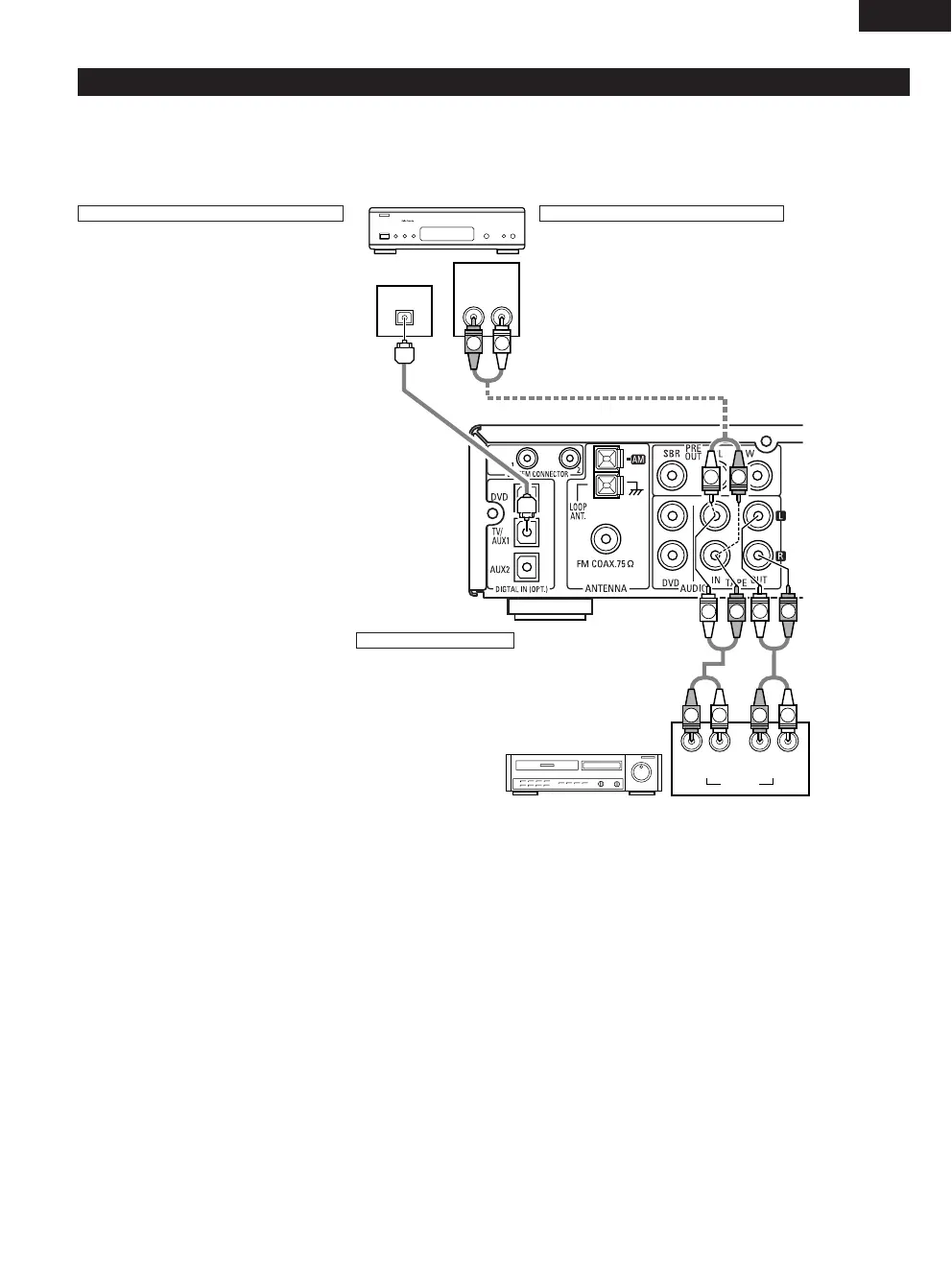

Connection of a digital satellite/cable tuner
• For tuners equipped with an optical digital output terminal,
connect the digital output terminal to the DIGITAL TV/AUX1 IN
terminal on the AVR-M330 using an optical transmission cable.
•To connect the audio output terminals, use whatever of the
AVR-M330’s TAPE terminals are open.
Connection of a video deck
• Connect the video deck’s audio output and audio input
terminals to whatever of the AVR-M330’s TAPE terminals are
open using pin-plug cords.
Video deck
Digital satellite/cable tuner
AV SURROUND RECEIVER
(AVR-M330)
To Next Page
