Thank you very much for purchasing the DENON component stereo
cassette tape deck.
DENON proudly presents this advanced tape deck to audiophiles and
music lovers as a further proof of DENON's non compromising pursuit of
the ultimate in sound quality. The high quality performance and easy
operation are certain to provide you with many hours of outstanding
listening pleasure.
- TABLE OF CONTENTS -
FEATURES ....................................................................................... 5
CONNECTION ................................................................................... 5
NAMES AND FUNCTION OF PARTS ................................................. 6, 7
CASSETTE TAPES ............................................................................. 7
AUTOMATIC TAPE SELECTION .......................................................... 8
PLAYBACK ........................................................................................ 8
RELAY PLAY ..................................................................................... 9
TWIN OUTPUT ................................................................................. 9
MUSIC SEARCH SYSTEM ................................................................... 9
RECORDING ................................................................................... 10
PROPER RECORDING LEVEL ............................................................ 10
REC/REC MUTE AND REC PAUSE BUTTON ........................................ 10
AUTO-STANDBY ............................................................................. 11
TWIN RECORDING ......................................................................... 11
RELAY RECORDING ........................................................................ 11
DUBBING ....................................................................................... 12
DECK A/B SELECT AND MEMORY STOP ............................................ 13
DOLBY B AND C NOISE REDUCTION SYSTEM ................................... 14
DOLBY HX-PRO HEADROOM EXTENSION SYSTEM ............................ 14
MAINTENANCE ............................................................................... 14
TROUBLESHOOTING ....................................................................... 15
SPECIFICATIONS ............................................................................ 15
WIRED REMOTE DIAGRAM............................................................... 16
CONNECTION
Please check to make sure the followin
items are included with
the main unit in the carton:
(1) Operating Instructions ......................................................... 1
(2) Connection Cords ................................................................ 2
(3) Remote control box connection wire ..................................... 1
(4) Remote control box schematic diagram ................................ 1
FEATURES
• Computer Controlled Mechanism
• Dual Power Supply
• Dolby HX-Pro Headroom Extension System (deck B only)
• Dolby B & C Noise Reduction Systems (A/B Independent)
• Computing Tape Counter with 4-Digit Readout and Memory
Stop
•
Music Search System
• FL Peak Level Meters
• Auto Tape Selector
• 2-Speed Dubbing
•
Relay Playback
• Twin Recording and Relay Recording
•
19-inch Rack Mountable
• Speed Control of Approximately ±12% (A/B Independent)
• Accurate Music Search System
• Display Memory Back-up
•
Twin Output
•
uto-standb
Leave your entire system (including this cassette deck) turned off
all connections between the deck and other components have been
completed.
•

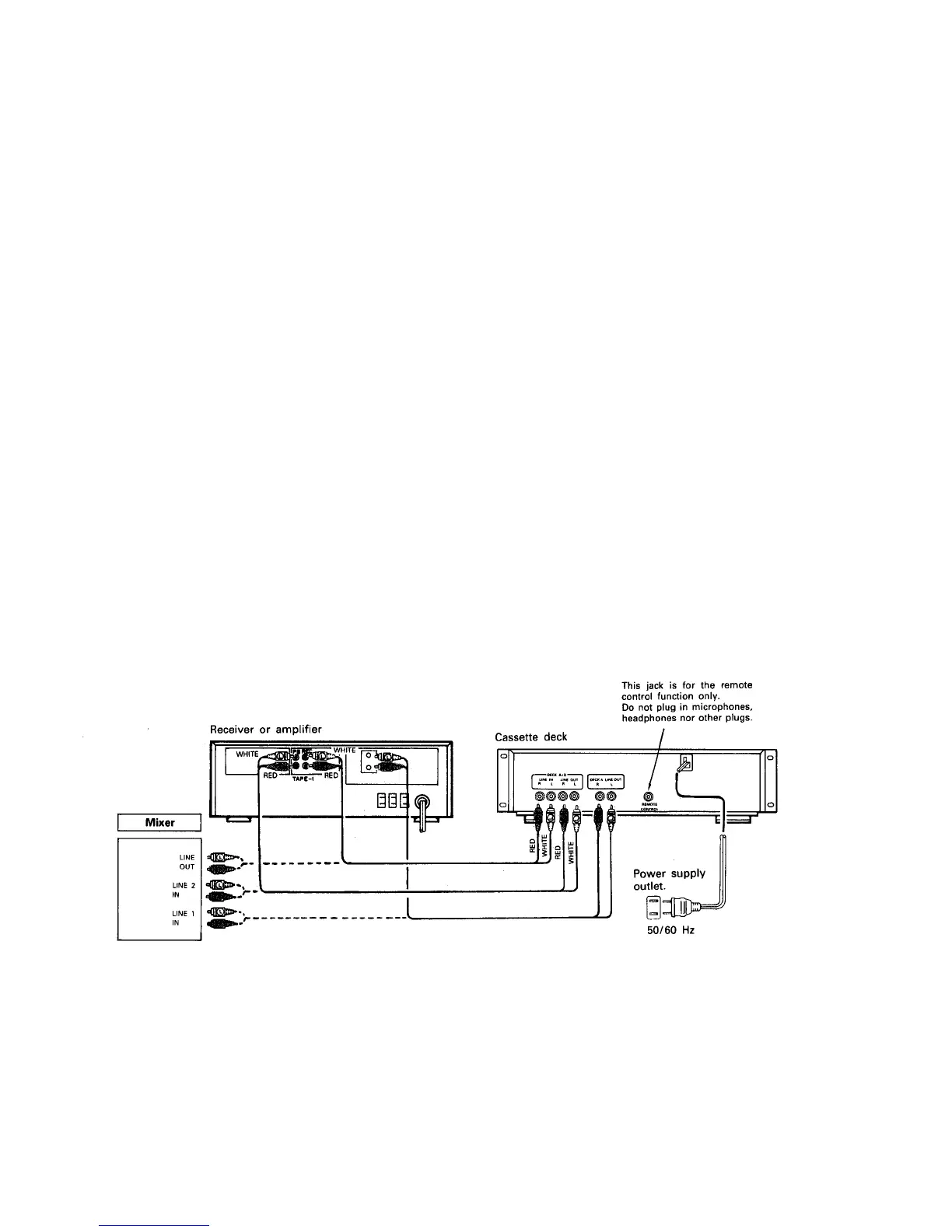

Connecting the Deck to an Amplifier (Mixer)
Before connecting the deck to your amplifier, please review your
amplifier's instruction manual. Use the white plugs for the left
channel and red plugs for the right channel.
•
Tape Dubbing
Many stereo amplifiers and receivers have tape dubbing circuitry
so that tape duplication can be performed between two or more
tape decks. Review your amplifier's instruction manual for a full
explanation of this mode of operation.
•
Connecting Headphones
To listen through headphones, plug your headphones into the
PHONES jack.
•
Installation Precautions
If the deck is placed near an amplifier, TV or tuner, noise (induced
hum) or beat interference may result, especially during FM or AM
reception. If this occurs, place the deck further away from other
components or reorient its position.
