Denon DRA-100

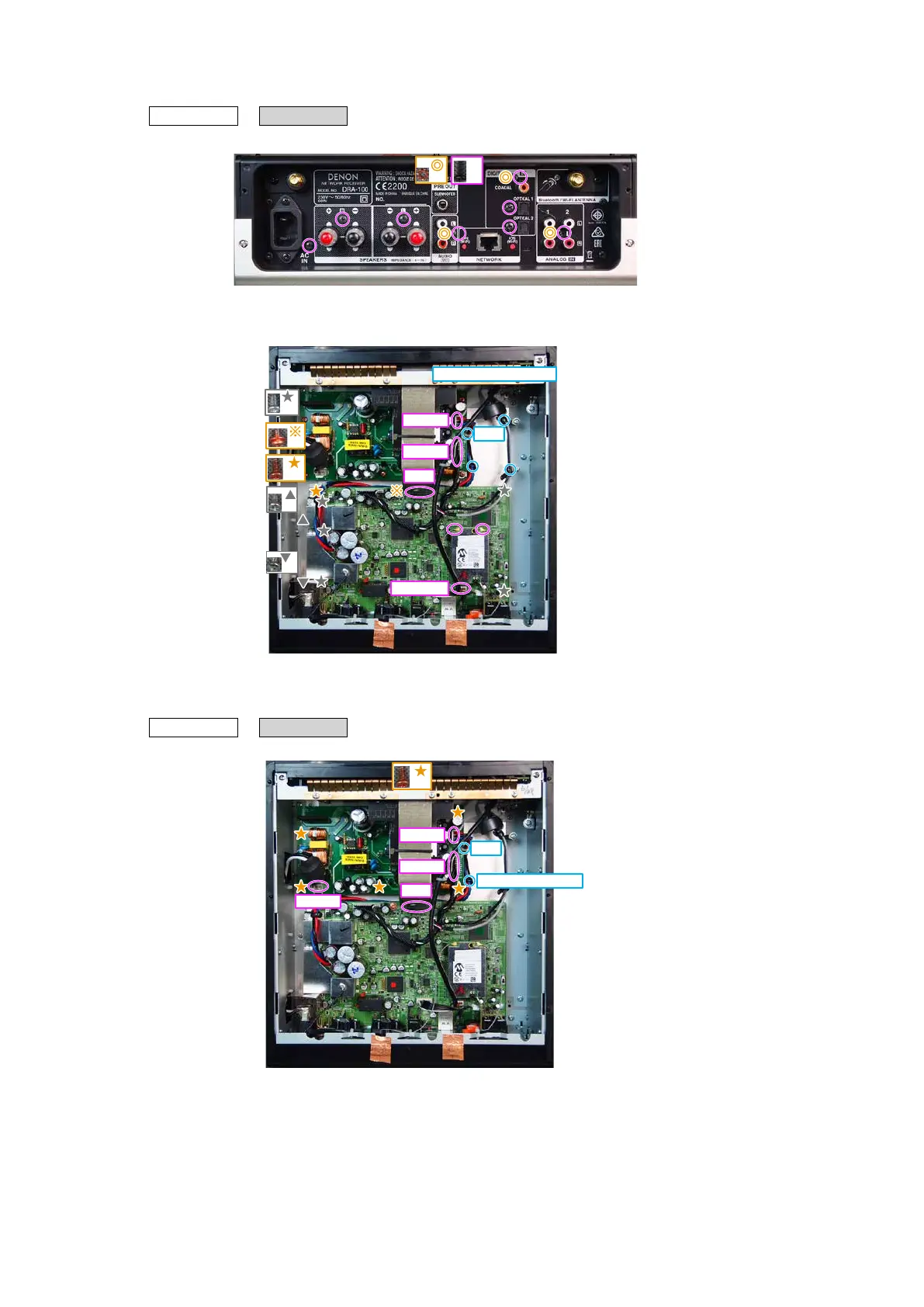

1. MAIN PCB
Proceeding : TOP COVER
→
MAIN PCB
(1) Remove the screws.
(2) Remove the screws. Cut the wire clamp, then remove the connector. Remove the FFC.
2. SMPS PCB
Proceeding : TOP COVER
→
SMPS PCB
(2) Cut the wire clamp, then remove the connector wire. Remove the screws.
x8
x2
x1
x1
x5
x2
x4
CN221
CN222
FFC
CP1305
CUT
CORD HOLDERx3
x1
CN221
CN222
FFC
CN801
CUT
CORD HOLDER
