Trigger Control

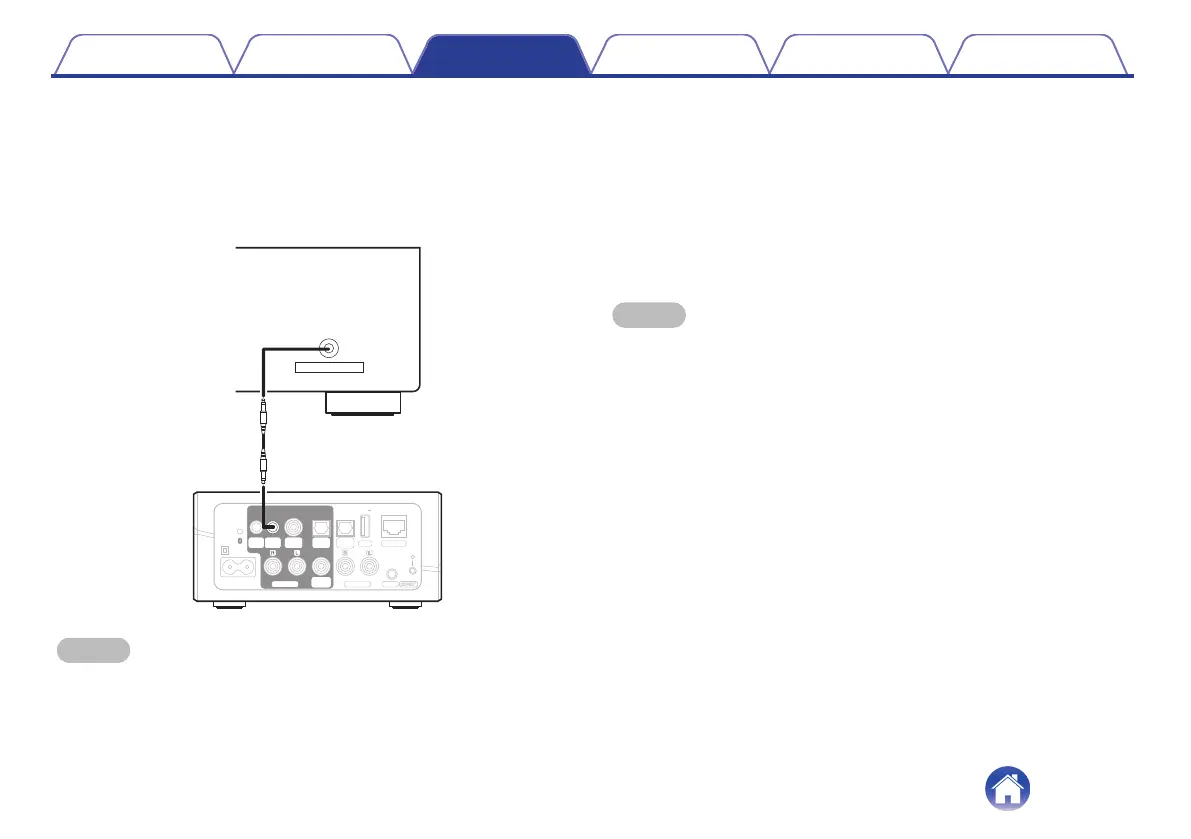

If the power amplifier connected to this unit has a trigger input
connector, connect it to the TRIGGER OUT jack of this unit using a
3.5mm cable (not included). A signal up to 12 V/150 mA is output from
the TRIGGER OUT jack.
.
DC12V
150mA
MAX.
IN
OPTICAL
USB
NETWORK
AUX IN
LINE IN
5V1A
WOOFER
SUB
OUT
TRIGGER
OUT
IR
AC IN
PRE OUT
OUT
COAXIAL
OUT
OPTICAL
TRIGGER IN
Power amplifier
NOTE
0
Use a monaural mini-plug cable for connecting the TRIGGER OUT jacks. Do not
use a stereo mini-plug cable.
o
Trigger out
Select Trigger Control when you are connecting your HEOS to a power
amp that supports +12 V trigger input.
The HEOS app can control the power on and off for the amp.
1
Select Trigger.
2
Select Done.
NOTE
0
You can test the connection to the amp by pressing the power on, off in setting
screen for the amp.
