Denon MC6000MK2EM - Detailed Disassembly by Section

13

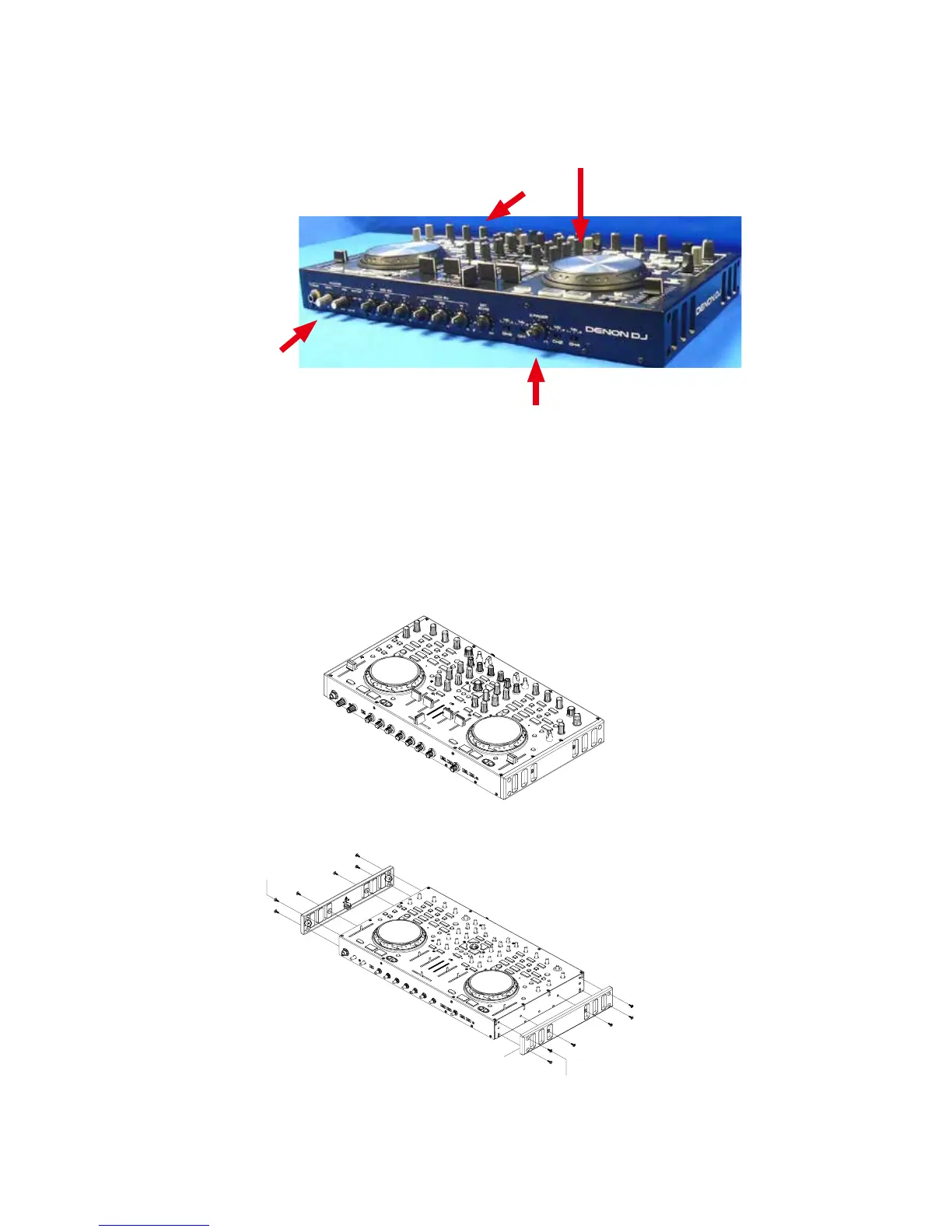

Explanatory Photos for“ DISASSEMBLY”
• The angles from which the photos are taken are shown by“ Photo angle: A, B, C, D“ .
• See the diagram below about the shooting direction of each photograph.
• Photographs with no shooting direction indicated were taken from the top of the set.
1. Dismantle the packaging, taking out the machine.
2. Remove the screws*12 from side cover.
Reassemble the rear panel by the 5th step. Step of screw tightening.(1-6)
Side Cover*2
5
6
1
5
4
3
6
2
Screw*6
1
2
3
4
Screw*6
Shooting direction: B
(Rear side)
Shooting direction: D
(Top side)
Shooting direction: A
(Front side)
Shooting direction: C
(Bottom side)
