3. Remove the rotary knob *41 and push knob*6 from panel.

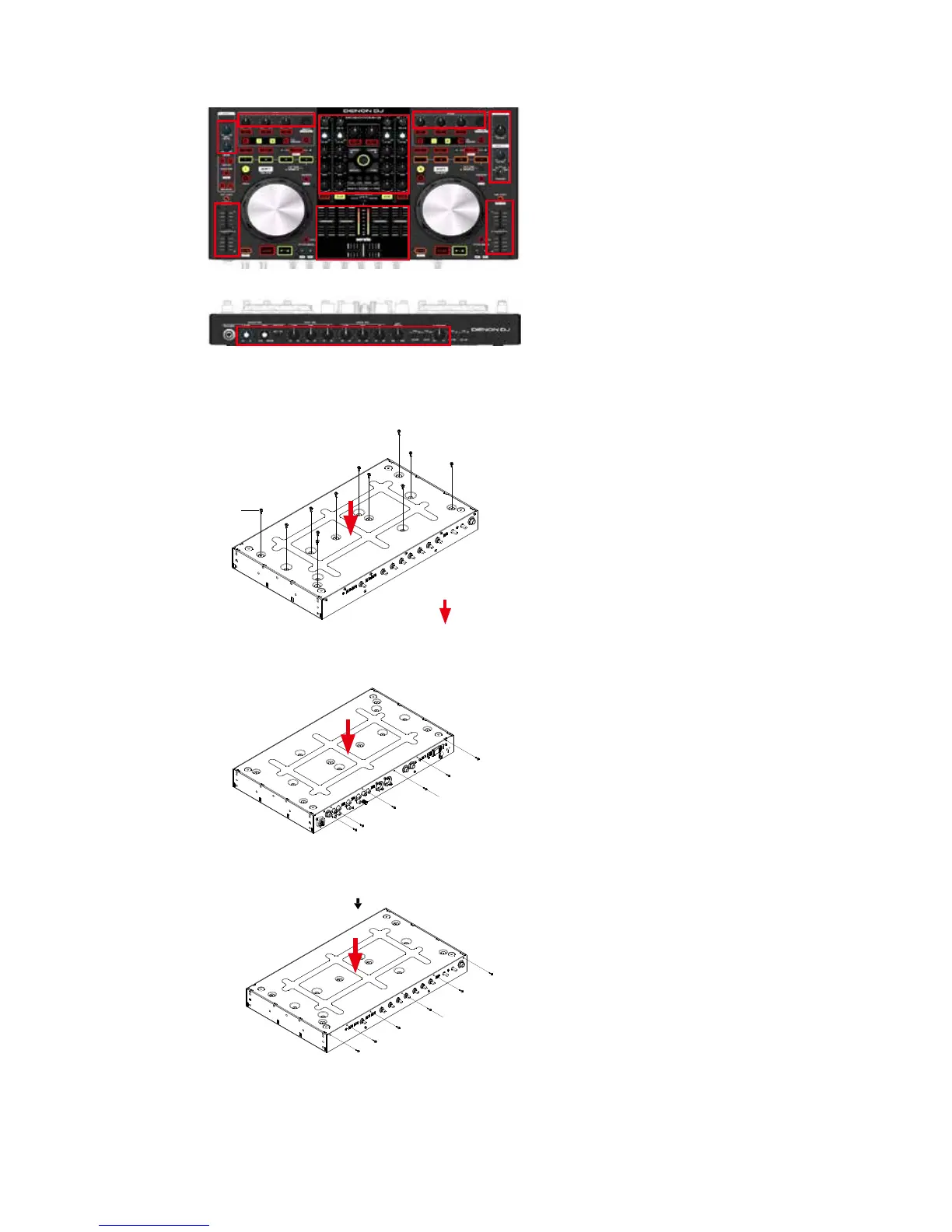

4-1. Remove the screws*12 from bottom base.
Reassemble the bottom base by the 4th step. Step of screw tightening from1 to 12.
Caution on assembly of the bottom panel.
To push one hande and hold at.
4-2. Remove the screws*6 from rear panel.
Reassemble the rear panel by the 2nd step. Step of screw tightening (1-6).
4-3. Remove the screws*6 from front panel.
Reassemble the front panel by the 3rd step. Step of screw tightening from (1-6).
1
screw*6
2
3
4
5
6
1
3
2
4
5
6
screw*6
screw*12
1
2
3
4
5
6
7
8
9
10
11
12
