15

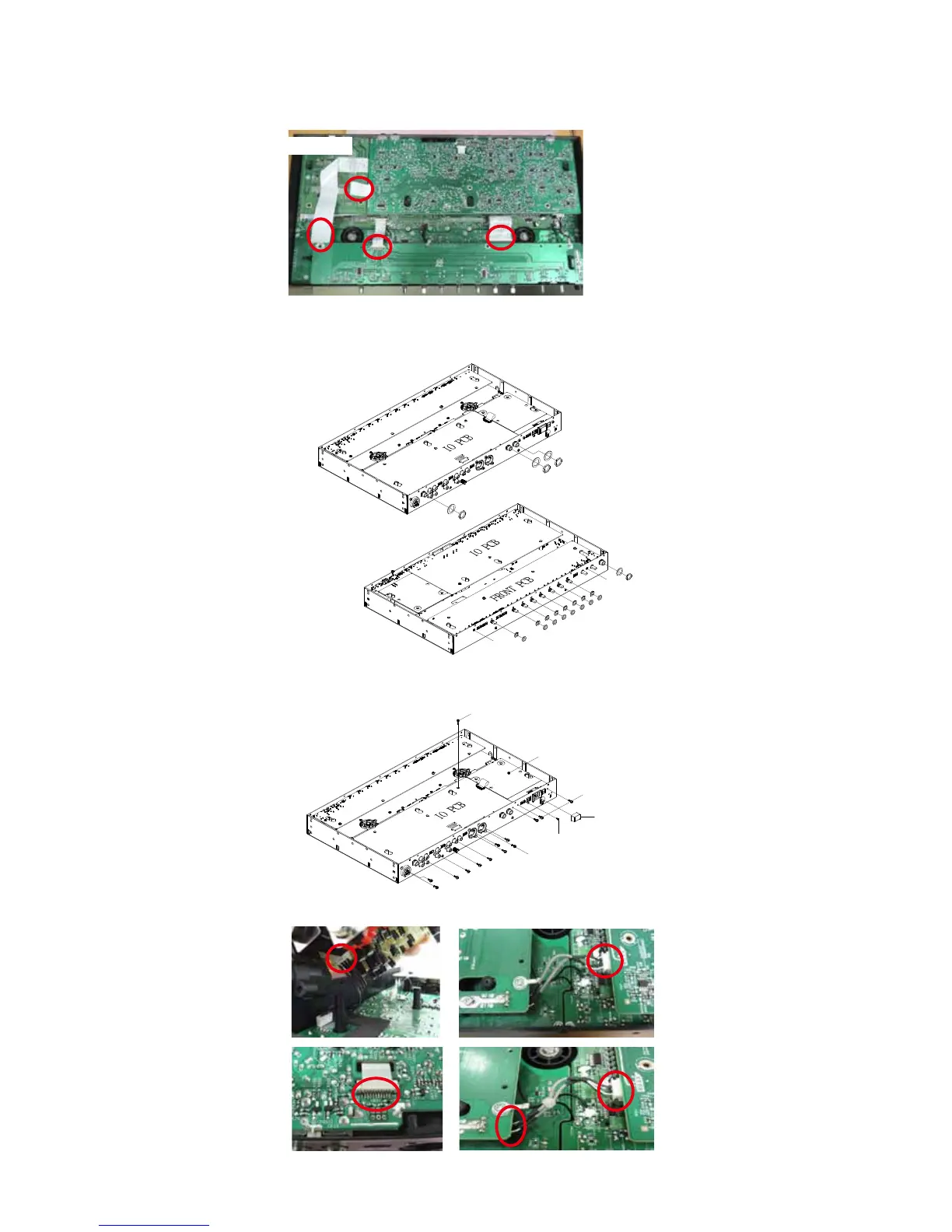

5-1. Disconnect the FCC cable(follow Figure A).
5-2. Remove the MAIN pcb ass'y.(follow Figure A).
Shooting direction: C (Bottom side)
6. Remove the nuts*12 and washer *12.
7. Remove the screws*15 and remove power button.
Step of screw tightening.(1-10)
8. Disconnect the FCC cable and connector wire and remove cable tie.(follow Figure B).
screw*1
MAIN pcb ass'y
Power button
screw*1
3
2
1
screw*3
screw*10
1
2
3
4
5
6
7
8
9
10
MAIN PWB ASSY
↓
Figure A
Figure B
