Denon PMA-2000AE - Schematic Diagrams (1;3); Input;Control and Protection Units

28
PMA-2000AE
SIGNAL LINE
SCHEMATIC DIAGRAMS (1/3)

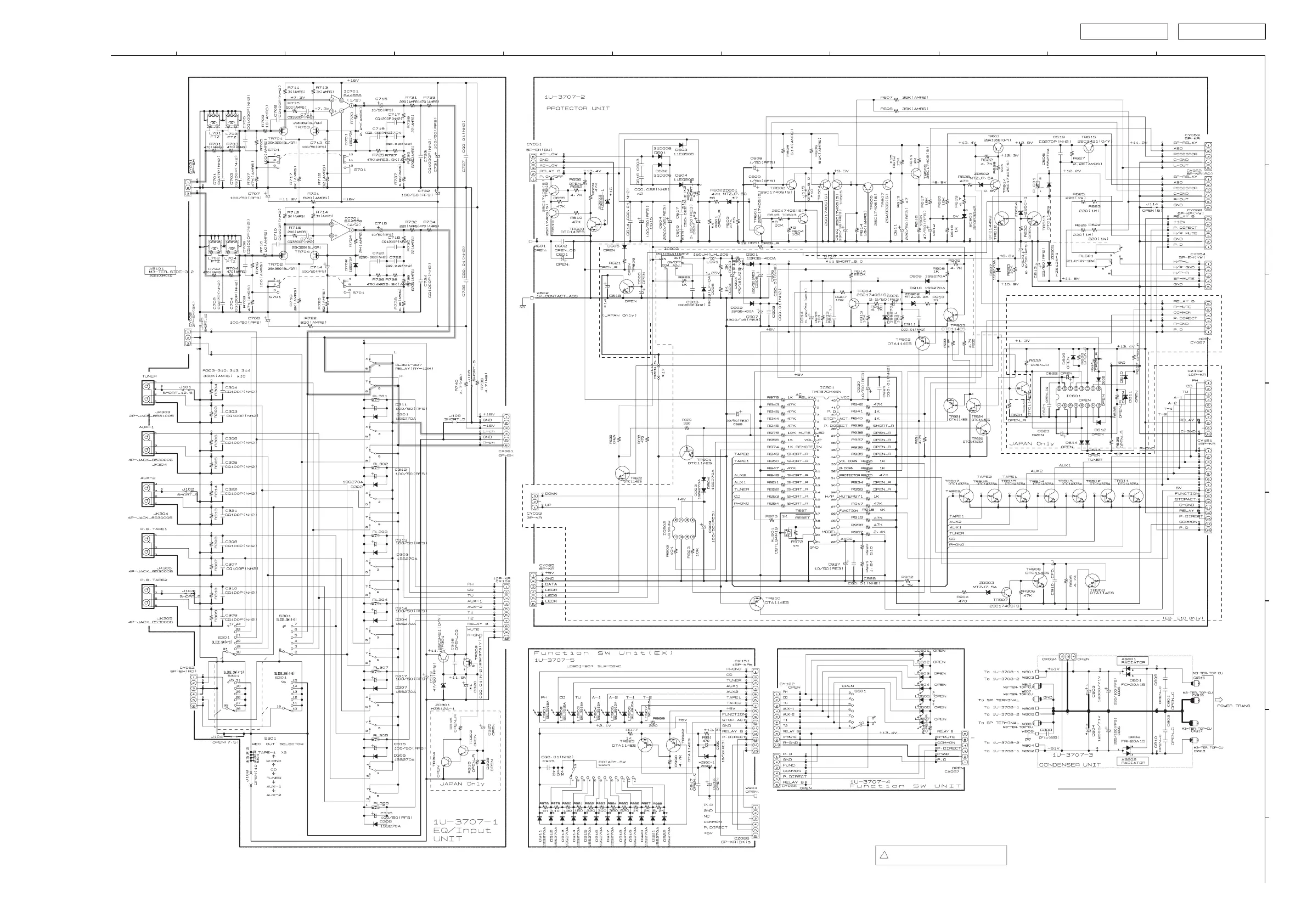

1U-3707 INPUT/CONTROL P.W.B. UNIT
(For E2 model)
SCHEMATIC DIAGRAMS (1/3)
1234567891011
A
B
C
D
E
F
G
H
PMA-2000AEE2 model
2
Addition of R701-704,C301-310,C321,C322,
C701,C702,C709,C710 and L701-704.
