(14) Disconnect the mains cord from the unit.
(15) Connect the RS-232C on the DATA UPDATE KIT and the Serial Port of windows PC with RS-232C cable.

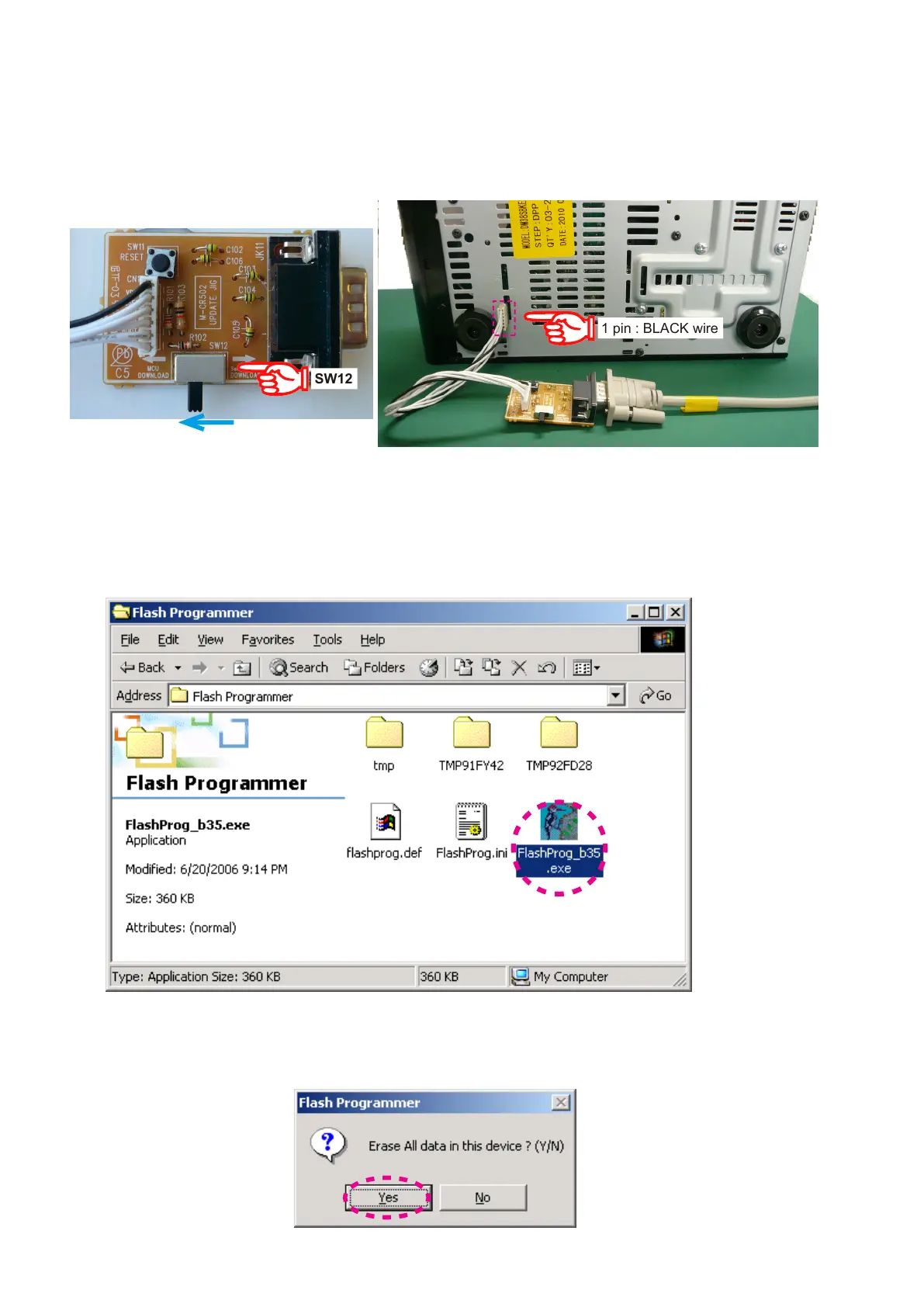

Set the slide switch (SW12) to "MCU DOWNLOAD".
(16) Connect the connective wire (1 pin is lower in a picture) to the bottom chassis of the unit from DATA UPDATE KIT.
Caution : A connector pin has the connection direction.
Refer to the photograph.
(17) Connect the mains cord into the unit.
(18) Press the ON/STANDBY button to turn on the unit.
(19) Double click FlashProg_b35.exe, and launch the Flash Programmer again.
(20) The Flash Programmer communicates automatically.
When communication succeeds between a unit and a program, a dialog box saying "Erase All data in this device?
(Y/N)" appears.
Click Yes.
32
