PRINTED WIRING BOARDS
鉛フリー半田
半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。
Lead-free Solder
When soldering, use the Lead-free Solder (Sn-Ag-Cu).

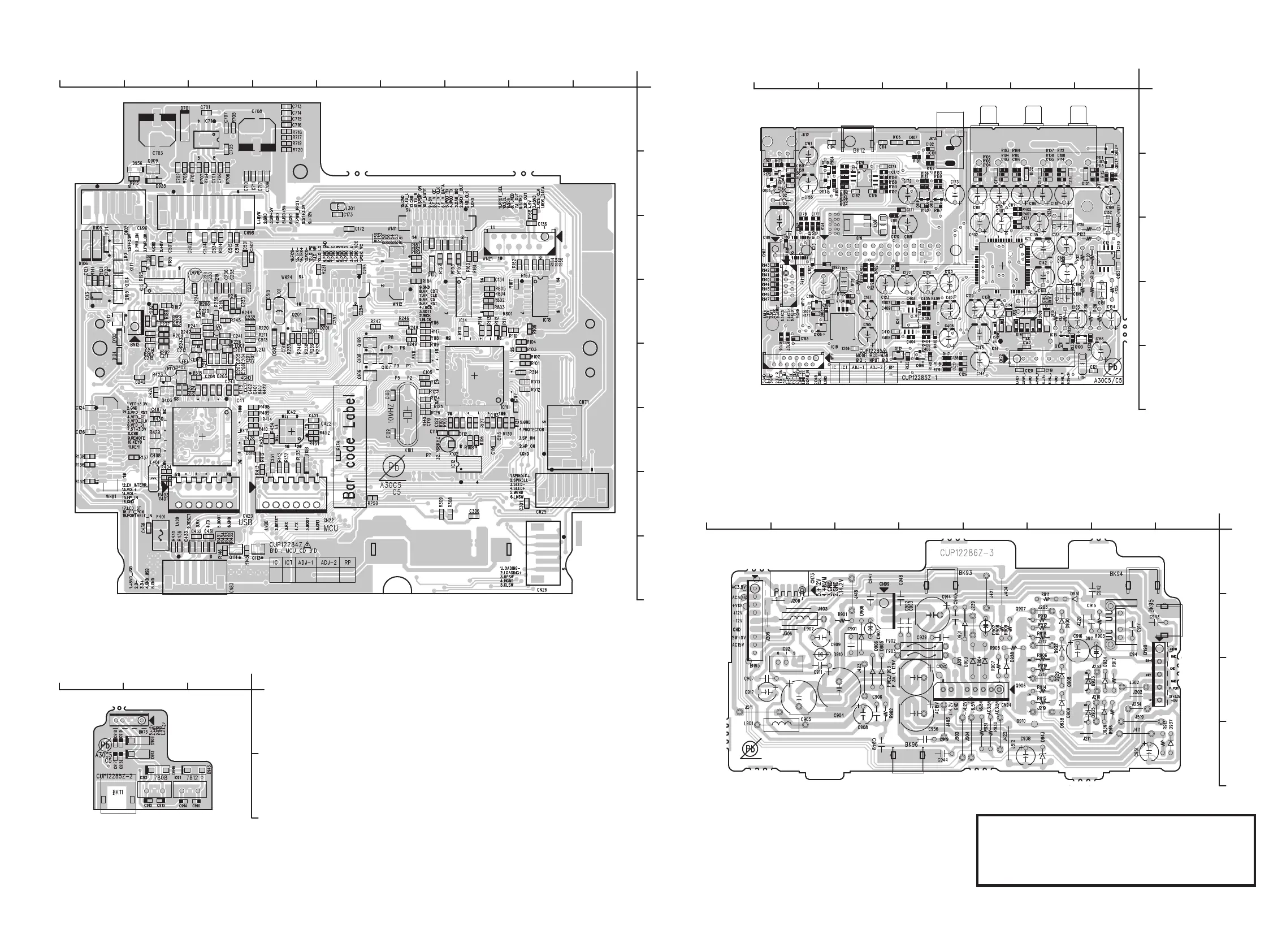

MCU PCB (COMPONENT SIDE) INPUT PCB (COMPONENT SIDE)
GUIDE PCB (COMPONENT SIDE)
REGULATOR PCB (COMPONENT SIDE)
