13
S-52/S-52DAB/S-32
4. 1U-3851CDROMUNIT(S-52)
(1) D のねじ 2 本と E のねじ2本をはずしてから、MAIN
CHASSISとMECHABRACKETを矢印方向にはずす。
(2) ピックアップを後方に移動し、半田付けショートを
行ってから、FFC をはずす。

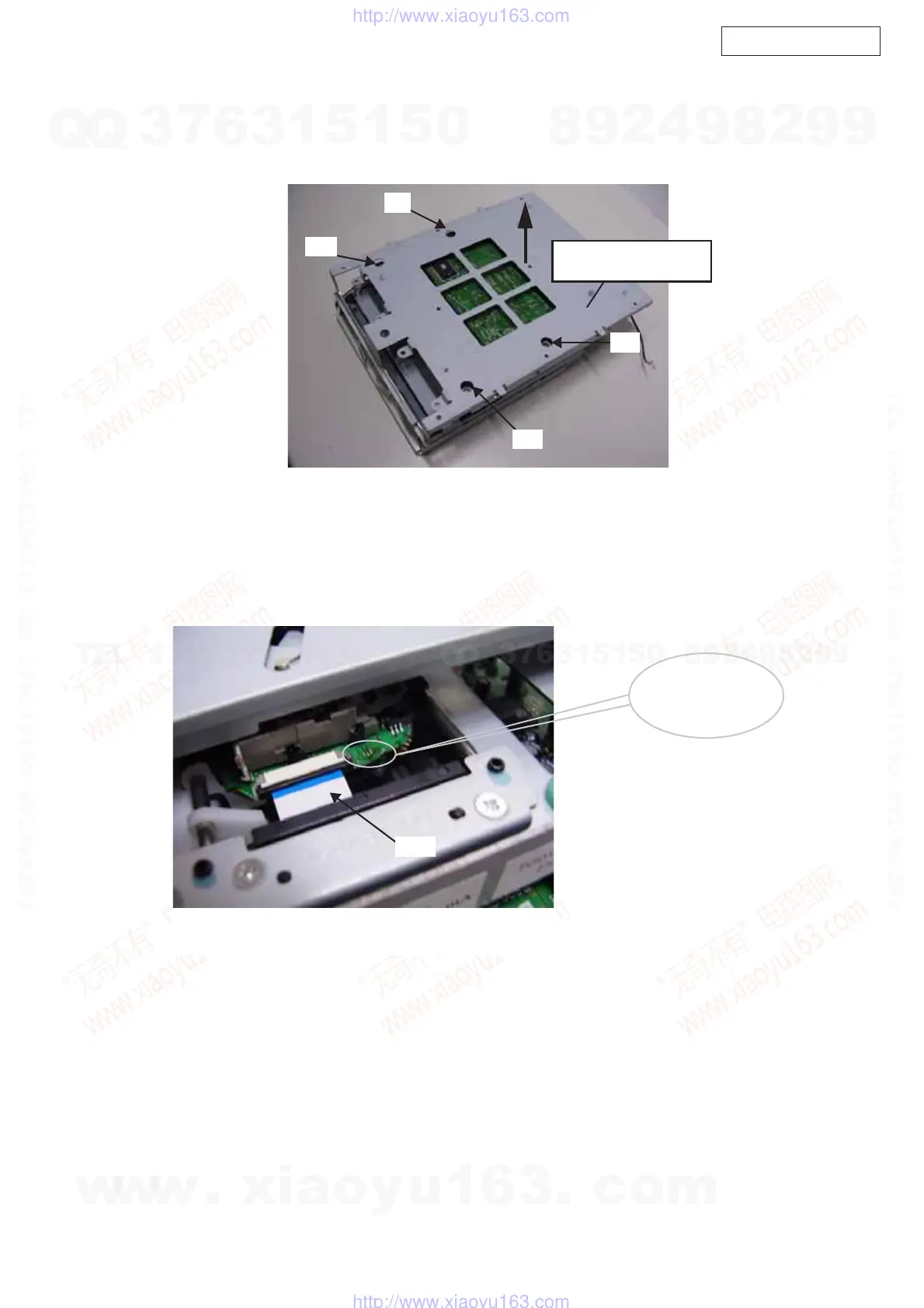

4. 1U-3851 CD ROM UNIT(S-52)
(1) Remove each 2 screws D and E, then detach the MAIN
CHASSIS and the MECHA BRACKET in the direction of
the arrow.
(2) Move the Pick Up to the rear side and solder the short-
circuit, then disconnect the FFC.
E
D
D
E
MAIN CHASSIS
& MECHA BRACKET
FFC
Solder to short-circuit
半田ショート
