S-52/S-52DAB/S-32

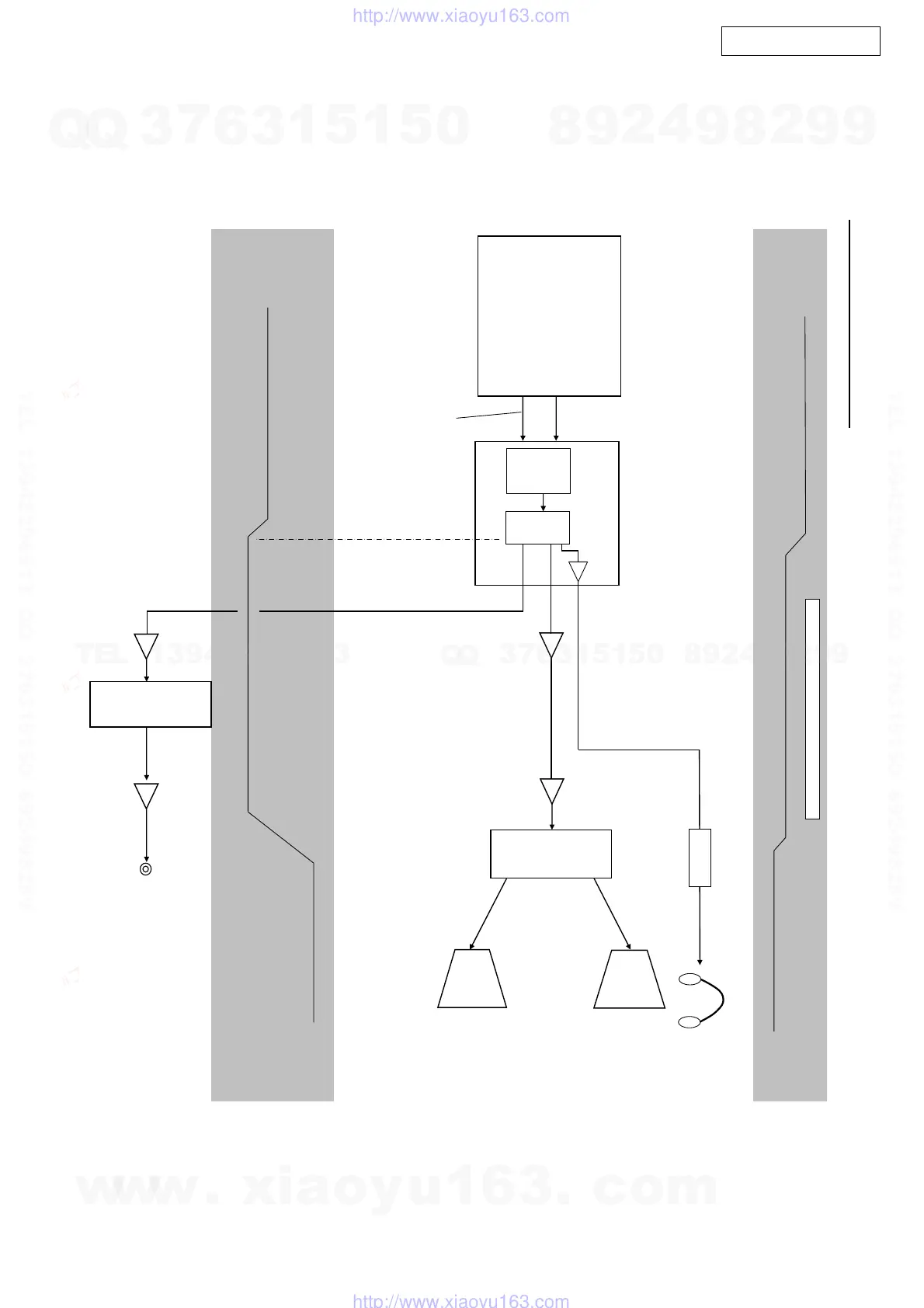

LEVEL DIAGRAM
DENON S52/ S32 LEVEL DIAGRAM
1kHz 0dB H/P
UT
-1dB 730mVrms
-0.41 dB
1kHz/33ohm
H/P LEVEL Diagram
HEADPHONE
L CHANNEL SPEAKER
LFE MONO OUTPUT R CHANNEL SPEAKER
SP OUT
2.0Vrms
(1w/4 ohm)
*max 10W/4ohm
+30dB
-20dB FSR
-30dB FSR
SP OUT LEVEL Diagram
subwoofer pre ou
*ONLY FOR EXTERNAL OPTION US
NOT REQUIRE BASS XT IMPLEMENTATIO
DSP BLACK FIN BF532
ATAPI CONTROL
WMA MP3 AAC FLAG
WAV DECODE
AUDYSSEY
DYNAMIC EQ. BASS XT
SPATIAL EQ.
CODEC & ELEC.VOL
FUNCTION AK4683EQ
AMP TOSHIBA
TA8216H
ELECTRICAL
VOLUME
TBD
MVC
(VOLUME)
DAC
HPF
H/P DAC Fullscale output = 859mVrms = 2.43Vp-p
