17
S-52/S-52DAB/S-32
6A. 1U-3854STANDBYTRANSUNIT
(JP/E3/E2)
(1) 113 のねじ 1 本と 105 のねじ１本をはずす。
(2) STANDBYTRANSUNIT の [CX051] から 5PPH-PHCON.
CORD をはずす。
(3) STANDBYTRANSUNIT の [CX121] から 2Pワイヤーをは
ずす。
(4) STANDBYTRANSUNIT を矢印方向にはずす。

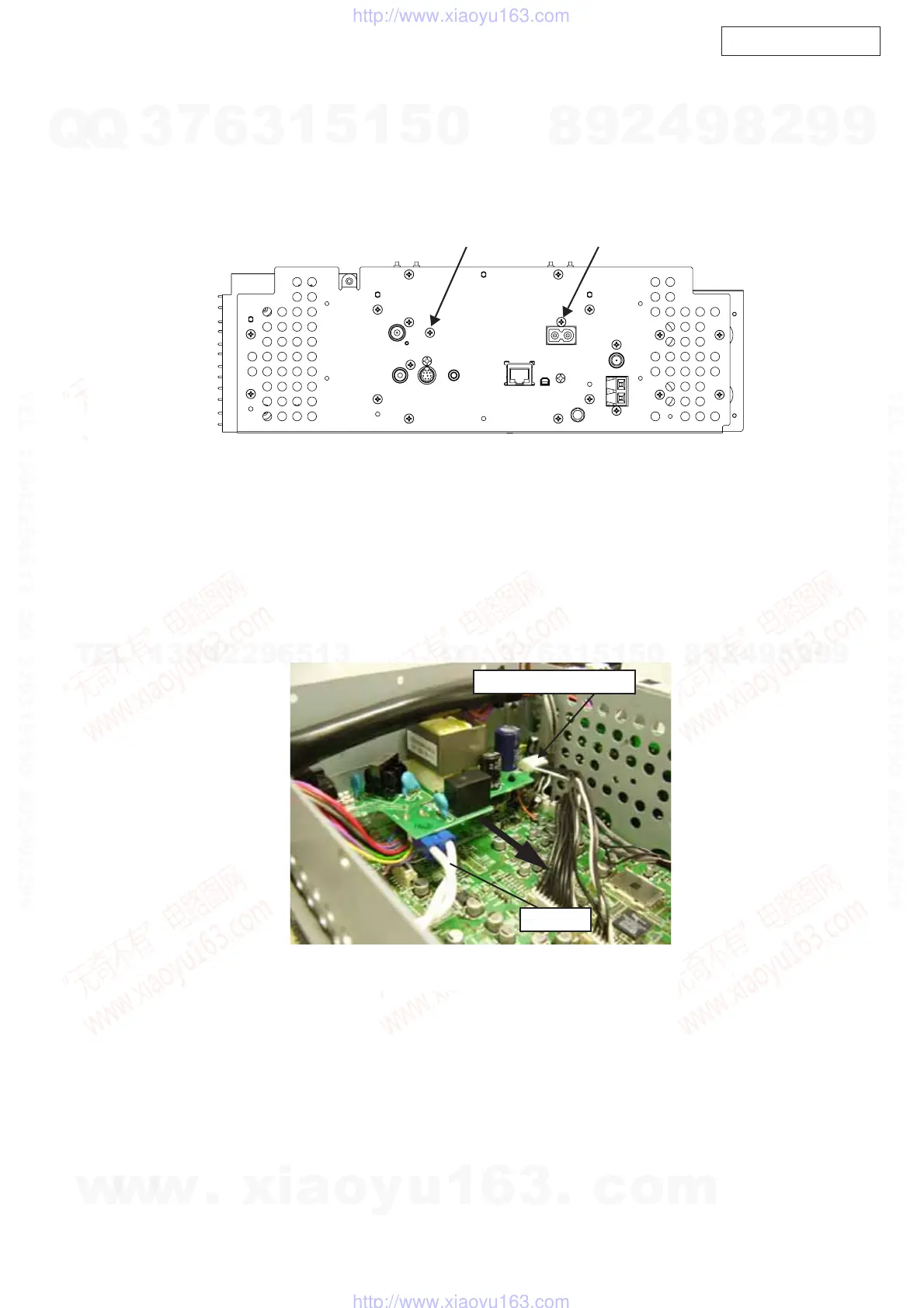

6A. 1U-3854 STANDBY TRANS UNIT
(for JP/E3/E2)
(1) Remove the 1 screw 113 and the 1 screw 105 on the rear.
(2) Disconnect the 5P PH-PH CON.CORD from the [CX051]
on the STANDBY TRANS UNIT.
(3) Disconnect the 2P Wire from the [CX121] on the STAND-
BY TRANS UNIT.
(4) Detach the STANDBY TRANS UNIT in the direction of
the arrow.
105 113
2P WIRE
5P PH-PH CON. CORD
