Denon S-52 DAB - Waveforms

93
S-52/S-52DAB/S-32

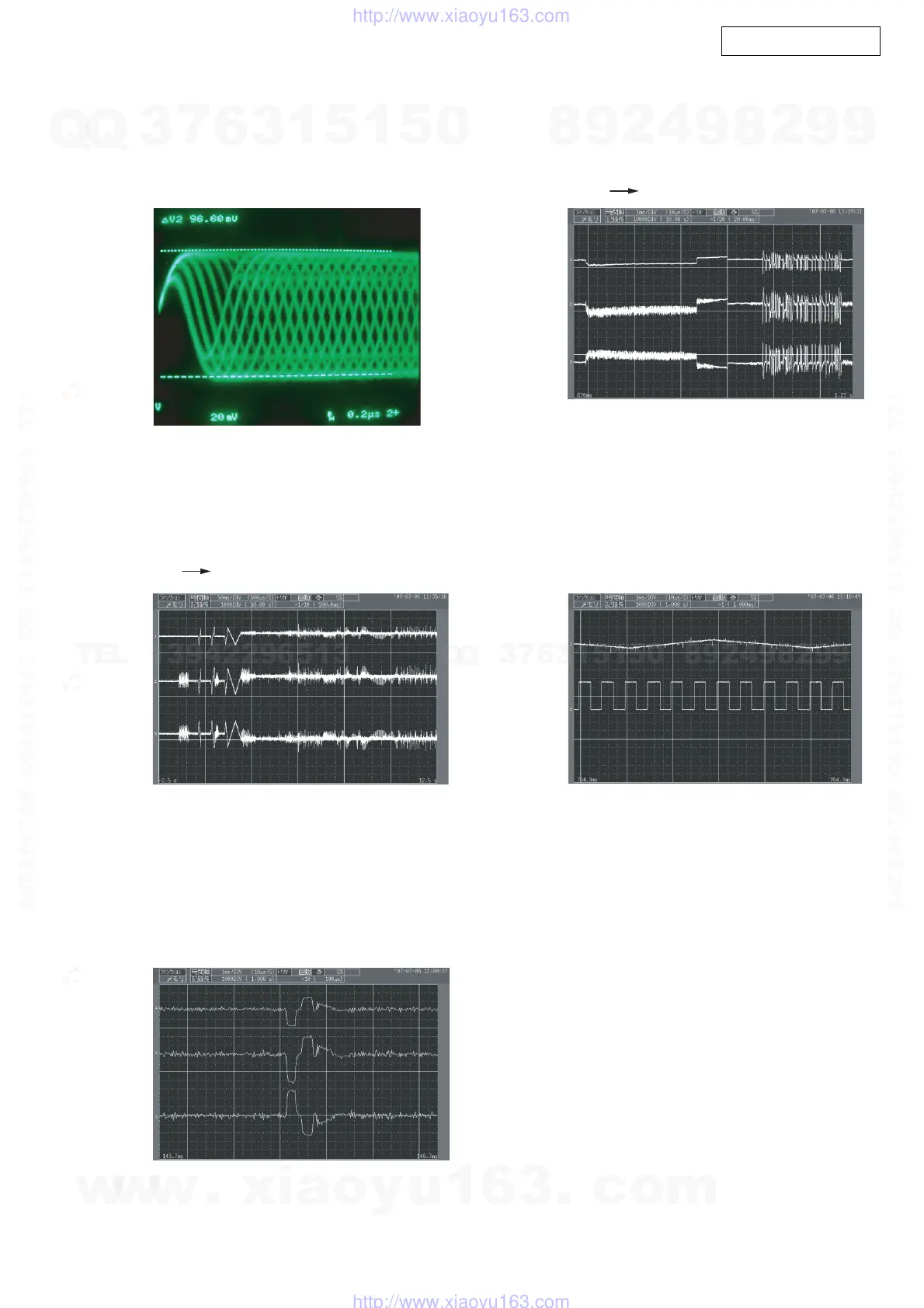

WAVEFORMS
IU-3851 FEP Unit
CD PLAY Disc : TCD-784
RF waveform
① ARF
② NARF
RANGE .2 v .2 Ǵsec
CD LOADING PLAY
③ FODRV
④ F+
⑤ F-
RANGE ④ .5 v 0.5 sec
⑤ .5 v
③ .5 v
SEARCH (INNER OUTER)
⑨ TRSDRV
⑩ FM+
⑪ FM-
RANGE
⑩ 1 v 20 msec
⑪ 1v
⑨ 1v
CD PLAY
⑥ TRDRV
⑦ T+
⑧ T-
RANGE ⑦ .2 v 100 Ǵsec
⑧ .2 v
⑥ .2 v
CD PLAY (INNER)
⑫
SPDRV
⑬ FG
RANGE
⑫ .1 v 1 msec
⑬ 1v
