DENSITY Basic - Page 10

9
The ON/OFF output of this alarm panel is an open relay when panel is OFF that continuosly keep close for all the time
the alarm panel is monitoring.
The alarm output of the panell is an open relay that close when alarm condition is detected.

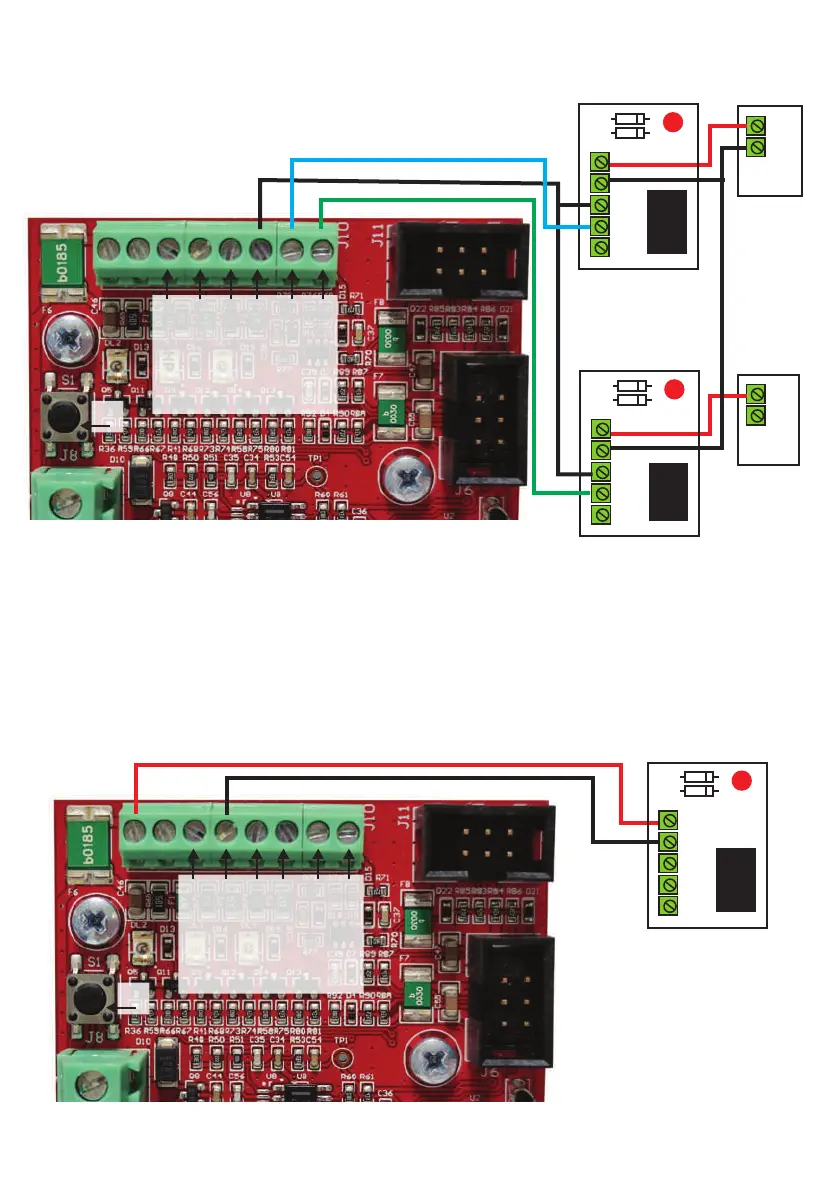

B - Density
®
Basic inputs connected with a clean contact (relays) alarm panel outputs
C - Wiring example of Density® Basic outputs to drive leds and/or relays
TRIG OUT
+
-
ARM OUT
+
-
TRIG ARM
LED
RELAY TRIG
+
-
CO
NO
NC
LED
RELAY ARM
+
-
CO
NO
NC
ARD/SHP EMPTY FAULT GDN
S1
81
TRIG ARM ARD/SHP EMPTY FAULT GND
LED
+
-
CO
NO
NC
S1
81
TRIG ARM ARD/SHP EMPTY FAULT GND
