7. Electrical power supply
The 230V input provides primary power to the heat exchanger and, by the use of a switching power supply, to the
electronic board and the fluid pump. The heat exchanger’s working time without mains power ensures proper
functioning for a certain period of time, usually around one hour, even in complete absence of mains power.
The functioning of the electronic board and the pneumatic system is guaranteed by the 12V 1.2A backup battery
(not included). Although the heating element is of 300W, the average power consumption is between 30W and 50W
on normal operation.
Do not use inverter or UPS if you are not sure that are designed to generate a pure sine wave.
Square wave or rebuilt sine wave are not suitable for the device. Please ask to the UPS manufacturer
the correspondence of such feature before proceeding with mains power connection.
- The max current to be considered for the device is 2A
- The connection to the 230V or 120V mains power must be performed by a qualified technician.
- Connect the equipment to the mains power only when installation is completed.
- It is necessary to connect the ground terminal.
- The system must be connected to the mains through an automatic switch (automatic switch, curie C,
with Ih= 10 A and Idif= 30 mA,...) with breaching capacity based on the assumed fault current of the fogging
system in the sampling point.
IF FOR ANY EVENIENCE IT IS NEEDED TO REPLACE THE FUSE, USE ONLY FUSE WITH THE SAME SPECIFICATIONS
AS THE ONE INSTALLED.
EXAMPLE FOR 120v/230v Model: Timed Fuse 250v H Type (1500A) CERAMIC BODY FILLED WITH QUARTZ,
REF. STD. EN60127-2-3/DIN41660 6,3AH (EXAMPLE OMEGA GT520263)
PLEASE NOTE THAT, AS ALL POWERED EQUIPMENT FROM THE ELECTRICITY GRID REQUIRING INSTALLATION,
IT IS SUBJECT TO COMPLIANCE WITH RULES OF THE COUNTRY IN WHICH IT IS INSTALLED

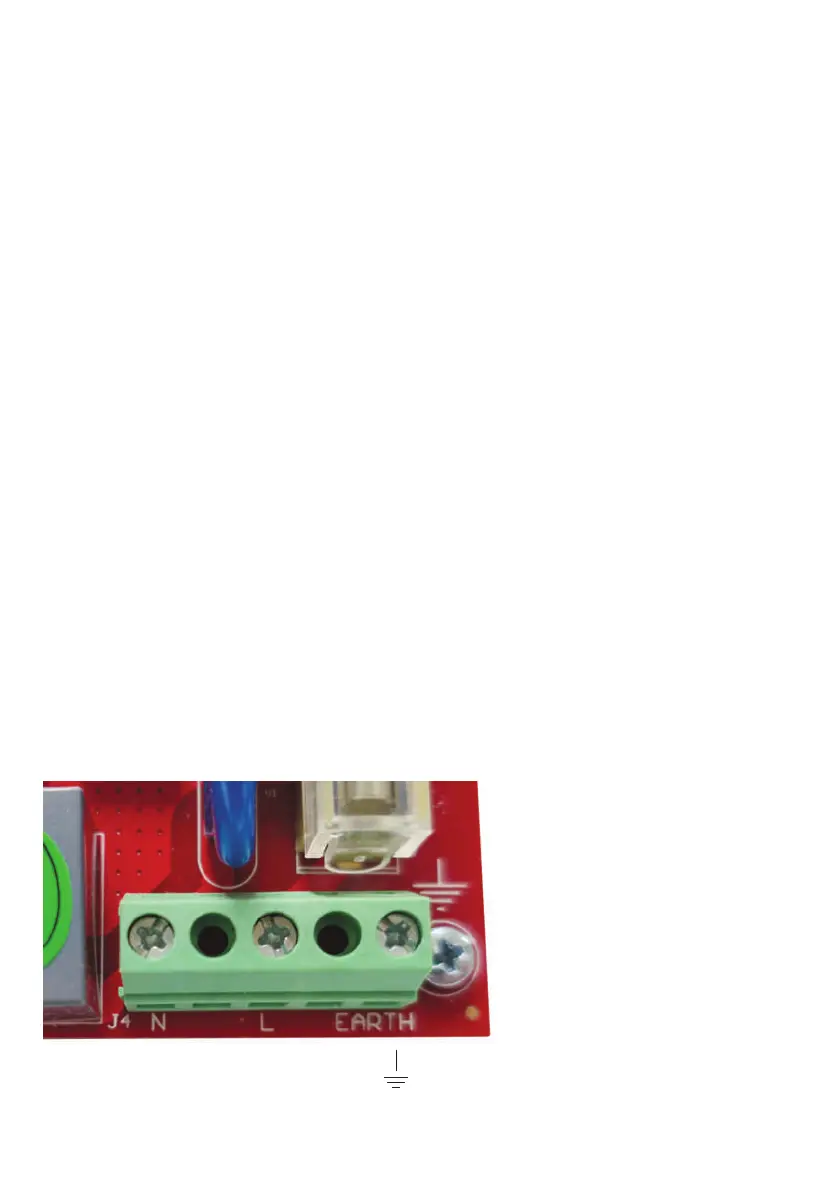

While connecting the unit to the mains
power, it is recommended to carefully care
the connections and the screwing of the
terminal block screws.
Disconnecting or modifying the ground
cable voids the warranty and can generate
faults related to the temperature control.
Note: always check the unit AC voltage is
corresponding to the mains power available
in your country.
Dierent models are available for 120v AC
and 230v AC mains power.
NEVER connect the unit to mains power if
voltage doesn’t match.
N L
