DENSITY Basic - Power Supply Connection; Input;Output Description and Connections

6

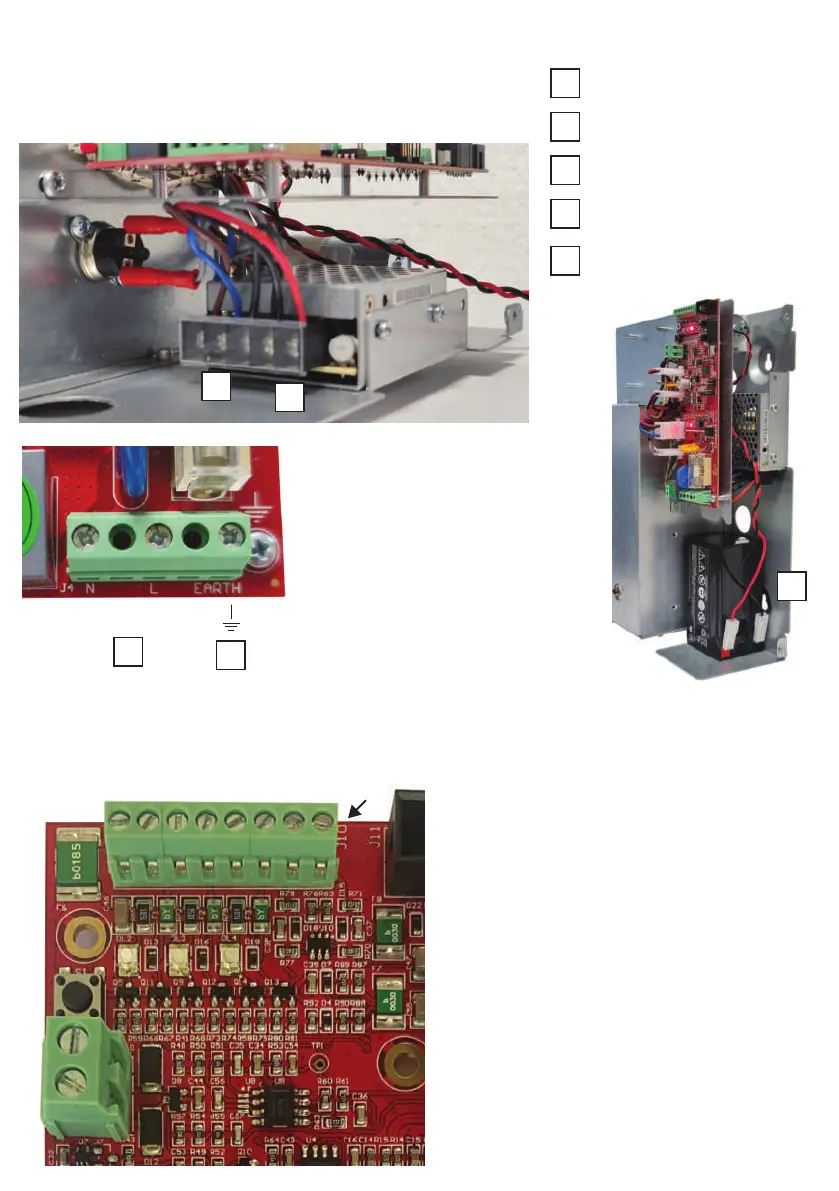

8. Power supply connection
9. Description of input and output connections
- The battery installation is essential for
the safe use of the device, it is monitored
and recharged by the board’s circuit.
- The housing for the 1.2A 12V lead-acid
battery is lodged on right side of the
exchanger.
- To gain access to the battery it is
necessary to remove the plastic front
panel and metal side battery holder
screws (horizontal and ceiling installation).
12V Power supply connection
230V Power supply connection
230V Mains power
Ground connection
Battery slot (battery not included)
1
2
3
4
5
5
1
2
3
4
N L
Connection PIN description
DC12V Power supply OUTPUT
1 + DC 12V Output (max 200 mA)
2 - 0V DC ground connected
OUTPUTS
3 ARD / SHP (ARmeD status/ SHoot in Progress status)
4 EMPTY
5 ERROR
INPUTS
6 - GND
7 ARM Arming input
8 TRIG Shooting input
Note: both inputs accept clean contacts
toward GND.
1 2 3 4 5 6 7 8
J10
As for the fluid bag (500ml) in Density Basic model backup battery is NOT
included and should be provided by the installer.
Reference model: FIAMM FG 20121 A
