7-1. Connecting to the vehicle
Connect the main unit directly to the diagnosis connector on the vehicle side.

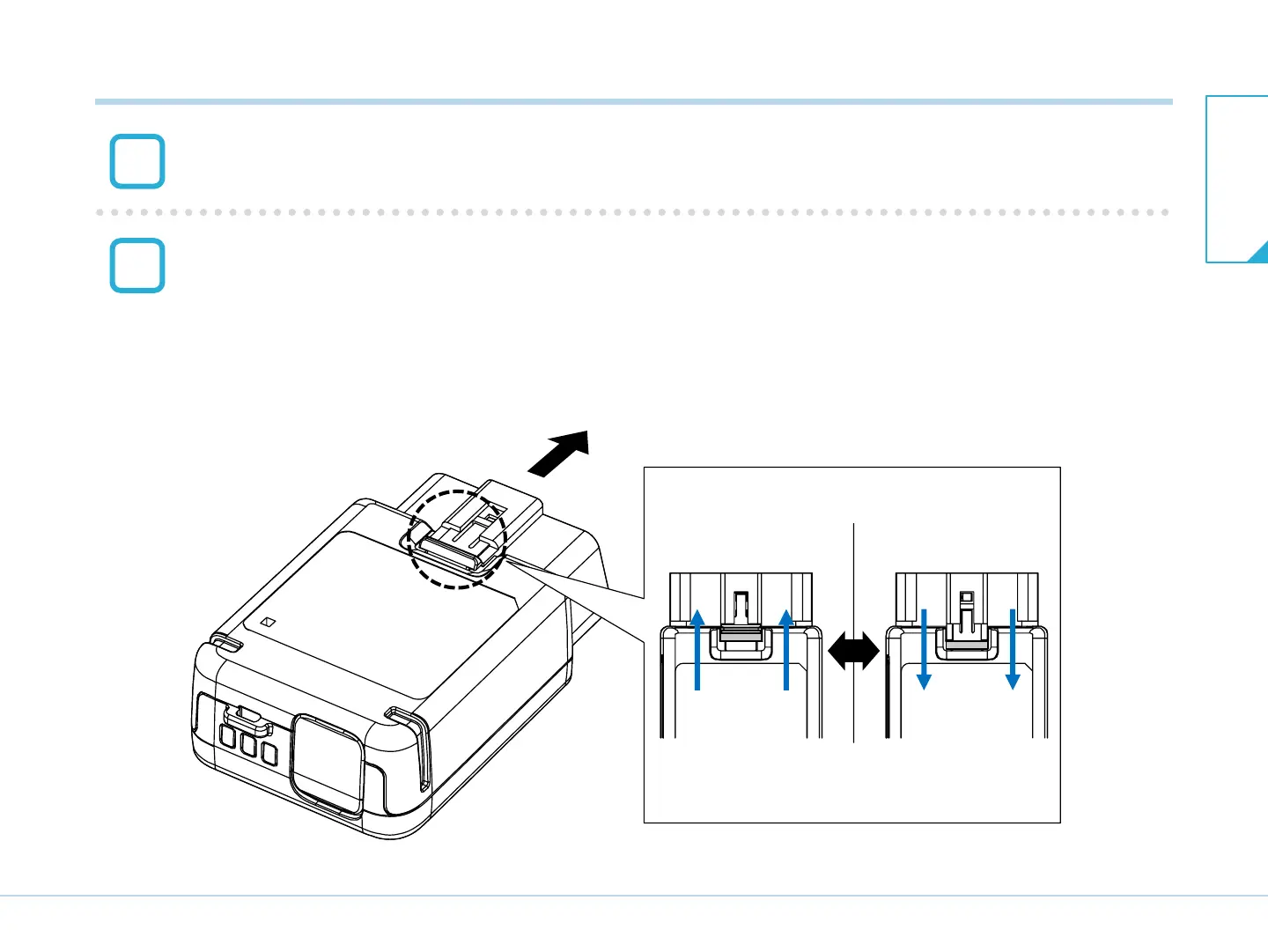

Connected to vehicle side diagnosis connector.
Connector lock status
Connector locked Connector unlocked
T03027J
1
2
After connecting, the main unit will power turn ON if power is supplied from the
vehicle.
Check the position of the diagnosis connector of the vehicle side in the repair
manual of the vehicle.
