Parameter setting: input hexadecimal orders (0~9
and A~F). Two characters constitute one effective
order, and if there is only one character, a 0 should be
added before such bit, such as 03, 0A, etc. Bland
space will be added after each two characters for the
convenience of reading automatically by the interface.
The blank spaces will be filtered off before the orders
are transmitted, so the transmitted orders consist of
successive hexadecimal characters.

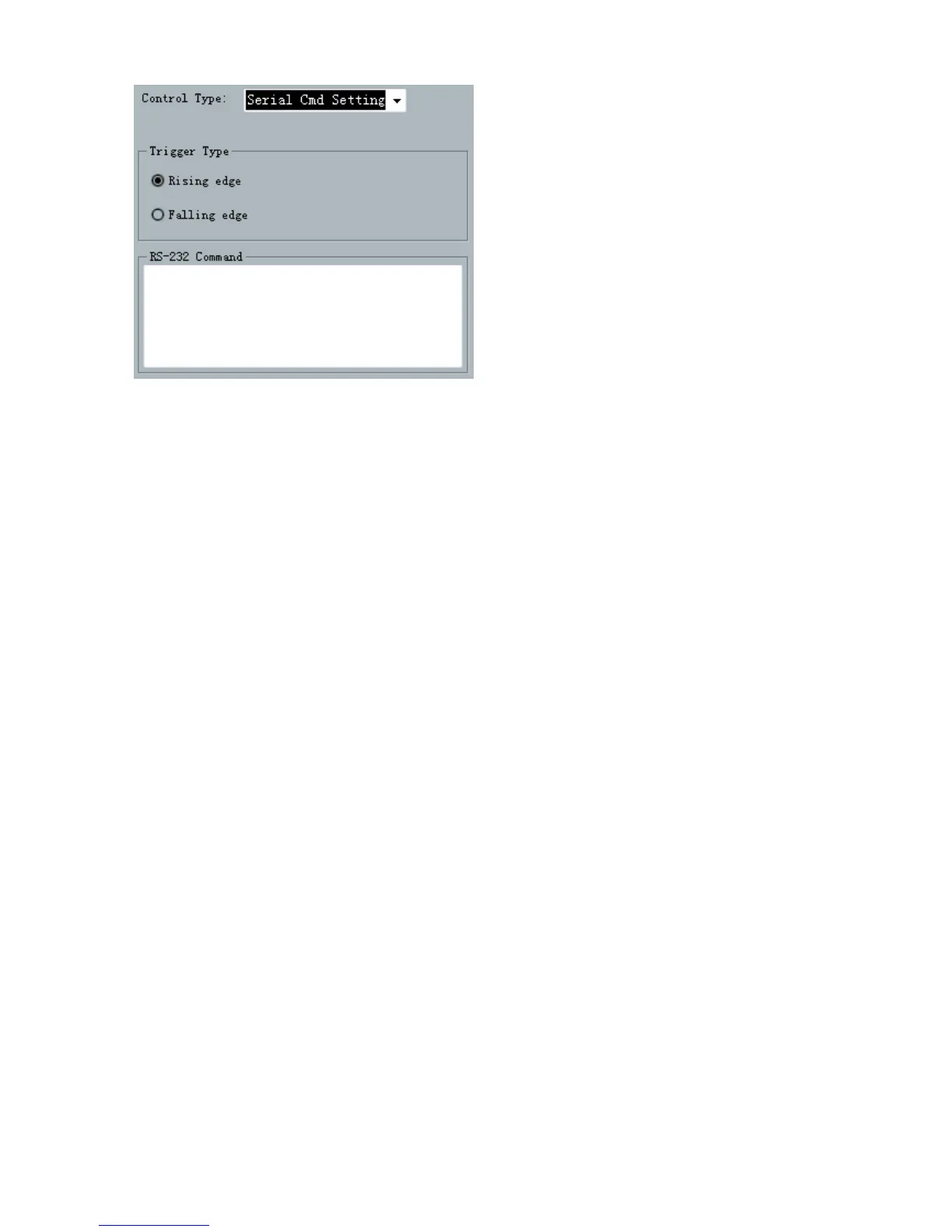

As is shown in the above chart, the system will
perform the hexadecimal order when the level of
GPIO input channel 2is changed from low to high.
Notes:
the input characters must hexadecimal
characters, otherwise the order will not be approved,
and such transmission will fail.
