17.2 Spare parts list for S32-25-110 and S50-32-135N
1 Pump casing
3 Pipe plug
5 Impeller
10 Mech. shaft seal
11 Water deflector
14 Support disc
15 Bearing
16 Sunk Key
17 Shaft
18 Shaft sealing cover
21 Gasket
22 Allen Screw
23 Inlet
24 Allen screw
25 Non-return flap
26 Valve plate
28 Sealing washer
29 O-ring
30 Snap ring
31 Oil sealing ring
75 Drain plug
76 Relief valve
80 Coupling pump half
81 Point screw
82 Screw
83 Rubber ring
84 Coupling motor half
85 Motor bracket
86 Coupling guard
87 Screw
88 Intermediate flange
89 Allen screw
90 Screw

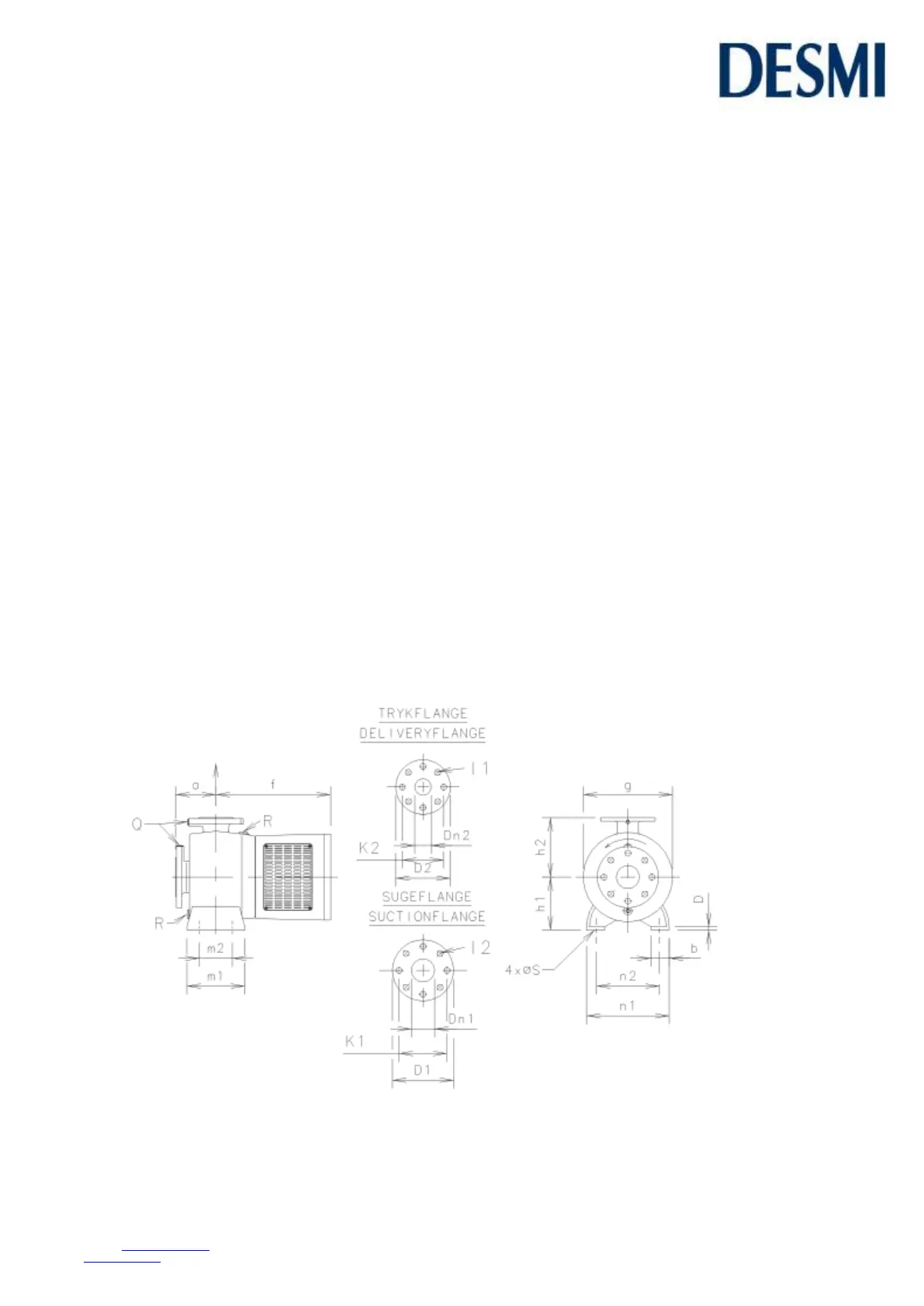

18. DIMENSIONAL SKETCH
See also table on the next page
