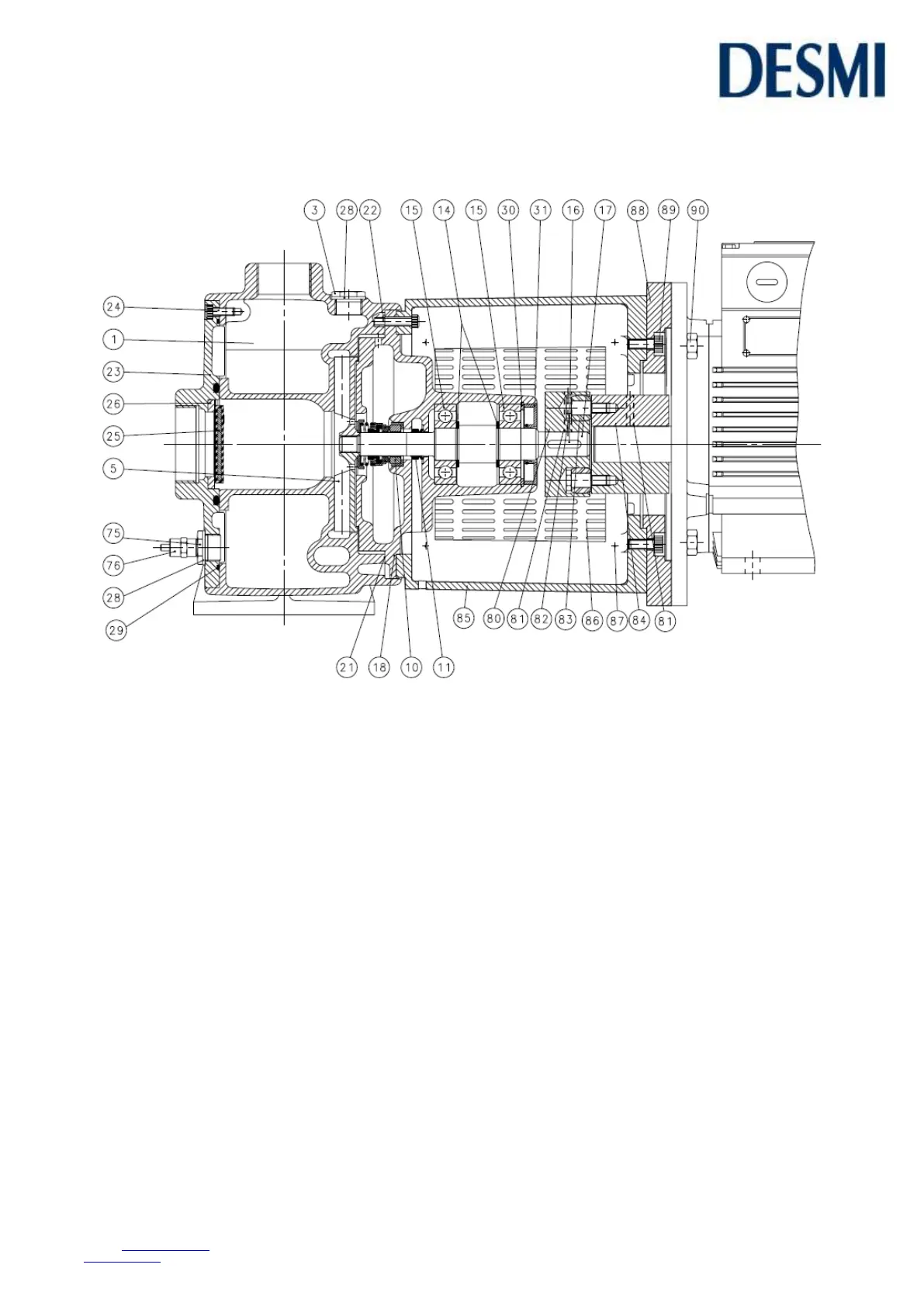

16.2 Assembly drawing for S32-25-110 and S50-32-135N
17. SPARE PARTS LISTS
17.1 Spare parts list for pumps bigger than S32-25-110 and S50-32-135N
1 Pump casing 15 Bearing cover 29 O-ring
2 Pipe plug 16 Allen screw 70 Set screw
3 Pipe plug 17 Shaft 71 Allen screw
4 Sealing ring 18 Shaft seal cover 72 Intermediate flange
5 Impeller 19 Coupling 73 Pointed screw
6 Nut 20 Motor bracket 75 Drain plug
7 Spring collar 21 Gasket 76 Relief valve
8 Washer 22 Allen screw 77 INSEX screw
9 Sunk key 23 Inlet 78 Sunk key
10 Mech. shaft seal 24 Allen screw
11 Water deflector 25 Non-return flap
12 Ring lock 26 Valve plate
13 Ball bearing 27 Sealing washer
14 Support disc 28 Sealing washer
