Det-Tronics UD20 - Page 20

4.1 95-862018

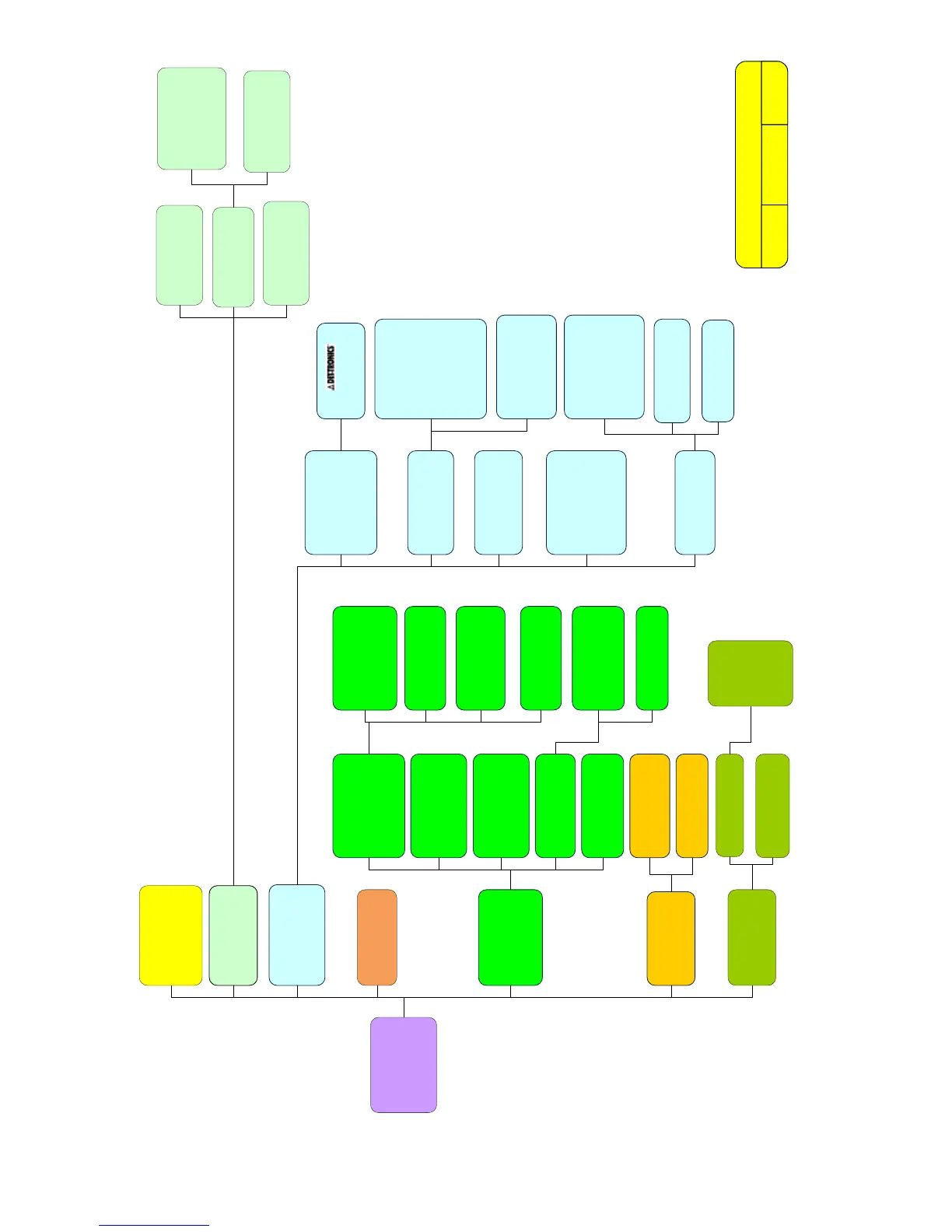

MAIN MENU
PROCESS VARS  DISPLAY STATUS  DEVICE STATUS  DISPLAY SETUP  DEVICE SETUP  DEVICE CAL  DEVICE TEST 
PROCESS VARS
GAS NAME XXXX
GAS VALUE X.XX
ANALOG INPUT XX.XX MA
URV X.XX LRV X.XX FAULT Y/N
March 1, 2013
UD20
PIRECL
Detector Electronics
1.26
D/A TRIM
ZERO TRIM GAIN TRIM
DEVICE TEST
SELF TEST RESPONSE TEST LOOP TEST 
D/A TRIM 
LOOP TEST
SET 4-20 MA 
SET 4-20 MA
3.5 MA
4 MA 6 MA 8 MA 10 MA 12 MA 14 MA 16 MA 18 MA 20 MA
DISPLAY STATUS
DISPLAY INFO  FAULT/STATUS  DEBUG MENU 
DEBUG MENU
HART ERRORS XXXXX LCD TEST ANALOG INPUT XX.XX MA
FAULT/STATUS
OP MODE XXXXX
FAULT Y/N STATUS Y/N
DISPLAY INFO
F/W REV XX.XX SERIAL NUMBER XXXX TEMPERATURE XX.XX C
FACTORY CONFIG
FAULT
ADC FAULT ON/OFF ANALOG CODE FLT ON/OFF FLASH FAULT ON/OFF RAM FAULT ON/OFF WDT FAULT ON/OFF
3V FAULT ON/OFF
INPUT LOOP FAULT ON/OFF
STATUS
ANY FAULT ON/OFF CAL ACTIVE ON/OFF WARM UP ON/OFF INPUT HART ON/OFF
SENSOR INFO
ACTIVE XX.XX
REFERENCE XX.XX
RATIO XX.XX
ABSORPTION XX.XX
TEMPERATURE XX.XXC
VOL % XX.XX
USL XX.XX
LSL XX.XX
SPAN FACTOR XX.XX
FAULT/STATUS
OP MODE XXXXX
CAL STATE XXXXX FAULT Y/N STATUS Y/N
GENERAL INFO
MANUFACTURER  MODEL ECLIPSE TAG XXXXX DESCRIPTOR XXXXX DATE DD/MMM/YYYY MESSAGE XXXXX FINAL ASSY NUM XXXXX
DEVICE ID XXXXX
HISTORY
DEVICE HISTORY  CALIBRATION LOG  EVENT LOG 
DEVICE INFO
SERIAL NUMBER XXXXX UNIVERSAL REV XXXXX FLD DEV REV XXXXX S/W REV XXXXX
DEVICE STATUS
GENERAL INFO  FAULT/STATUS  DEVICE INFO  SENSOR INFO  HISTORY 
EVENT LOG
EVENT XXXXX HOURS XXXXX
CALIBRATION LOG
CAL ID XXXXX HOURS XXXXX
STATUS
CAL ACTIVE ON/OFF WARM UP ON/OFF LOW ALARM ON/OFF
HIGH ALARM ON/OFF HART SELF TEST ON/OFF CHANGE CONFIG ON/OFF
FAULT
CAL FAULT ON/OFF DIRTY OPTICS ON/OFF LAMP FAULT ON/OFF START CAL FAULT ON/OFF EE 1 FAULT ON/OFF EE 2 FAULT ON/OFF REF ADC SAT ON/OFF ACTIVE ADC SAT ON/OFF 24V FAULT ON/OFF
12V FAULT ON/OFF
5V FAULT ON/OFF
ZERO DRIFT FAULT ON/OFF
FLASH CRC FAULT ON/OFF RAM FAULT ON/OFF
DEVICE HISTORY
RUNNING HOURS XXXXX MAX TEMP XX.XX C
MAX TEMP TIME XXXX
MIN TEMP XX.XX C
MIN TEMP TIME XXXX
MAX RESET TEMP XX.XX C MAX RESET TIME XXXX
MIN RESET TEMP XX.XX C MIN RESET TIME XXXX
6901 WEST 110TH STREET MINNEAPOLIS, MN 55438 USA
DEVICE SETUP
DEVICE OPTION  ALARM SETTING  HART OPTION  RS485  WRITE PROTECT 
HART OPTION
TAG XXXXX DESCRIPTOR XXXXX DATE DD/MMM/YYYY MESSAGE XXXXX FINAL ASSY NUM XXXXX
DEVICE OPTION
GAS TYPE 
UNIT OF MEASURE  URV XX.XX
LRV XX.XX
USL XX.XX
LSL XX.XX
ANALOG CODE VAL  ANALOG FLT CODE 
RS485
BAUD RATE  PARITY  POLL ADDRESS XXX
BAUD RATE
1200 2400 4800 9600 19.2K
PARITY
NONE EVEN ODD
ALARM SETTING
RST LATCH ALARMS HGH ALARM LEVEL XX.XX
HGH ALARM LATCH Y/N LOW ALARM LEVEL XX.XX
LOW ALARM LATCH Y/N
UNIT OF MEASURE
%LFL PPM VOL %
ANALOG CODE VAL
WARM UP XX.XX
BLOCKED OPTIC XX.XX
CALIBRATION XX.XX
FAULT XX.XX
GAS TYPE
METHANE ETHANE PROPANE ETHYLENE PROPYLENE BUTANE SPECIAL
ANALOG FAULT CODE
ECLIPSE PIR9400 USER DEFINED
WRITE PROTECT
CHANGE STATE CHANGE PASSWORD WRITE PROTECT ENABLED
DEVICE CAL
CAL GAS CONC XX.XX
CAL GAS TYPE  CALIBRATION  CAL DATE DD/MMM/YYYY
CALIBRATION
EXECUTE ABORT
CAL GAS TYPE
SAME AS MEASURE GAS METHANE PROPANE
DISPLAY SETUP
CONTRAST CONTROL INPUT LOOP CAL
