8525-0374-0M Rev A y Physician’s Scale Owner’s Manual
4
SCALE ASSEMBLY, CONT.

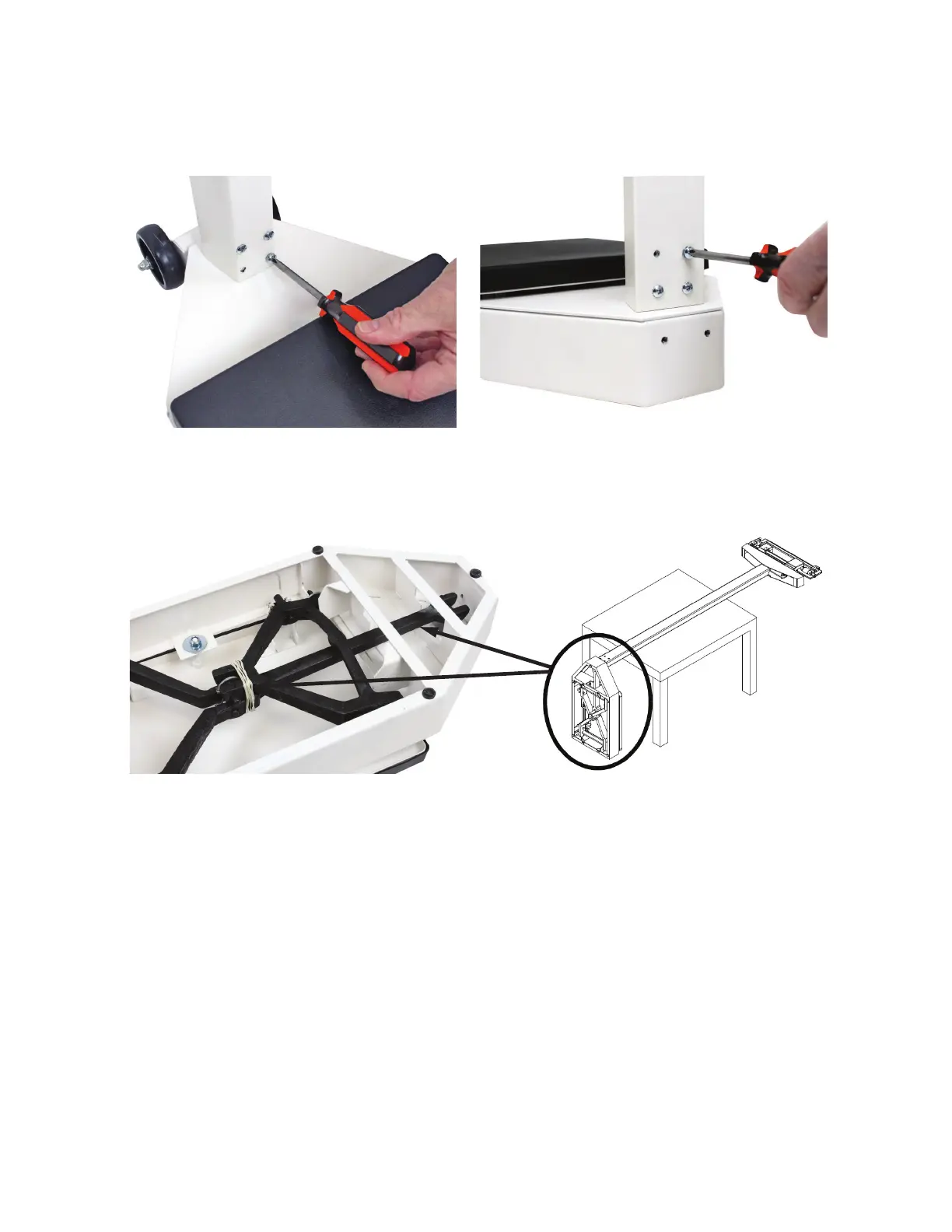

4. Using a Phillips screwdriver, install the eight screws and washers to secure the column to
the scale base as shown in Figure 3.
Figure 3. - Install eight screws and washers to secure column to scale base
5. Lay the scale on a table. Remove and discard the shipping tie wrap wires on the
underside of the scale base as shown in Figure 4.
Figure 4. - Lay scale on table to access bottom of scale base
