Detector PC2003 - Adjusting Measurement Tolerances

Programming Manual
PC 2003 Amplifier English
Page 7/14
PROPC2003EN – Index A
2.2 Adjusting the tolerances
The tolerances limits define the range of acceptable readings, beyond which the
amplifier is going to react by triggering relays to their fault states. These
tolerances are adjusted with respect to a reference, which must be set earlier.

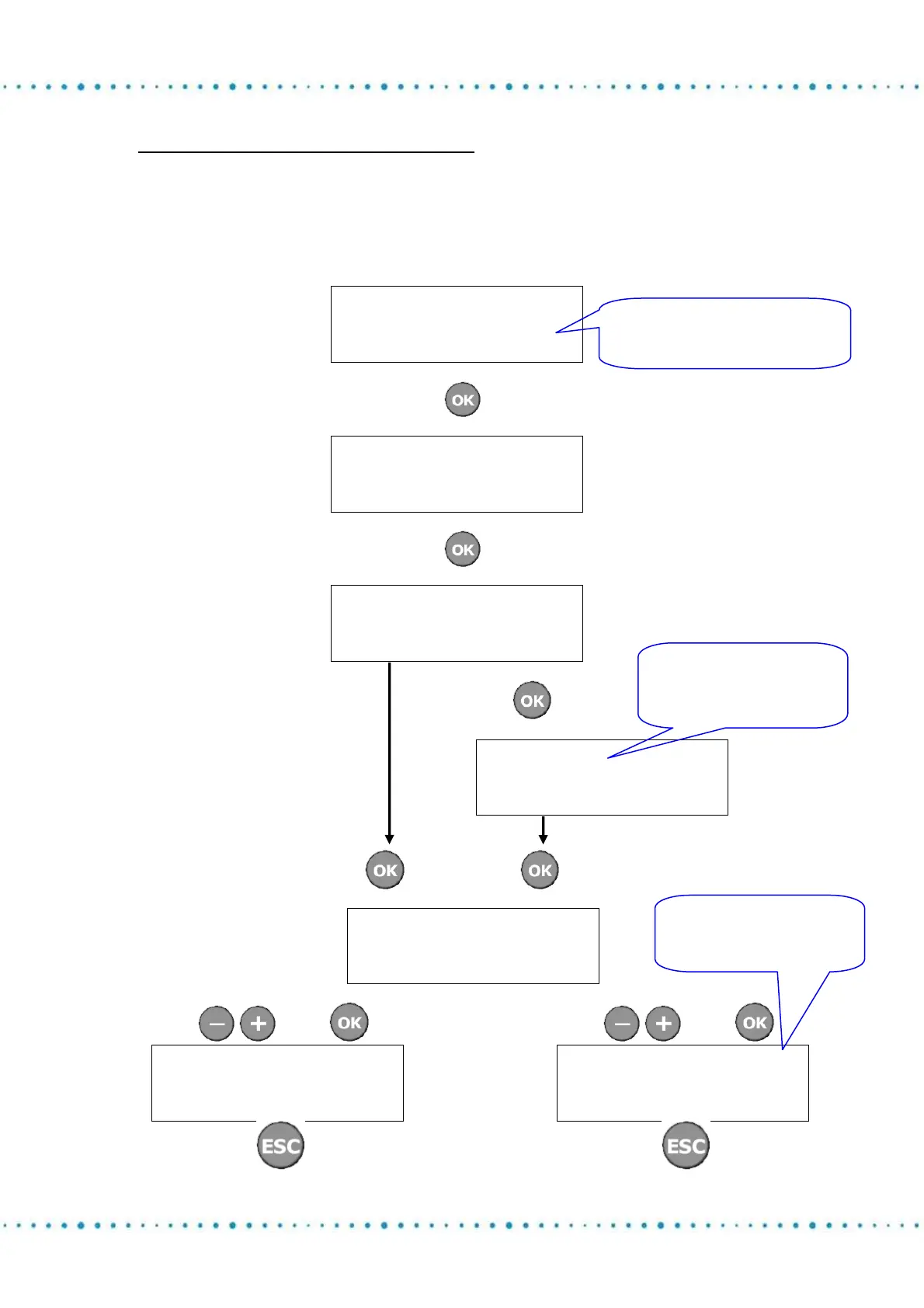

CHAN 1 : +0.000mm
CHAN 2 : +0.000mm
V
V
-> PART SETUP
OPTIONS
PARAMETERS
DISPLAYS
V
V
-> TOLERANCES
REFERENCE
STATISTICS
V
V
V V
TOLERANCES CHAN1
+ 0.050mm
- 0.050mm
VALIDATE BY OK
TOLERANCES :
-> CHAN 1
CHAN 2
This page appears only
if you have a PC2003B
(dual channel) device
CHAN 2
appears only if you
have a PC2003B (dual
channel) device.
V
then
-> TOLERANCES
REFERENCE
STATISTICS
X2
V
then
TOLERANCES CHAN1
-> CHANNEL 1
CHANNEL 2
X3
This page appears only
if you have a PC2003B
(dual channel) device
