2. PARAMETER SETTINGS
2.1 Calibrating the reference
Calibrating the reference allows the calibration of the sensor to a reference part
on your machine. Calibration must be done only after the amplifier has been
correctly wired and your machine correctly adjusted so that the dimension to be
measured is a mean and stable dimension (without machine drift). By default, the
sensor is delivered to you preloaded in the probe. However, if the internal sensor
was disassembled from the probe for replacement or a cleaning, the sensor has
to be preloaded and tare reset in the probe. This procedure is detailed below in
subsection Adjusting sensor preloading in Integration and mechanical
adjustment manual

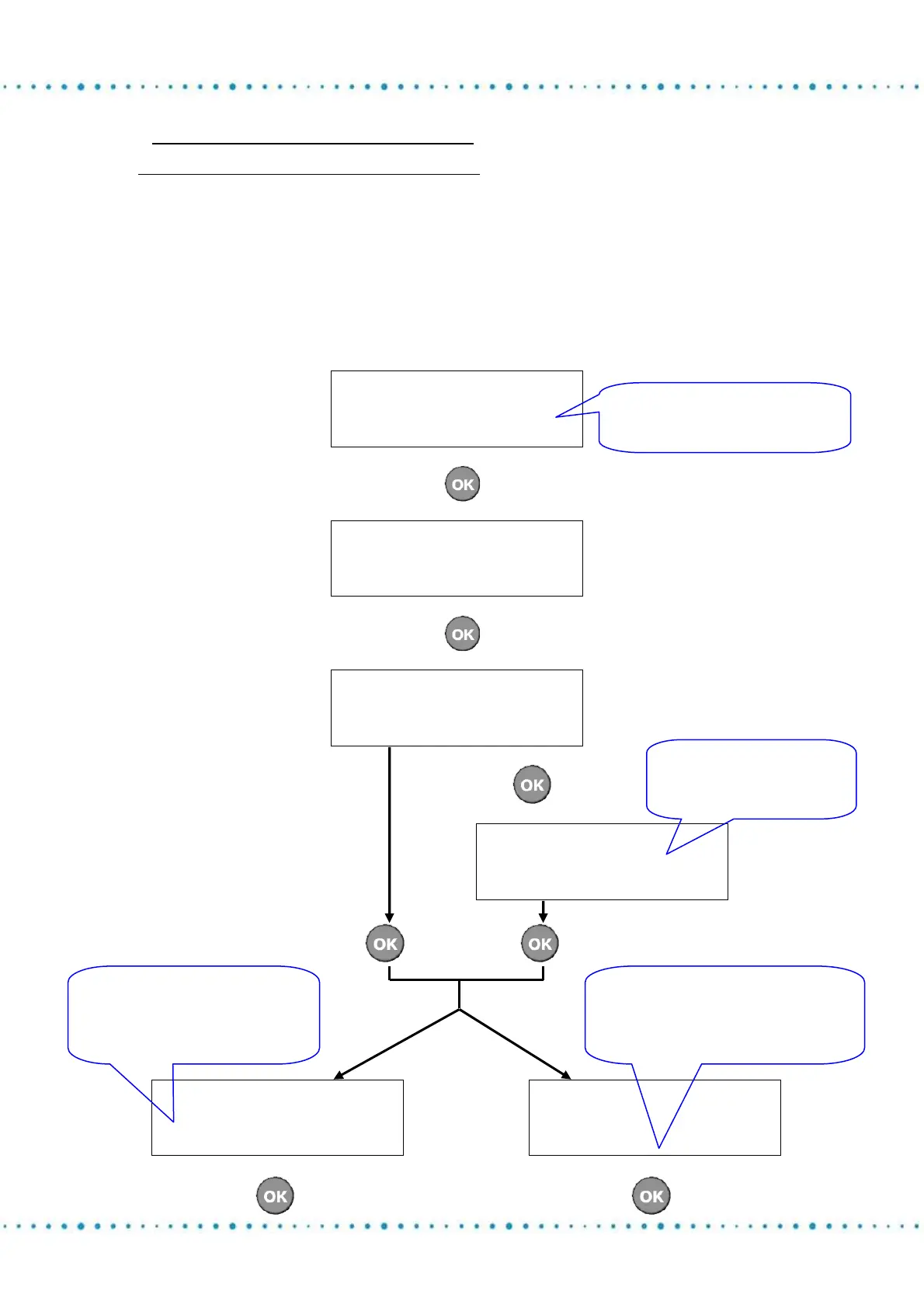

CHAN 1 : +0.000mm
CHAN 2 : +0.000mm
V
V
-> PART SETUP
OPTIONS
PARAMETERS
DISPLAYS
V
V
TOLERANCES
-> REFERENCE
STATISTICS
V
V
REFERENCE :
-> CHANNEL 1
CHANNEL 2
CHAN 2
appears only if you
have a PC2003B (dual
channel) device.
REFERENCE ADJUST
CHANNEL 1 :
-> MANUAL
AUTOMATIC
V
REFERENCE ADJUST
CHANNEL 1 :
MANUAL
-> AUTOMATIC
V
Calibration on a single
reference part. Is used the first
time to adjust the part reading
on the sensor.
Calibration on the average of a
parts sample. Is used after the
adjustment of the part reading on
the sensor.
This page appears only
if you have a PC2003B
(dual channel) device.
