3. CONTROL FUNCTIONS
3.1 Masking a measurement
This function allows masking of a measurement during a material feed operation,
isolating the fed part (short) without shutting down the machine.
The masking of a measurement can be configured:
- Either inactive (no masking) ;
- Or at N closures of the VALID input (N between 1 and 25) after the MASKING
input is closed.
For a masked measurement, the corresponding channel indicates ″VALUE
MASKED″ in addition to the display of the measured value; the indicator
corresponding to the defect, if any, remains off and the outputs remain inactive.

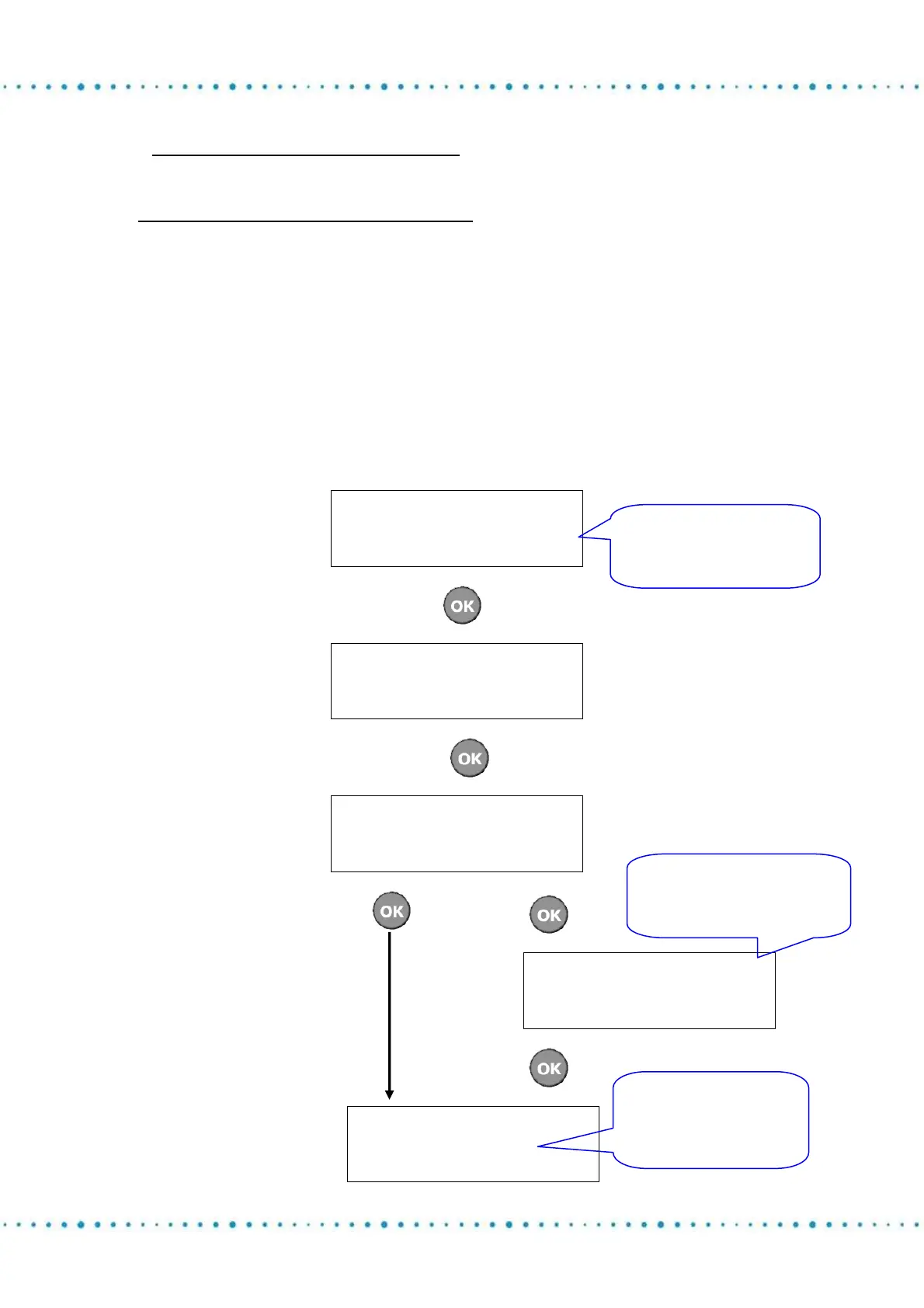

CHAN 1 : +0.000mm
CHAN 2 : +0.000mm
V
V
PART SETUP
-> OPTIONS
PARAMETERS
DISPLAYS
V
V
-> MEASURE MASKING
ACTION DELAY
MULTI-PART ACTION
V
CHAN 1 MASKING :
FOR 1 MEASUREMENTS
VALIDATE BY OK
CHAN 2
appears only if
you have a PC2003B
(dual channel) device.
V
V
MEASURE MASKING
-> CHANNEL 1
CHANNEL 2
V
V
Define the number of
measurements after
which the measured
value will be masked
This page appears only if
you have a PC2003B
(dual channel) device
