Wall mounting
IMPORTANT
1. Please follow the installation instructions carefully as failure to do so may result in injury or
damage to the set.
2. If you do not feel condent in carrying out the installation yourself, please ask a specialist
installer to carry out the installation for you.
3. The wall xings provided are for solid (brick, concrete etc) walls only. For all other wall types
please obtain the correct xings for the wall type from your hardware retailer. If you are unsure
which xings to use, please seek professional advice.
4. To avoid potential injury it is advisable to have assistance from another person to carry out this
installation.
5. We assumes absolutely no responsibility for injuries or damage that may occur due to improper
installation and handling.
Note for mounting
To secure the mounting on wall, a concrete wall is required.
1. Collect the parts for wall mounting.

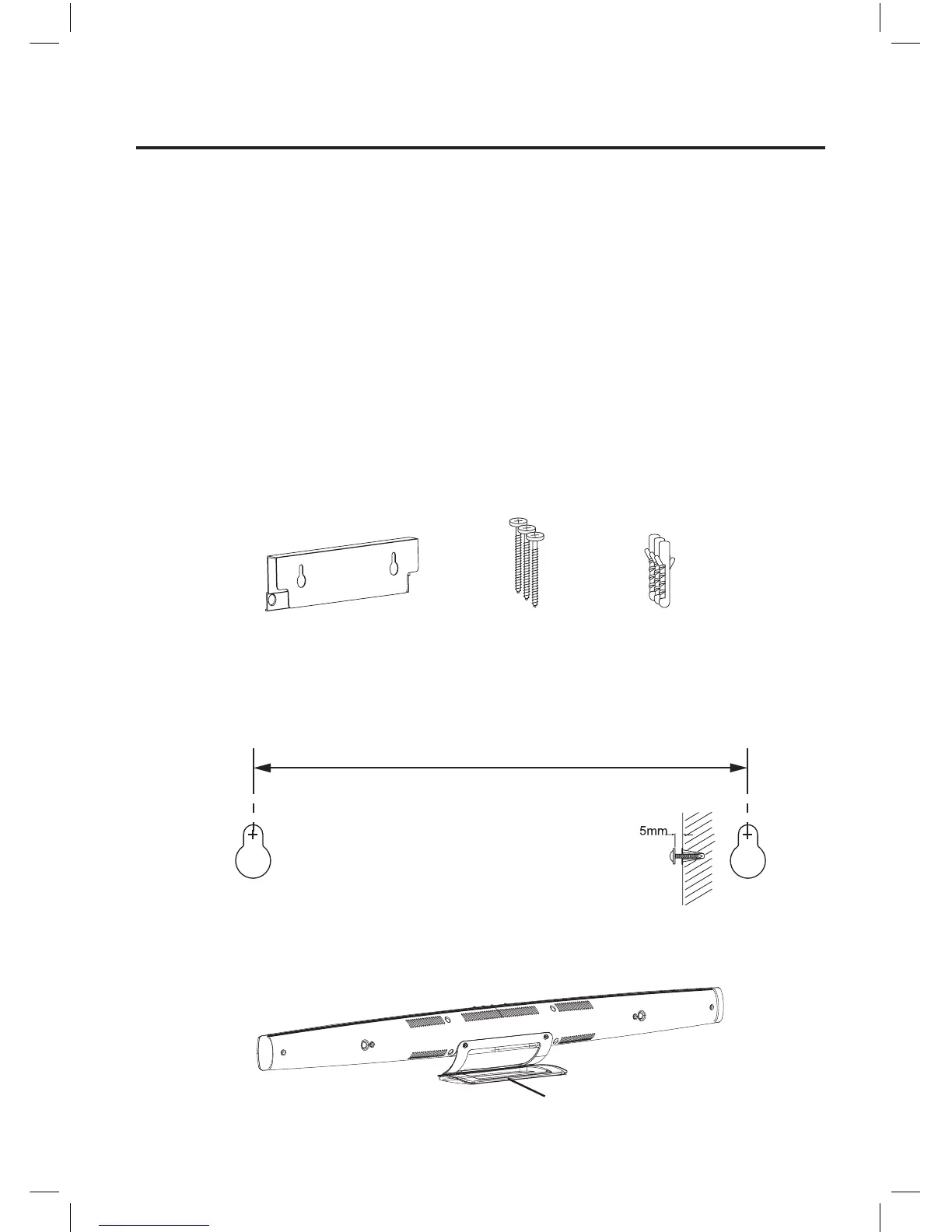

2. Draw a sheet as a template. Make the position of the unit on the wall (as illustrated below), and
then drill two 6mm diameter holes. Secure the 2 dowels B and 2 screws B (both supplied) in the holes
respectively. Leave a gap of 5 mm between the head of the screw and the wall.
3. Unscrew the 2 screws A in the middle of the soundbar with base stand.
Bracket x 1
Screws B x 3
Dowels B x 3
110mm
Base stand
Unit
