DEVANT SBS-200 - Product Overview; The Unit; Subwoofer

GB-7

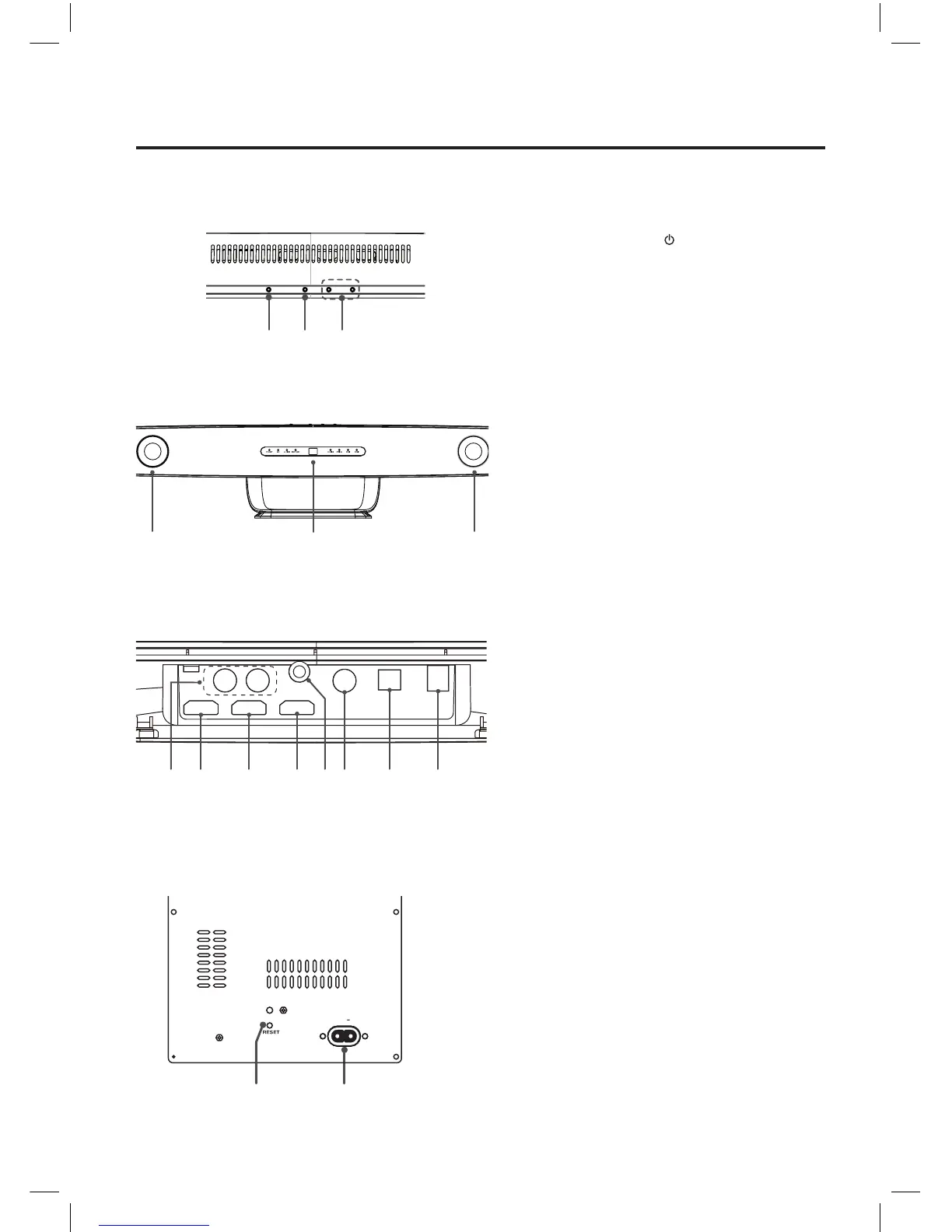

Product Overview
The Unit
Front View
Top View
Bottom View
Subwoofer
① ② ③
⑤
④ ⑥
⑧ ⑨ ⑩ ⑬ ⑭⑪ ⑫⑦
1. Standby Button
2. Source Button
3. Volume Up/Down Button (VOL+/-)
4. Left Speaker
5. Display Lens
Remote Sensor
6. Right Speaker
7. AUDIO IN Terminals (L&R)
8. HDMI1 Jack
9. HDMI2 Jack
10. HDMI Out Jack
11. AUX IN Terminal
12. Coaxial Terminal
13. Optical Terminal
14. DC In Jack
15. Reset Button
16. AC Power Socket (
AC ~
)
NE8006HW(SBS-200)_GB_41014751_20140604.indd 7 2014-6-4 16:15:03
⑯
AC
⑮
