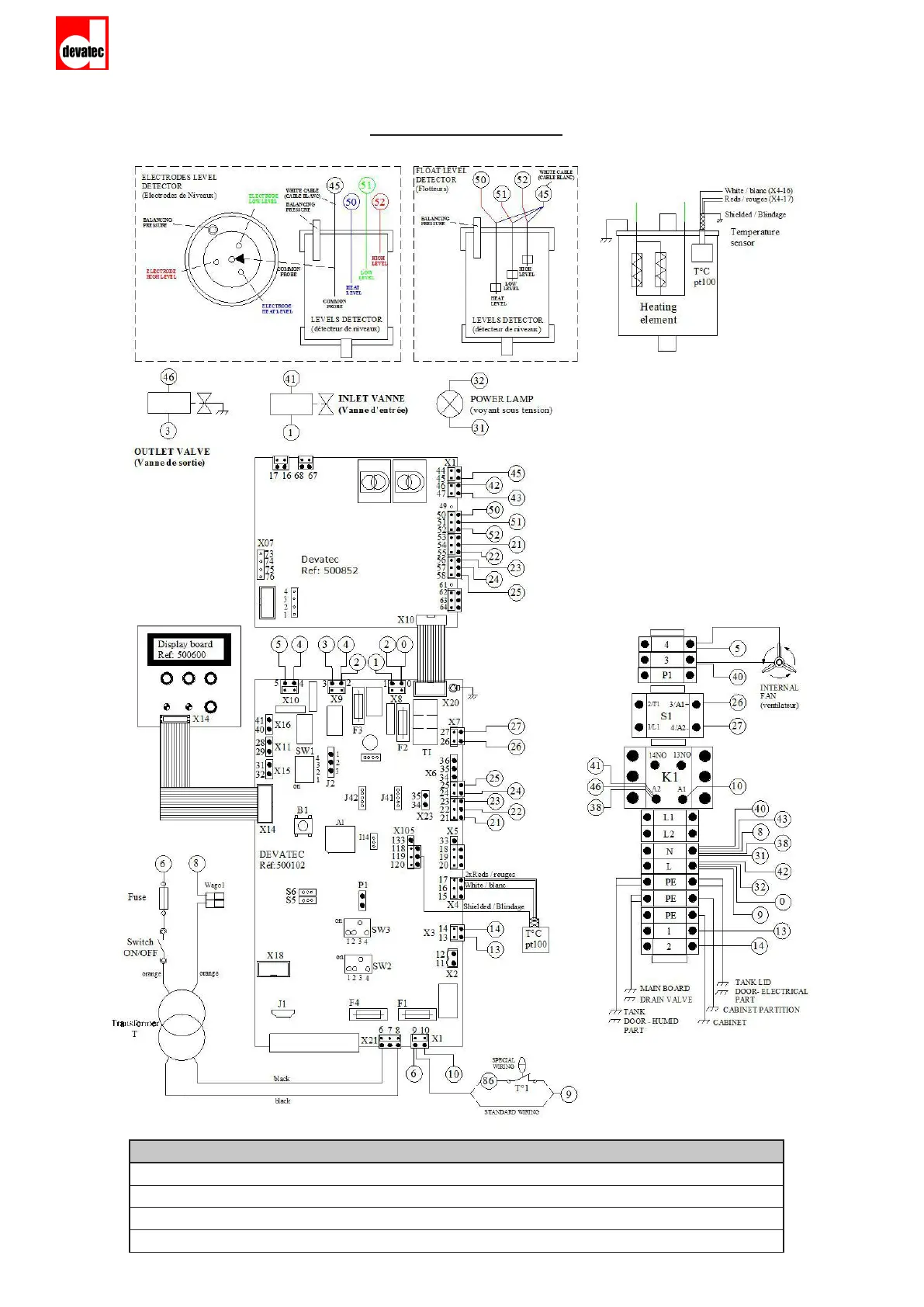

3.8.7 WIRING DIAGRAMS
Rep Amperage 
F1 2A 
F2 2A 
F3 2A 
F4 100 mA 

