DEVI DEVIreg 850 User Manual
5
of 1
of 1 rating
40 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
12
DEVI
reg™ 850
DC-PSU 24V/24W
PSU 24V NA
DC output
DC supply
White
White
Red
Black
White
White
Red
Black
Sensor
Sensor
13
13
14
15
16
17
18
19
20
21
22
23
24
12345678
9
1
0
1
1
1
2
12
5
4
DEVI
bus
TM
sensors
RS232
Red
Black
White
White
GND
Rx
Tx

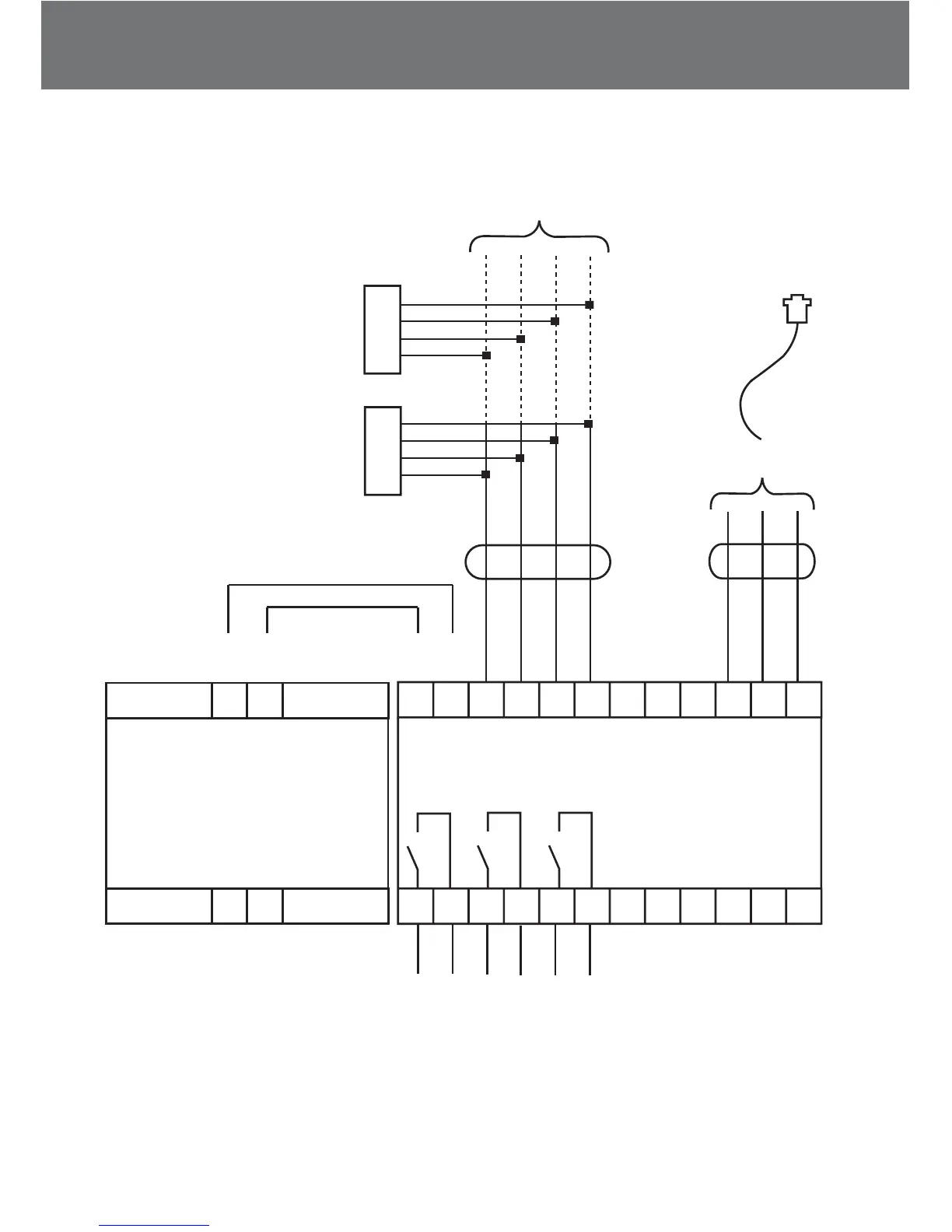

220 / 240V~
50 - 60 Hz
ALARM
System A
System B
+-
-
+
The DEVIreg™ 850 has an integral alarm function that monitors the attached sensors
and the in-built microprocessor.
An external alarm may also be connected to the system.
Installer Manual
11
13
Table of Contents
Default Chapter
2
Table of Contents
2
1 : User Manual
3
System Overview
3
General Use
5
Buttons
5
Display
5
Menu System
6
Possible Alarms During Operation
7
Clogged Drain
7
Missing Sensor
7
New Sensor Added
7
Sensor Malfunction
7
Changing Parameters and Performance of Systems
8
Roof System
8
Ground System
9
2 : Installer Manual
10
System Overview
10
Placement
11
Connection Steps for System
11
Installation Steps for System/Systems
15
General
15
Installation of Roof System
16
Installation of Ground System
17
Installation of Combi System
18
Installation of Dual System
20
Modification of System(S)
22
Replacing a Malfunctioning Sensor
23
Add an Extra Sensor
24
3 : Technical Specifications
25
Technical Data
25
Factory Settings
26
4 : Appendix
27
A: Menu System
27
B: How It Works
32
Roof System
32
Ground System
33
Security and Energy Consumption
35
C: PSU and Feeder Cable
36
Ground System
36
Roof System
36
Other manuals for DEVI DEVIreg 850
Installation Instruction
