FIGURES, DIAGRAMS, AND VIEWS

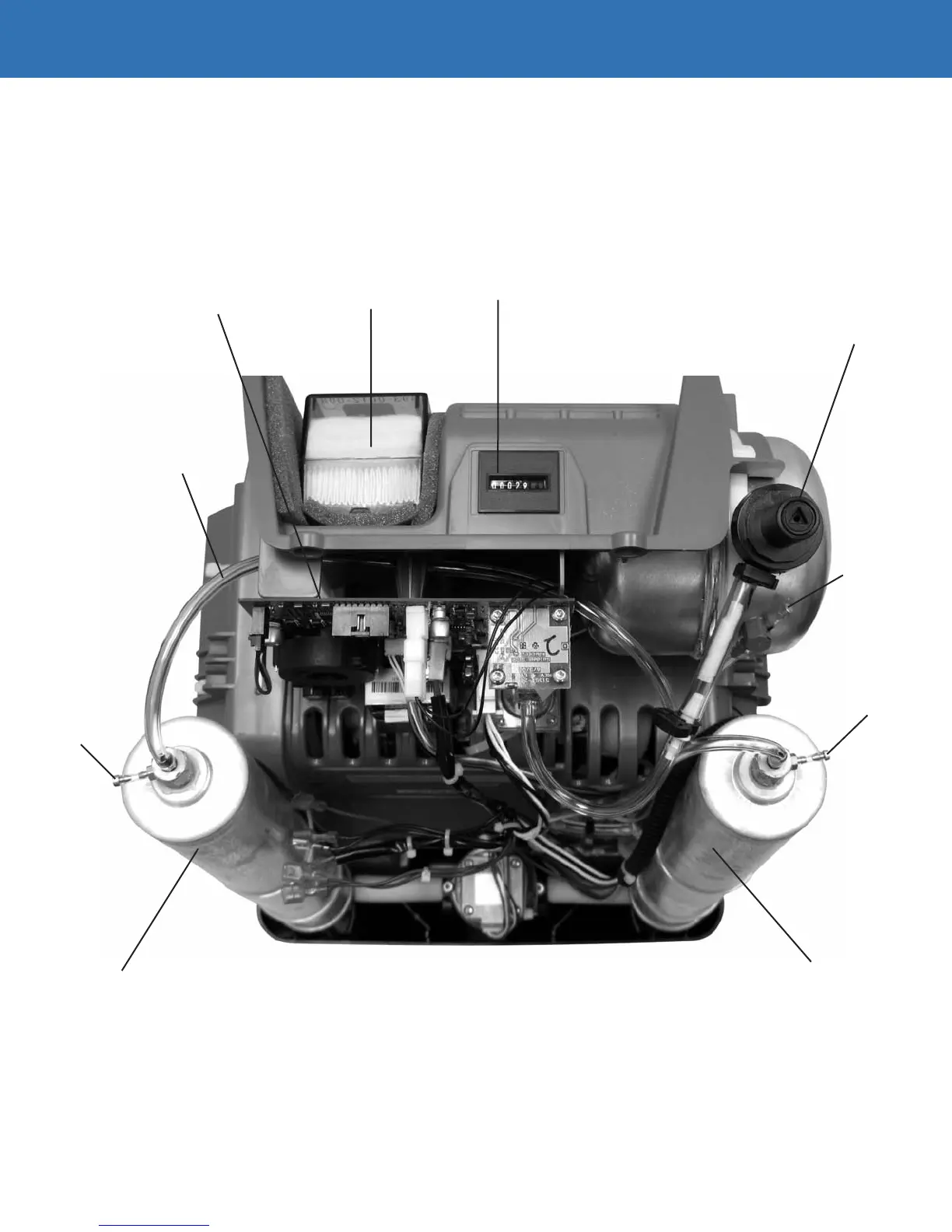

Figure 9 - Interior, Top View
Sieve Bed
Test Point
Left
Sieve
Bed
1/8” ID
Hose
Right
Sieve
Bed
Sieve Bed
Test Point
Pressure
Regulator
Hour
Meter
Intake
Bacteria
Filter
PC Board
Accumulator
Tank Test
Point Fitting
