DeVilbiss drive 1025 Series - Important Parts of Your Concentrator

EN - 6
Accessories
Transfiller Caddy ........................................................................................................................................................................................................................DeVilbiss 525DD-650
High Flow (6-15 LPM) Bubble Humidifier ....................................................................................................................................................................Salter Labs 7900 or equivalent
Low Flow (up to 6 LPM) Bubble Humidifier ................................................................................................................................................................Salter Labs 7600 or equivalent
High Flow Nasal Cannula ....................................................................................................................................................................................... Salter Labs 1600HF or equivalent
There are many types of humidiers, oxygen tubing and cannulas/masks that can be used with this device. Certain humidiers and accessories may impair the device’s
performance. A mask or any nasal cannula can be used with continuous ow delivery and may be sized according to your prescription as recommended by your homecare
provider who should also give you advice on the proper usage, maintenance and cleaning.
WARNING
When using the Transller Caddy with a Transll device, always keep the system on a at surface. Disassemble the system prior to moving.
NOTE– The bubble humidier should be supplied with a permanent re stop device. If a bubble humidier needs to be used without a permanent re stop device, a
secondary re stop device must be used and placed as close to the humidier as possible. Failing to do so could increase the risk of re. Country Standards may vary. Please
contact your provider for information.
NOTE– The device should only be used with bubble humidiers that are designed for use with ows up to 10 liters per minute and 20 psi pressure.
NOTE– A maximum of 50 feet (15 meters) of crush-proof oxygen tubing, plus 7 feet (2.1 meters) of cannula, plus a bubble humidier is allowed between the concentrator
and the patient.
NOTE– The oxygen supply accessory (patient tubing) shall be equipped with a means that, in case of re, stops the delivery of
oxygen to the patient. This means of protection should be located as close to the patient as practicable. Country Standards may
vary. Please contact your provider for information.
NOTE– Your healthcare provider should verify the compatibility of the oxygen concentrator and all of the parts used to connect to the patient before use.
IMPORTANT PARTS OF YOUR CONCENTRATOR
Please take time to familiarize yourself with your Drive DeVilbiss oxygen concentrator before operating.

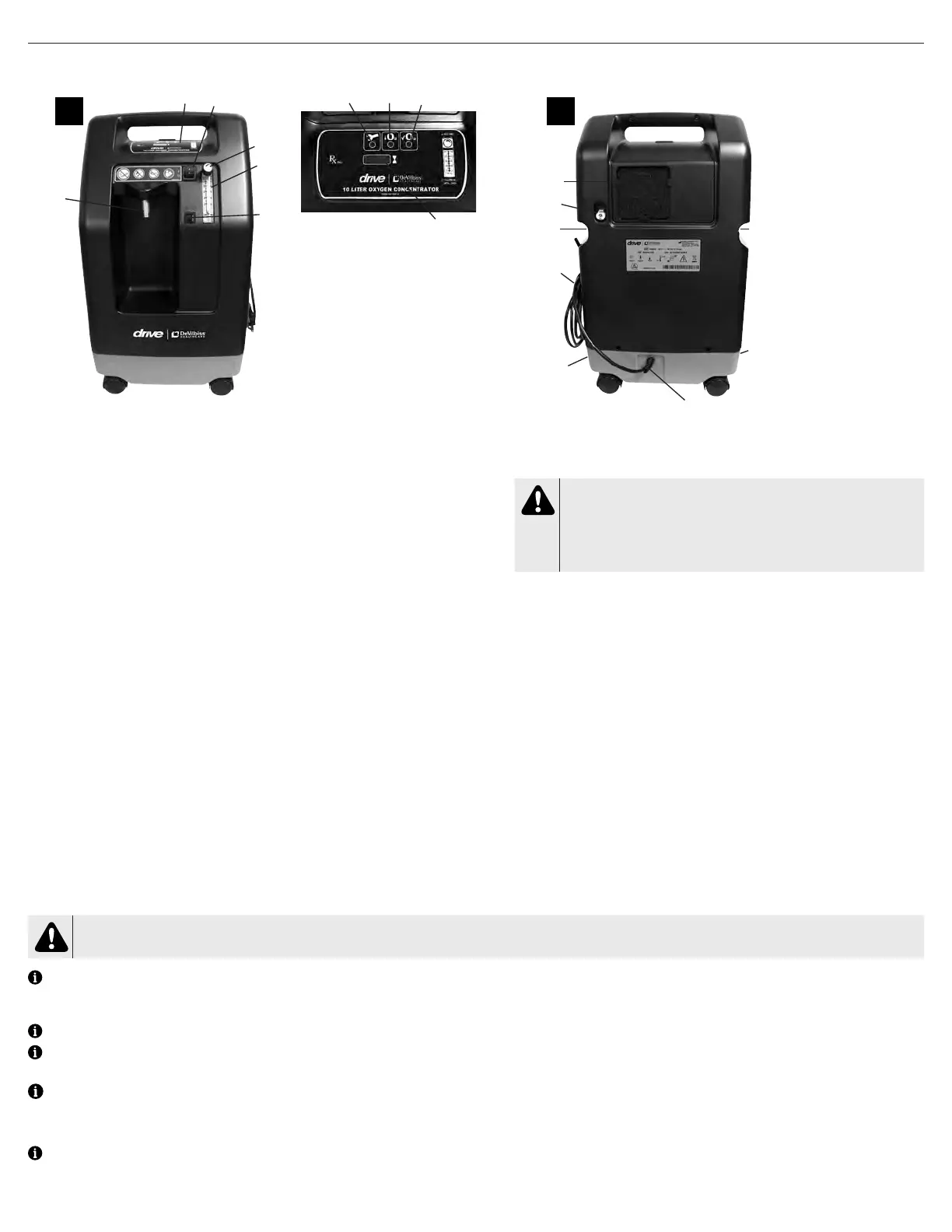

Front View (Figure A)
1. Operating instructions
2. Power Switch
| = ON
O = OFF
3. Flow meter knob
4. Flow meter
5. Circuit breaker – resets the unit after electrical overload shutdown
6. Oxygen outlet – oxygen is dispersed through this port
7. Normal Oxygen (green) light (see page 8)
8. Low Oxygen (yellow) light (see page 8)
9. Red Service Required (red) light – when illuminated contact your
DeVilbiss provider
10. Hour meter
Back View (Figure B)
11. Handgrip
12. Exhaust
CAUTION
When device is used under extreme operating conditions, the
temperature near the exhaust vents on the bottom of the unit may
reach 138.2˚F (59˚C). Keep body parts a minimum of 30” (76.2 cm)
away from this area.
13. Power cord and/or IEC power connector.
14. Line cord strap
15. Air lter – prevents dirt, dust and lint from entering your unit.
16. Auxiliary Oxygen Port: Your concentrator is equipped with an auxiliary
oxygen port that can be used to ll oxygen cylinders with an FDA-cleared
cylinder lling device that is designed to use oxygen from a concentrator
to ll a cylinder. The port is only for use with FDA-cleared lling devices
with compatible oxygen input specications. Refer to the cylinder lling
device instruction guide for the oxygen input/output specications,
connection and operating instructions.
SE-1025-1
1
2
3
4
5
6
A
11
12
13
12
14
11
15
B
16
10
7
9 8
