DeVilbiss EGA-503 - Parts List and Troubleshooting; Parts Identification

SB-2-163-M (11/2014)4 / 8
Ref. No. Replacement Part No. Description Individual Parts Req.
1 EGA-4 Packing Nut 1
■ 2 --- Fluid Needle Packing 1
3 EGA-7 Baffle 1
4 EGA-4000-F Tip, Needle & Gasket (includes 4, 5, 15) 1
■ 5 EGA-59-K5 Gasket (Kit of 5) 1
6 EGA-443 Trigger and Stud Assy. 1
■ 7 AG-3-1-K5 Trigger Bearing Stud (Kit of 5) 1
8 EGA-40-390 Air Cap 1
9 EGA-11 Retaining Ring 1
10 EGA-454 Fan Adjusting Assembly 1
■ 11 SSG-8205-K10 O-Ring (Kit of 10) 1
■ 12 AG-26-K10 Washer (Kit of 10) 2
■ 13 --- Spring 1
14 EGA-3 Packing Gland 1
15 --- Fluid Needle (included with Item 4) 1
■ 16 AG-7-K5 Needle Spring Kit (Kit of 5) 1
17 AG-16 Fluid Needle Adjusting Screw 1
18 EGA-441 Air Valve Assy. 1
19 AG-46-K3 Lock Nut (Kit of 3) 1
■ 20 EGA-9-K5 Stem (Kit of 5) 1
■ 21 SST-3008-K5 Ball (Kit of 5) 1
■ 22 C-104-K5 Spring (Kit of 5) 1
23 GD-36-K5 Spring Retainer (Kit of 5) 1
■ 24 EGA-5-K6 Air Valve Plunger (Kit of 6) 1
1
■ A quantity of necessary parts is included in Gun Repair Kit KK-5044. Government NSN No. 4940-01-182-6975 = KK-5044.
Suffixes -K3, -K5, etc. designates kits of multiple parts. Example: EGA-59-K5 is a kit of (5) gaskets.

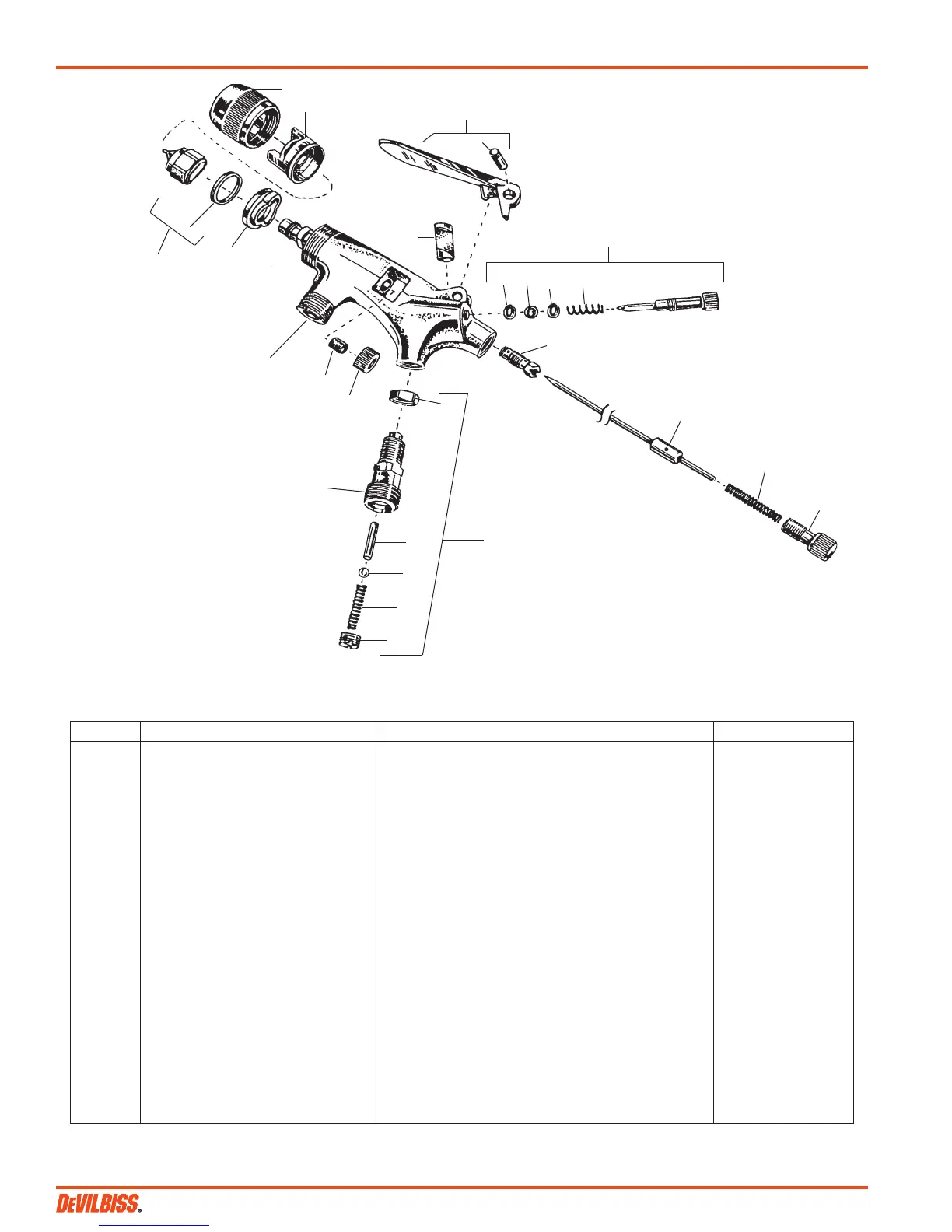

PARTS LIST
20
19
21
22
23
18
Fluid Inlet
1/4" NPS(M)
Air Inlet
1/4" NPS(M)
2
4
5
9
8
6
7
24
10
12
11
12
13
14
15
16
17
3
