DeVilbiss FLG4 - Parts Identification and Troubleshooting; Spray Gun Parts List

Page 4 SB-2-775-A
ENGLISH

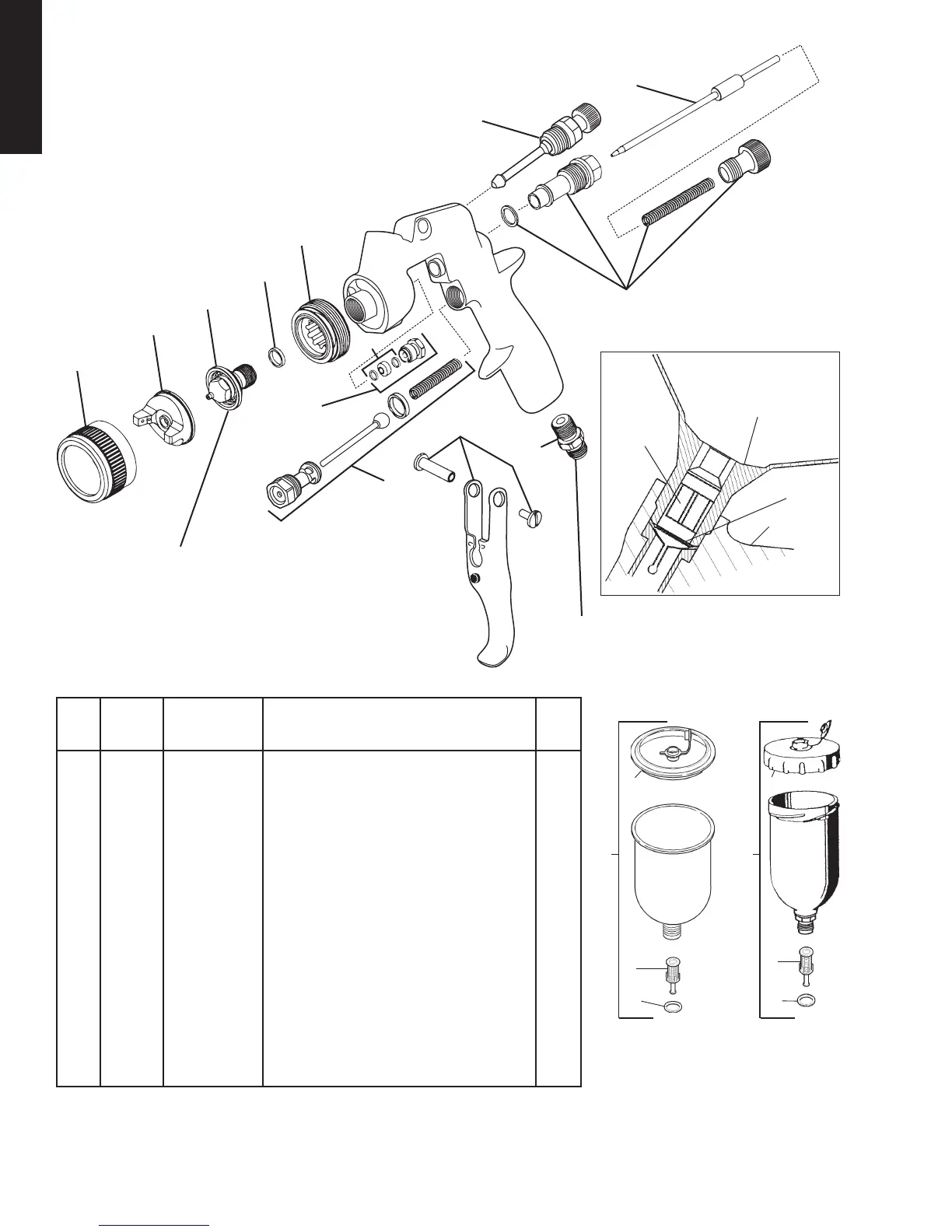

Gun Drawing
PARTS LIST
Ref.
No.
Comp.
Part No.
Replacement
Part No. Description
Ind.
Parts
Req.
1 690017 FLG-333 Retaining Ring 1
2 See Chart 1 Air Cap 1
3 See Chart 2 Fluid Tip & Seal Kit 1
4 690020 FLG-304-K5 Fluid Tip Seal (Kit of 5) 1
5 690021 FLG-305 Baffle 1
6 803528 FLG-465 Spreader Air Adjustment Valve 1
7 803525 FLG4-364-K Needle Knob, Spring, Bushing & Gasket Kit 1
8 803526 FLG4-366-K FLG4 Needle, Needle Packing & Nut Kit 1
9 190780 JGS-449-1 Air Valve & Gasket Kit 1
10 190287 P-MB-51 Air Inlet Nipple 1
11 191943 JGS-477-1 Trigger, Trigger Stud & Screw 1
12 192151 KGP-13-K5 Cup Gasket Kit (Kit of 5) 1
13
702576
190252
702576
GFC-501
Metal Gravity Feed Cup
Acetal Gravity Feed Cup
1
1
14 190944 GFC-404-K2 Disposable Lid Kit (Kit of 2) 1
15 190181 KGP-5-K5 Filter Kit (Kit of 5) 1
803527
FLG4-488-K
t
FLG4 Gun Repair Kit (Contains 1 each: Fluid Tip
Seal, Needle Packing, Trigger Stud, Trigger Screw,
and Gasket for Air Valve & Needle Bushing.)
519210 FLG-463 Air Cap #3 HVLP Test Cap
Additional Spray Gun Accessories on page 7.
4
5
6
7
8
8
9
10
11
t
t
t
t
t
t
Cup Drawing
Cup
Gun Body
Cup Gasket (12)
Filter (15)
3
2
1
Air Inlet Nipple 1/4" NPS(m)
Torque to 15 ft-lbs
Use medium strength thread sealant (i.e. Devcon
#2242 Blue or equivalent) on threads
Fluid Tip
Torque to 15–20 ft-lbs
GFC-501
13
14
15
12
702576
13
14
15
12
