Introduction 14
devolo Magic 2 LANtriple
The devolo Magic 2 LAN triple features
b An integrated electrical outlet,
b One PLC/reset button
b Three Gigabit network ports
b One indicator light
The LED status display can be disabled. You
can find more information about this in
Chapter 4 Network configuration.
2.2.1PLC button
Starting up a new devolo Magic PLC network
devolo Magic adapters that are in the factory de-
fault condition, i.e. have been recently purchased
or successfully reset (see Chapter 2.2.5 Reset/Re-
start), automatically start to attempt to pair
(establish a PLC connection) with another
devolo Magic adapter when reconnected to the
mains supply.
After plugging the devolo Magic adapters into
available power sockets, a new devolo Magic net-
work is established automatically within 3 minutes.
You can find detailed information about in-
stalling devolo Magic adapters in Chapter
3.3.1 Starter Kit—Automatic setup for a
new devolo Magic PLC network.
Expanding an existing devolo Magic PLC net-
work by adding another devolo Magic adapter
In order to use a new devolo Magic 2 LAN triple in
your devolo Magic network, first you have to
connect it to your existing devolo Magic adapters
devices as a network. This is accomplished by using
a shared PLC password.

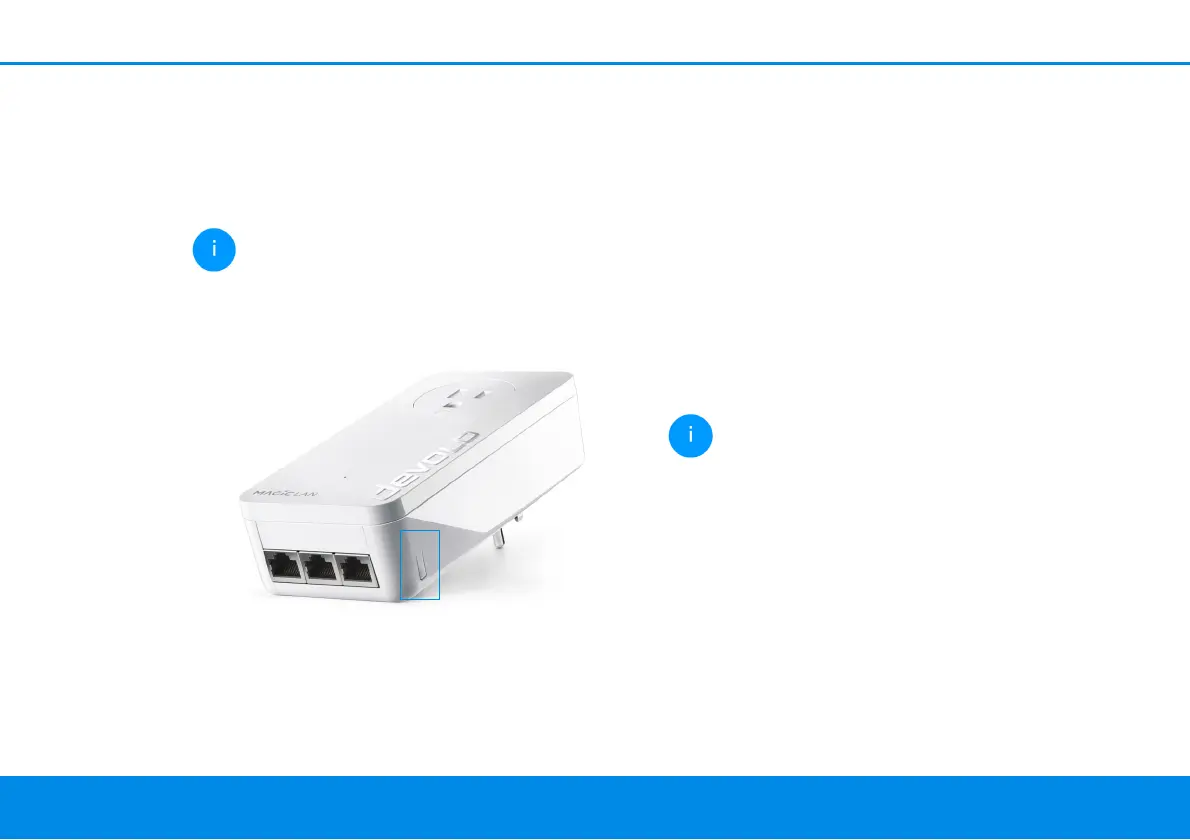

Fig. 1: devolo Magic 2 LAN triple

Devolo Magic 2 LAN triple Specifications

General

Type	Powerline Adapter
Maximum Data Transfer Rate	2400 Mbps
Ports	3x Gigabit Ethernet
Encryption	128-bit AES
Standard	HomePlug AV2
Model	Magic 2 LAN triple
Manufacturer	Devolo
Wi-Fi	No
Dimensions	152 x 76 x 40 mm
Weight	290 g
Operating Temperature	0°C to 40°C
Compatibility	Works with all Devolo Magic series adapters
Range	500 meters over powerline
Ethernet Speed	10/100/1000 Mbps
Plug Type	EU, UK, US (varies by region)
Operating Humidity	10% to 90% non-condensing
