Unpacking the Machine and Its Parts

WARNING: When moving the machine, always seek assistance. The machine is too heavy
for one person tohandle.
1. Remove the loose packaging material from thebox.
2. Lift the machine parts out of thebox.
3. Remove any remaining packing material from the machineparts.
ASSEMBLY

WARNING: Prior to assembly always unplug thetool.

WARNING: When assembling the machine, always follow the instructions in the order as
describedbelow.
ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn tool off and
disconnect tool from power source before making any adjustments or removing/
installing attachments or accessories. An accidental start‑up can causeinjury.

WARNING: Use only DeWALT battery packs andchargers.
Description (Fig. A)

WARNING: Never modify the power tool or any part of it. Damage or personal injury
couldresult.
1
On/Off switch
2
Motor arm assembly
3
Plunge handle
4
Head lock knob
5
Cutting disc cover
6
Cutting disc
7
Rubber shroud
8
Small rear water attachment
9
Large rear water attachment
10
Splash guard
11
Cutting cart assembly
12
Small cutting cart water attachment
13
Large cutting cart water attachment
14
Extension table
15
Water basin
16
Saw frame assembly
17
Water nozzles
18
Cutting cart stop
19
Edge guide
20
Cutting wheel cover screw
21
Accessory storage
Intended Use
Your D36000 tile saw has been designed for professional wet tile cutting applications. Using
the appropriate diamond saw blade, diameter 250mm, it can cut concrete, brick, porcelain
and ceramic materials. Providing optimum versatility, the machine performs the cutting
operations of straight cutting (ripping), diagonal cutting, plunge cutting and bevel cutting
easily, accurately andsafely.
This machine is not to be used for any operation other than those mentioned in thismanual.
DO NOT use under wet conditions or in the presence of flammable liquids orgases.
DO NOT let children come into contact with the tool. Supervision is required when
inexperienced operators use thistool.
• Young children and the infirm. This appliance is not intended for use by young children
or infirm persons without supervision.
• This product is not intended for use by persons (including children) suffering from
diminished physical, sensory or mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their safety. Children should never
be left alone with thisproduct.
Date Code Position (Fig.A)
The date code
22
, which also includes the year of manufacture, is printed into thehousing.
Example:
2020XX XX
Year and week of Manufacture
Always wear regular working gloves while operating thistool.
Always wear earprotection.
WARNING! Sharpedges.
On/off switch: position I (on) and 0 (off).
Carrying point
Do not place your hands within thisarea.
80 mm
Maximum depth of cut
25.4
mm
Cutting disc bore
Package Contents
The package contains:
1 Motor arm assembly
1 Saw frame assembly
1 Water basin
1 Water pump
1 Cutting disc
1 Cutting cart
1 Extension table
1 Edge guide
2 Rear water attachments
2 Cutting cart water attachments
1 Splash guard
6 Hex screws
1 Hex key
1 Cutting wheel wrench
1 Instruction manual
• Check for damage to the tool, parts or accessories which may have occurred duringtransport.
• Take the time to thoroughly read and understand this manual prior tooperation.
Portable Residual Current Device
The machine is equipped with a portable residual current device (PRCD), which protects the
user against electric shock by interrupting the circuit when a leakage current of 10mA or
greater is detected.

WARNING: Never operate the machine without the PRCD in place. Do not use the
machine if the PRCD does not function properly. For the PRCD to work, the machine must
be connected to an earthed wall socket. Before using the tile saw, check the function of
the PRCD, pressing the TESTbutton.
Electrical Safety
The electric motor has been designed for one voltage only. Always check that the power
supply corresponds to the voltage on the ratingplate.
i
Your DeWALT tool is double insulated in accordance with EN60745; therefore no earth
wire isrequired.
This product is intended to be used with a safety transformer manufactured to BSEN61558 and
BS4343. Never work without this transformer in place.
If the supply cord is damaged, it must be replaced only by DeWALT or an authorised
serviceorganisation.
Mains Plug Replacement
(U.K.& Ireland Only)
If a new mains plug needs to be fitted:
• Safely dispose of the oldplug.
• Connect the brown lead t o the live terminal in theplug.
• Connect the blue lead to the neutralterminal.

WARNING: No connection is to be made to the earthterminal.
Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 13A.
Using an Extension Cable
If an extension cable is required, use an approved 3–core extension cable suitable for the
power input of this tool (see Technical Data).The minimum conductor size is 1.5mm
2
; the
maximum length is 30m.
When using a cable reel, always unwind the cablecompletely.

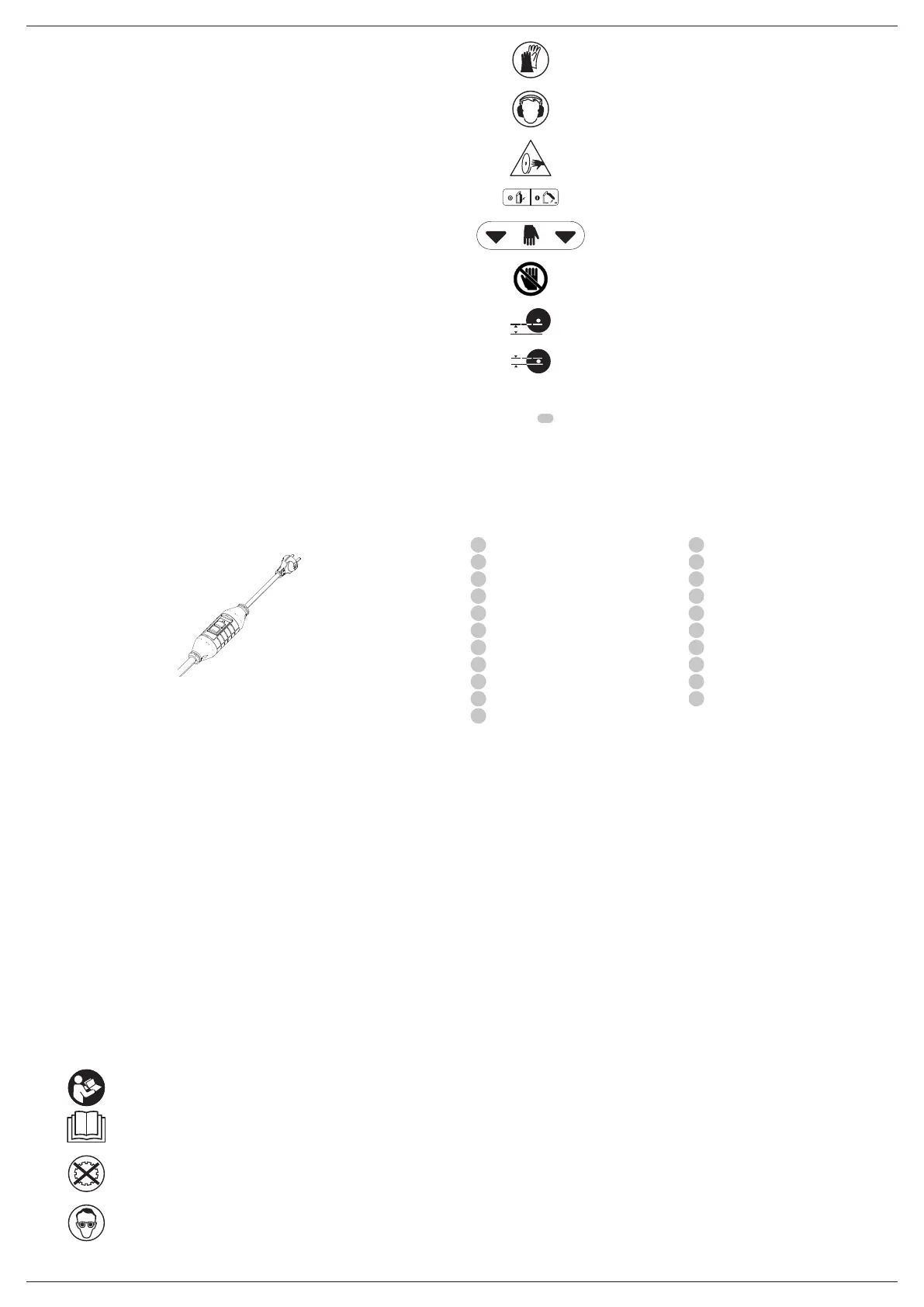

Labels on tool
The following pictographs are shown on thetool.
Read the instruction manual beforeuse.
Do not use recessed cuttingdiscs.
Wear safetygoggles.
