DeWalt DWS709 - Changing or Installing a New Saw Blade

English
5
DRIVE
120 V motor
1600 watts in 15 amp motor
3800 RPM Cut helical gears
Multi-V belt Roller bearings
Automatic electric brake Carbide blade
Familiarization

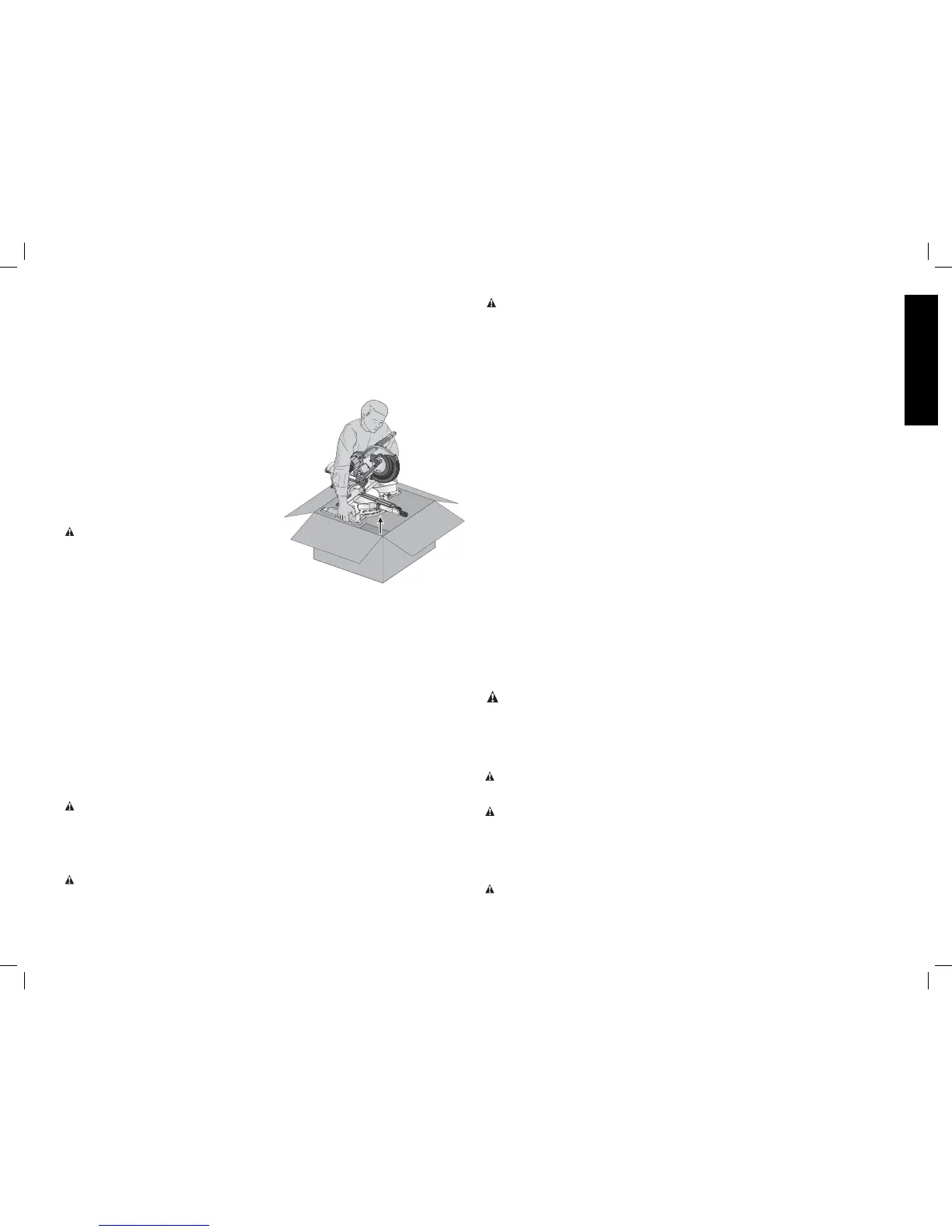

FIG. 2
Your miter saw is fully assembled in the carton.
Open the box and lift the saw out by the
hand indentations in the base of the saw, as
shown in Figure2.
Place the saw on a smooth, flat surface such as
a workbench or strong table.
Examine Figure 4 to become familiar with the
saw and its various parts. The section on adjus-
tments will refer to these terms and you must
know what and where the parts are.
CAUTION: Pinch hazard. To reduce the risk
of injury, keep thumb underneath the operating
handle when pulling the handle down. The lower
guard will move up as the operating handle is
pulled down, which could cause pinching. The
operating handle is placed close to the guard for
special cuts.
Press down lightly on the operating handle and pull out the lock down pin. Gently release the
downward pressure and hold the operating handle, allowing it to rise to its full height. Use
the lock down pin when carrying the saw from one place to another. Always use the hand
indentations to transport the saw as seen in Figure 4.
Bench Mounting
Holes are provided in all 4 feet to facilitate bench mounting, as shown in Figure 4. (Two
different-sized holes are provided to accommodate different sizes of screws. Use either hole,
it is not necessary to use both.) Always mount your saw firmly to a stable surface to prevent
movement. To enhance the tool’s portability, it can be mounted to a piece of 1/2" (12.7 mm)
or thicker plywood which can then be clamped to your work support or moved to other job
sites and reclamped.
NOTE: If you elect to mount your saw to a piece of plywood, make sure that the mounting
screws don’t protrude from the bottom of the wood. The plywood must sit flush on the work
support. When clamping the saw to any work surface, clamp only on the clamping bosses
where the mounting screw holes are located. Clamping at any other point will interfere with
the proper operation of the saw.
CAUTION: To prevent binding and inaccuracy, be sure the mounting surface is not warped
or otherwise uneven. If the saw rocks on the surface, place a thin piece of material under one
saw foot until the saw sits firmly on the mounting surface.
IMPORTANT SAFETY INSTRUCTIONS
Changing or Installing a New Saw Blade (Fig. 3)
WARNING: To reduce the risk of injury, turn unit off and disconnect it from
power source before installing and removing accessories, before adjusting or when
making repairs. An accidental start-up can cause injury.
CAUTION:
• Never depress the spindle lock button while the blade is under power or coasting.
• Do not cut ferrous metal (containing iron or steel) or masonry or fiber cement product
with this miter saw.
Removing the Blade (Fig. 3)
1. Unplug the saw.
2. Raise the arm to the upper position and raise the lower guard (A) as far as possible.
3. Loosen, but do not remove guard bracket screw (B) until the bracket can be raised far
enough to access the blade screw (E). Lower guard will remain raised due to the position
of the guard bracket screw.
4. Depress the spindle lock button (C) while carefully rotating the saw blade by hand until the
lock engages.
5. Keeping the button depressed, use the other hand and the wrench provided (D) to loosen
the blade screw. (Turn clockwise, left-hand threads.)
6. Remove the blade screw (E), outer clamp washer (F), blade (G) and blade adapter (H), if
used. The inner clamp washer (I) may be left on the spindle.
NOTE: For blades with a blade hole of 5/8" (15.88 mm), the 1" (25.4 mm) blade adapter(H)
is not used.
Installing a Blade (Fig. 3)
1. Unplug the saw.
2. With the arm raised, the lower guard held open and the guard bracket raised, place
the blade on the spindle, onto the blade adapter (if using a blade with a 1" [25.4 mm]
diameter blade hole) and against the inner blade clamp with the teeth at the bottom of
the blade pointing toward the back of the saw.
3. Assemble the outer clamp washer onto the spindle.
4. Install the blade screw and, engaging the spindle lock, tighten the screw firmly with
wrench provided (turn counterclockwise, left-hand threads).
NOTE: When using blades with a 5/8" (15.88 mm) diameter blade hole, the blade adapter will
not be used and should be stored in a safe place for future use. The separate blade adapter
is not available on all models.
5. Return the guard bracket to its original position and firmly tighten the guard bracket screw
to hold bracket in place.
WARNING:
• The guard bracket must be returned to its original position and the guard
bracket screw tightened before activating the saw.
• Failure to do so may allow the guard to contact the spinning saw blade
resulting in damage to the saw and severe personal injury.
Transporting the Saw
WARNING: To reduce the risk of injury, turn unit off and disconnect it from power
source before installing and removing accessories, before adjusting or when making
repairs. An accidental start-up can cause injury.
WARNING: To reduce the risk of serious personal injury, ALWAYS lock the rail lock
knob, miter lock knob, bevel lock knob, lock down pin and fence adjustment knobs before
transporting saw.
In order to conveniently carry the miter saw from place to place, use the hand indentations in
the base, as shown in Figure 4.
FEATURES AND CONTROLS
WARNING: To reduce the risk of injury, turn unit off and disconnect it from power
source before installing and removing accessories, before adjusting or when making
repairs. An accidental start-up can cause injury.
