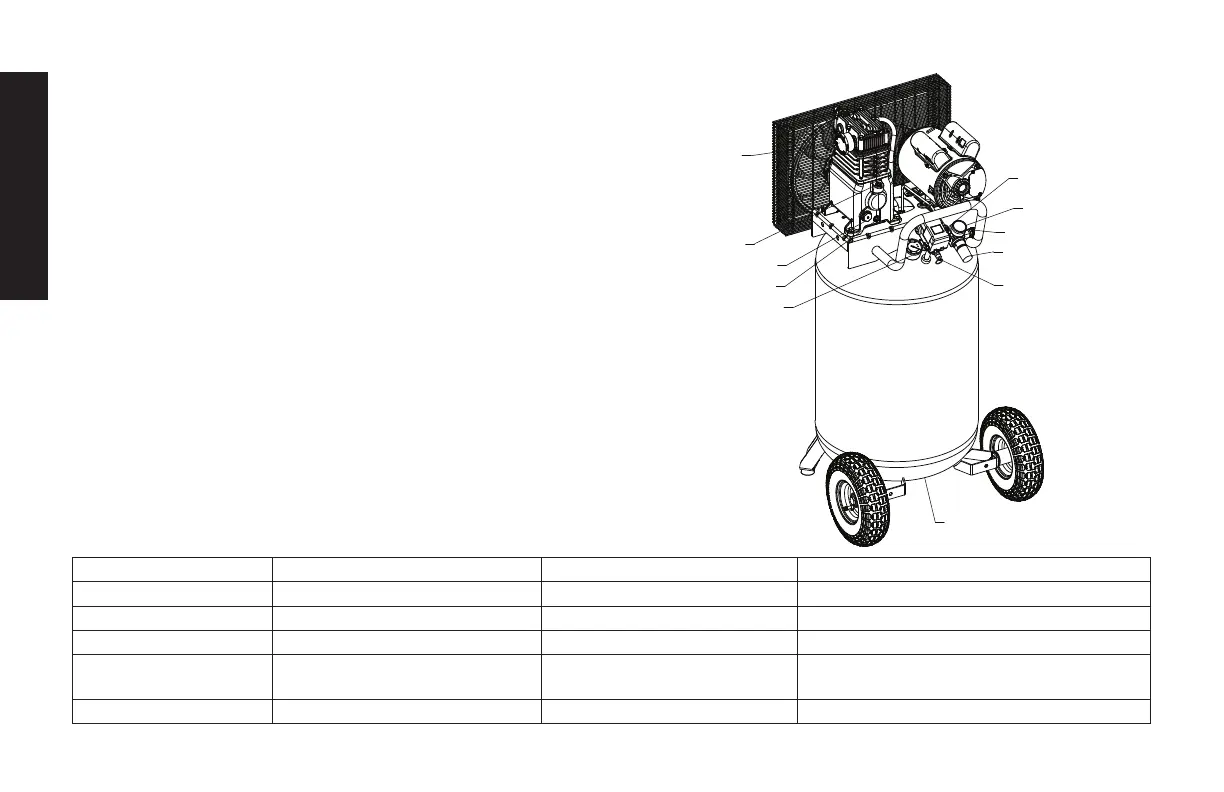

Air Compressor
A. Pump Air Intake Filter
B. Auto/Off Switch
C. Air Tank Pressure Gauge
D. Regulated Pressure Gauge
E. Pressure Regulator
F. Air Outlet
G. Safety Valve
H. Air Tank Drain Valve
I. Pump Oil Fill Plug
J. Pump Oil Drain Plug
K. Pump Oil Sight Glass
L. Quick Connect
Pump Specifications
2 Cylinder
Single Stage
Oil Lubricated
Cast iron crankcase, cylinder, and aluminum head
Weight: 27.0 lbs (12.2 kg.)
Oil Capacity: 16 fl. oz. (473 mL)
Specifications
MODEL DXCM303
APPROX. CUT OUT PRESSURE
175 PSI
WEIGHT APPROXIMATELY 150 lbs. (68 kg)
AIR DELIVERY
6.2 SCFM @ 90 PSI
HEIGHT 49"
APPROX. TANK FILL TIME
6.5 MINUTES
WIDTH 24"
INPUT
120V, 60HZ, SINGLE PHASE AC ONLY, 15 AMPS
LENGTH 23"
MIN. BRANCH CIRCUIT REQ
15 AMPS (SEE VOLTAGE & CIRCUIT
PROTECTION SECTION)
AIR TANK CAPACITY
30 GALLONS (113.6L)
FUSE TYPE
TIME DELAY
