15
English
Part Description
A Drain Legs
B Drain Valves
C Lubricator
D Air Tool
E Regulator
F Filter / Moisture Trap
G Air Usage Lines
H Dirt Legs
I Air Discharge Valve
J Feeder Lines Slope with Air Flow
K Main Distribution Air Lines
L 5 Micron Filter
M .01 Micron Filter
N Spray Gun
O Ball Fitter
P Flexible Coupling
R Air Flow
S Air Outlet
NOTICE: Slope pipe in direction of air flow. Water condensate
flows along bottom of pipe to drain legs, preventing it from
entering feeder lines.
NOTICE: For Best Performance - The distance between the air
compressor and the moisture trap should be as long as possible.

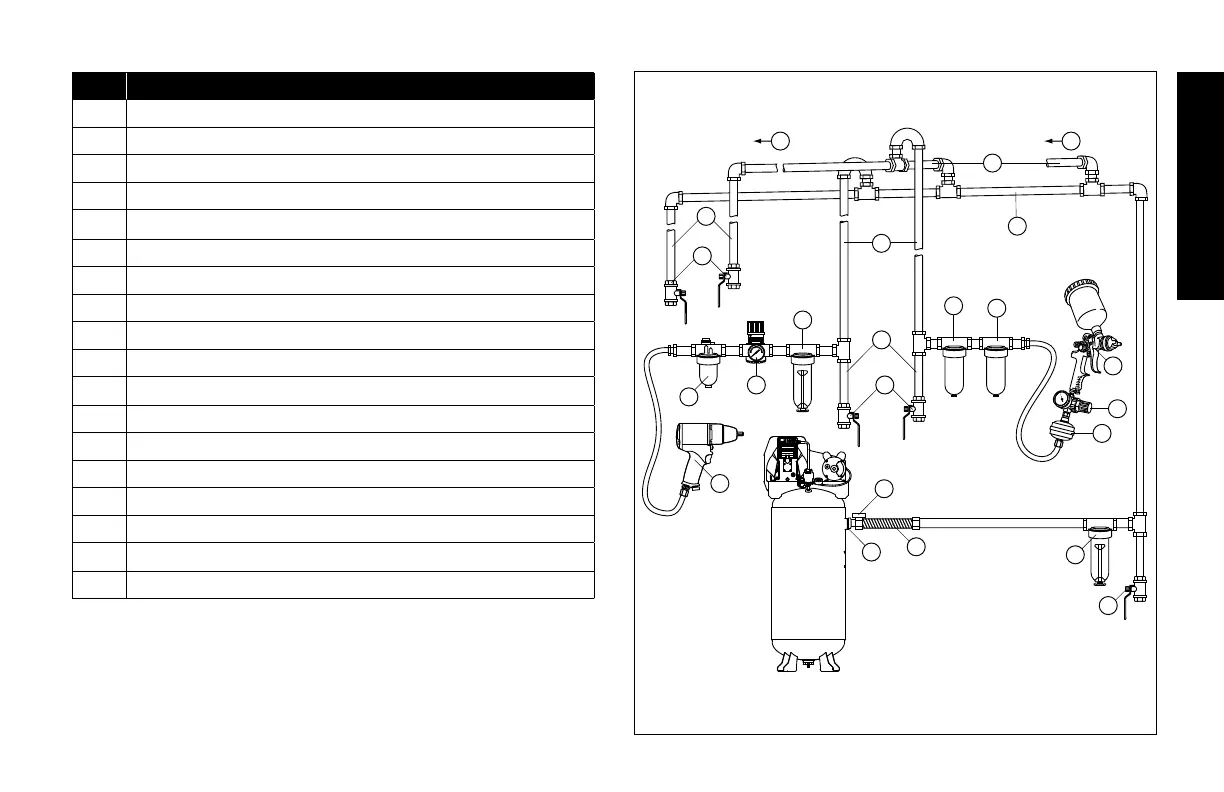

TYPICAL COMPRESSED AIR DISTRIBUTION SYSTEM
S
P
F
B
D
R R
A
B
G
C
H
F
B
I
O
E
N
E
J
K
L
M
Fig. 16
