DeWalt DXCM603

Y
X
W
U
V
Fig. 3 Fig. 4
J
K
L
9
English
Pump Specications
2 cylinder
Single stage
Oil lubricated
Cast iron crankcase, cylinder and aluminum head
Weight: 35.7 lbs (16.2 kg.)
Oil capacity: 32 . oz (946 mL)

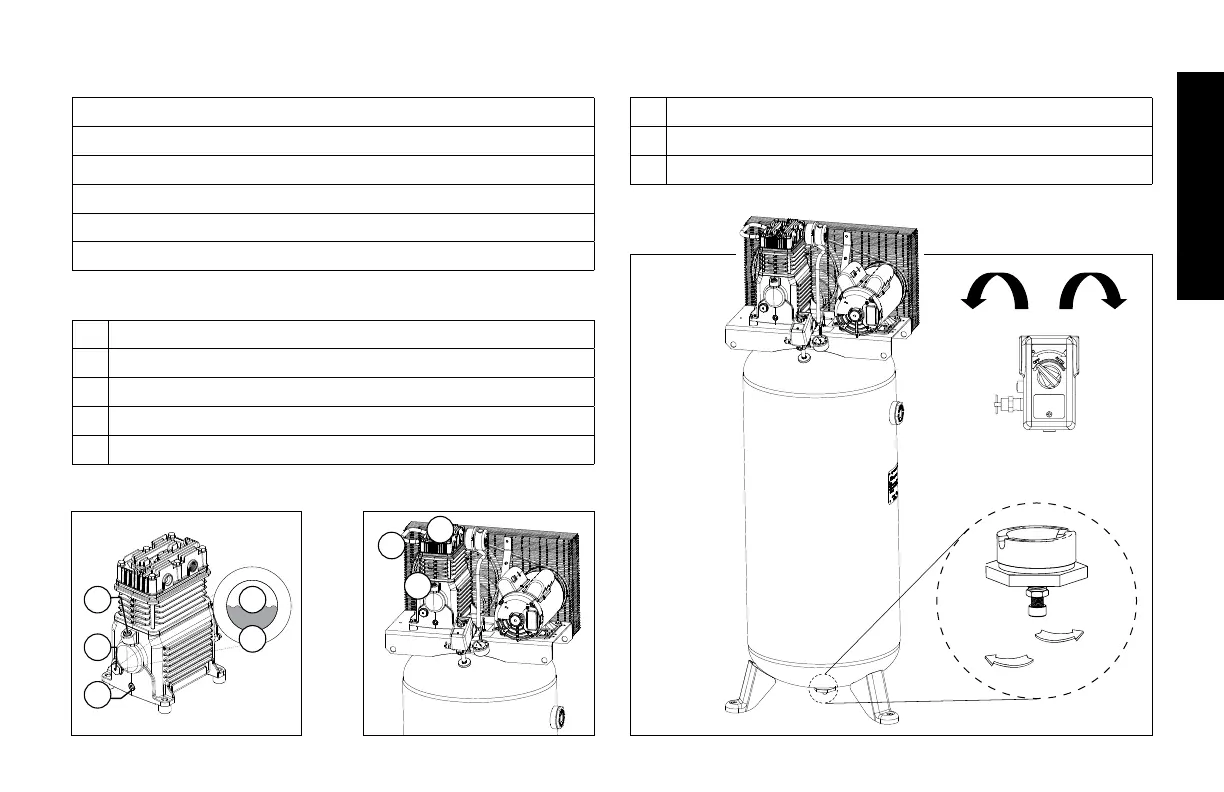

Pump Part and Description (Fig. 3)
U Full
V Add
W Oil drain plug
X Oil level sight glass
Y Oil ll plug
Hot Surfaces (Fig. 4)
J Air compressor cylinder and head
K Outlet tube
L Pump crankcase
OFF
(
0
)
AUTO ON
(
1
)
CLOSE
OPEN
Fig. 5
