DeWalt DXCM603

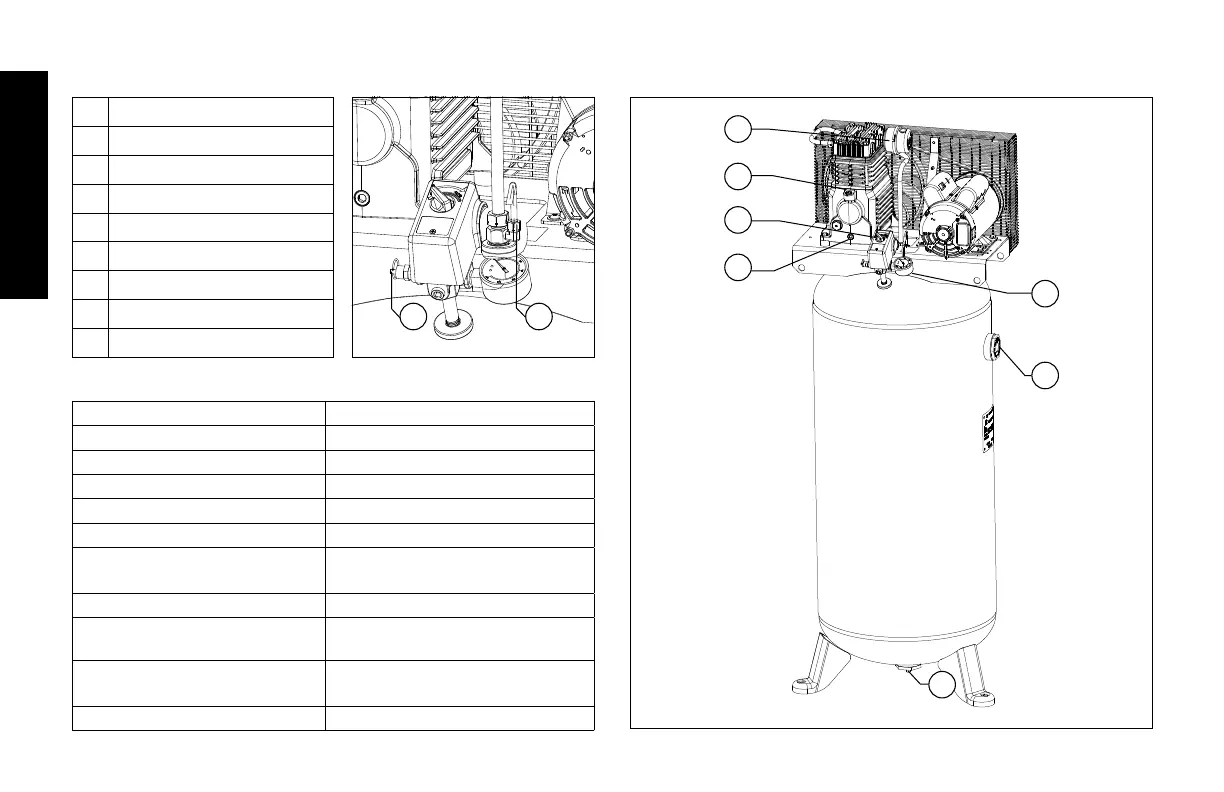

Fig. 1 Fig. 2
8
English
Air Compressor
A Safety valve
B Check valve
C Pump air intake lter
D Pump oil ll plug
E Auto(1)/O(0) switch
F Pump oil drain plug
G Tank pressure gauge
H Air outlet
I Tank drain valve
Specications
MODEL DXCM603
WEIGHT Approximate 237 lbs (107.5 kg)
HEIGHT 65.25"
WIDTH 23.7"
TANK CAPACITY 60 gallons (227.1 liters)
Approx. CUT OUT pressure 175 PSI
AIR DELIVERY
17.5 SCFM at 40 PSI
14.6 SCFM at 90 PSI
TANK FILL TIME 5.6 MINUTES
INPUT
240V, 60Hz, Single Phase
AC only, 20 Amps
MINIMUM BRANCH CIRCUIT
REQUIREMENT
30 AMPS
FUSE TYPE Time Delay
A B
G
H
C
D
E
F
I
