P3500
EN 13

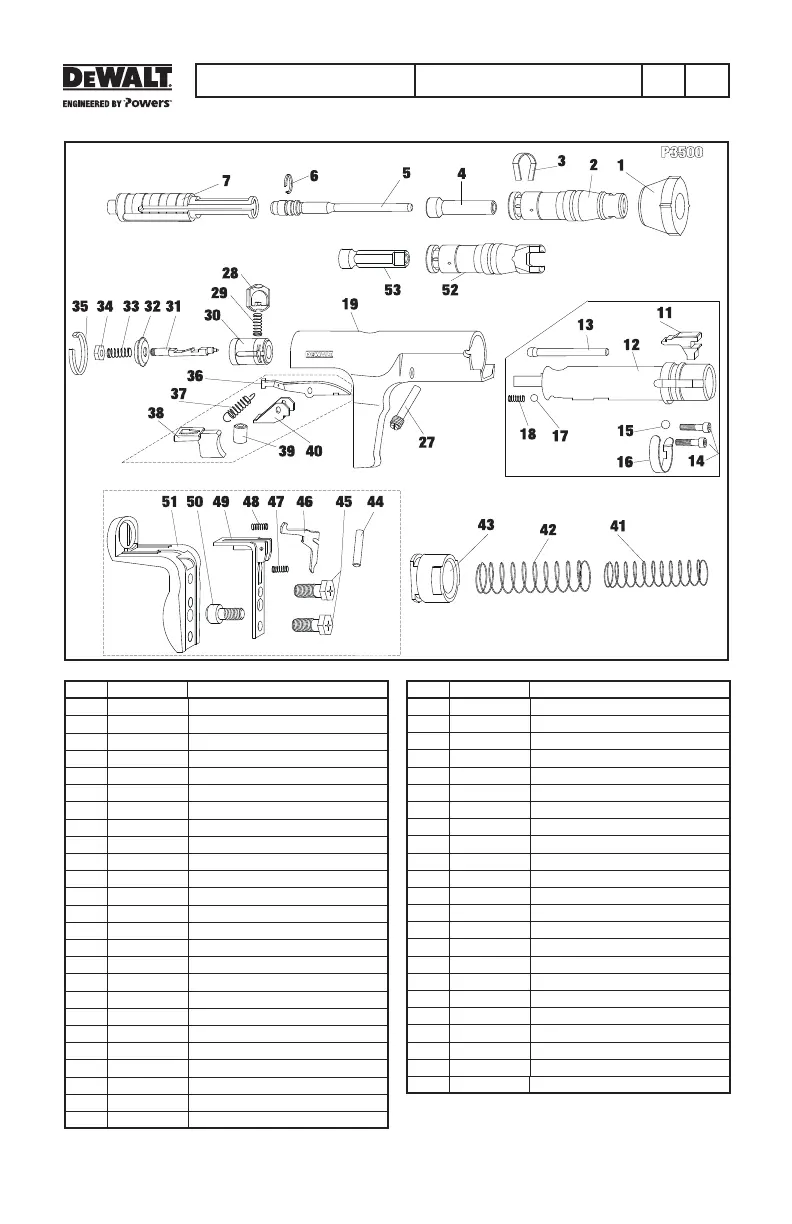

# DESCRIPTION
1 52166-PWR Stabilizer
2 52110-PWR
Baseplate 2/S-13 - Standard
3 52120-PWR Shear Clip
4 52108-PWR Guide 2/F-3 - Standard
5 52102-PWR Piston Flat End w/ Ring - Std.
6 52106-PWR Piston Ring
7 52160-PWR Piston Guide
11 52112-PWR Piston Stop
12 52162-PWR Steel Liner Assembly
13 52152-PWR Pressure Pin
14 52158-PWR
Front Allen Cap Screw (M6 x 25)
15 52122-PWR Steel Ball
16 52136-PWR Annular Ball Spring
17 52140-PWR Strip Pressure Ball
18 52140-PWR Strip Pressure Spring
19 DDF2221000 Housing
27 52128-PWR Threaded Pin
28 52146-PWR Sear
29 52134-PWR Sear Spring
30 52178-PWR Spring Guide
31 52148-PWR Firing Pin
32 52180-PWR Spring Detent
33 52138-PWR Firing Pin Return Spring
34 52156-PWR Firing Pin Nut
35 52172-PWR Retaining Ring
# DESCRIPTION
36 52130-PWR Advance Lever
37 52142-PWR Advance Lever Spring
38 52118-PWR Trigger
39 52176-PWR Advance Lever Bushing
40 52132-PWR Advance Lever Guide
41 52144-PWR Firing Pin Spring (Left Hand)
42 52144-PWR Firing Pin Spring (Right Hand)
43 52150-PWR End Cap
44 52124-PWR Release Lever Pin
45 52182-PWR Front Cap Screw (2)
46 52170-PWR Release Lever
47 52174-PWR Trigger Return Spring
48 52154-PWR Compression Spring
49 52168-PWR Support Strip Assembly
50 52184-PWR Handle Allen Screw
51 52186-PWR Rubber Grip
52 52116-PWR
Baseplate 2/S-14-1 Limited Access
53 52114-PWR Guide 2/F-4 Limited Access Set
17-18 52140-PWR Strip Pressure Ball & Spring Set
31-34 52181-PWR Firing Pin Assembly
36-40 52126-PWR Lever Guide Kit
41-42 52144-PWR Rear Spring Set
44-51 52187-PWR Handle Assembly
