DeWalt XR LI-ION DCS334P2 Original Instructions

34
ENGLISH
Description (Fig.A)

WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1
Speed trigger (DCS334), On/Off switch (DCS335)
2
Lock-off button (DCS334 only)
3
Speed control dial
4
Blade release latch
5
Finger guard
6
Orbital action lever
7
Shoe
8
Shoe bevel lever
9
Handle
10
Date code
Intended Use
Your DCS334 and DCS335 jig saws are designed for professional
cutting of wood, steel, aluminium, plastic and ceramic material
at various work sites (i.e., constructionsites).
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
These heavy-duty jigsaws are professional powertools.
Date Code Position (Fig.A)
The date code
10
, which also includes the year of manufacture,
is printed into thehousing.
Example:
2020 XX XX
Year of Manufacture
Markings on Tool

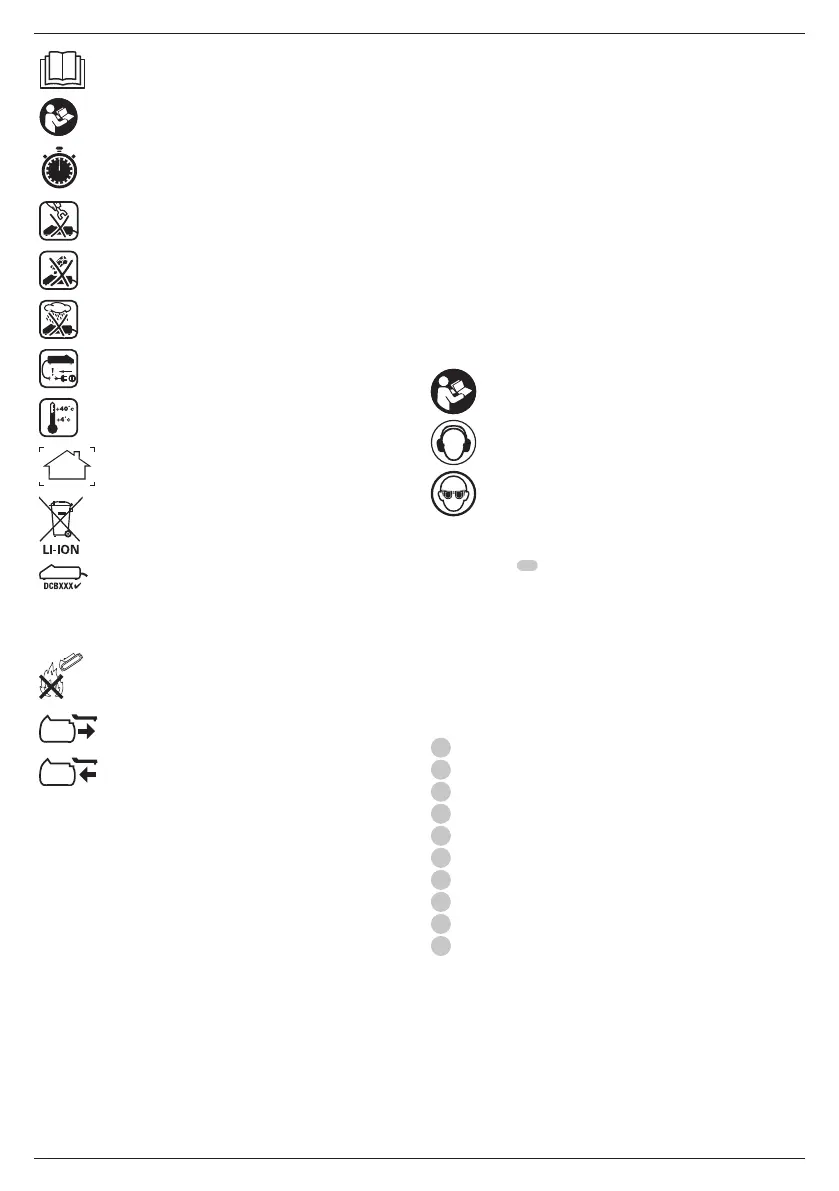

The following pictograms are shown on the tool:
Read instruction manual beforeuse.
Wear earprotection.
Wear eyeprotection.
3 Li-Ion battery packs (C3, D3, L3, M3, P3, S3, T3, X3, Y3 models)
1 Instruction manual
NOTE: Battery packs, chargers and kitboxes are not included
with N models. Battery packs and chargers are not included with
NT models. Bmodels include Bluetooth® batterypacks.
NOTE: The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth®, SIG, Inc. and any use of
such marks by DeWALT is under license. Other trademarks and
trade names are those of their respectiveowners.
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.
Package Contents
The package contains:
1 Cordless jigsaw
1 Anti-scratch shoe cover
1 Dust port
1 Dust shroud
1 Dust chute
1 Li-Ion battery pack (C1, D1, L1, M1, P1, S1, T1, X1, Y1 models)
2 Li-Ion battery packs (C2, D2, L2, M2, P2, S2, T2, X2, Y2 models)
Battery Type
The DCS334 and DCS335 operate on an 18 volt batterypack.
These battery packs may be used: DCB181, DCB182, DCB183,
DCB183B, DCB184, DCB184B, DCB185, DCB187, DCB189,
DCB546, DCB548, DCB547. Refer to Technical Data for
moreinformation.
Read instruction manual beforeuse.
See Technical Data for chargingtime.
Do not probe with conductiveobjects.
Do not charge damaged batterypacks.
Do not expose towater.
Have defective cords replacedimmediately.
Charge only between 4˚C and 40˚C.
Only for indooruse.
Discard the battery pack with due care for
theenvironment.
Charge DeWALT battery packs only with designated
DeWALT chargers. Charging battery packs other
than the designated DeWALT batteries with a
DeWALT charger may make them burst or lead to
other dangeroussituations.
Do not incinerate the batterypack.
USE (without transport cap). Example: Wh rating
indicates 108Wh (1 battery with 108Wh).
TRANSPORT (with built-in transport cap). Example:
Wh rating indicates 3x 36Wh (3batteries of 36Wh).
