NDS3306I 6 in 1 ISDB-T Modulator User Manual
13
To parse programs time limitation of parsing input programs
Program Modification:

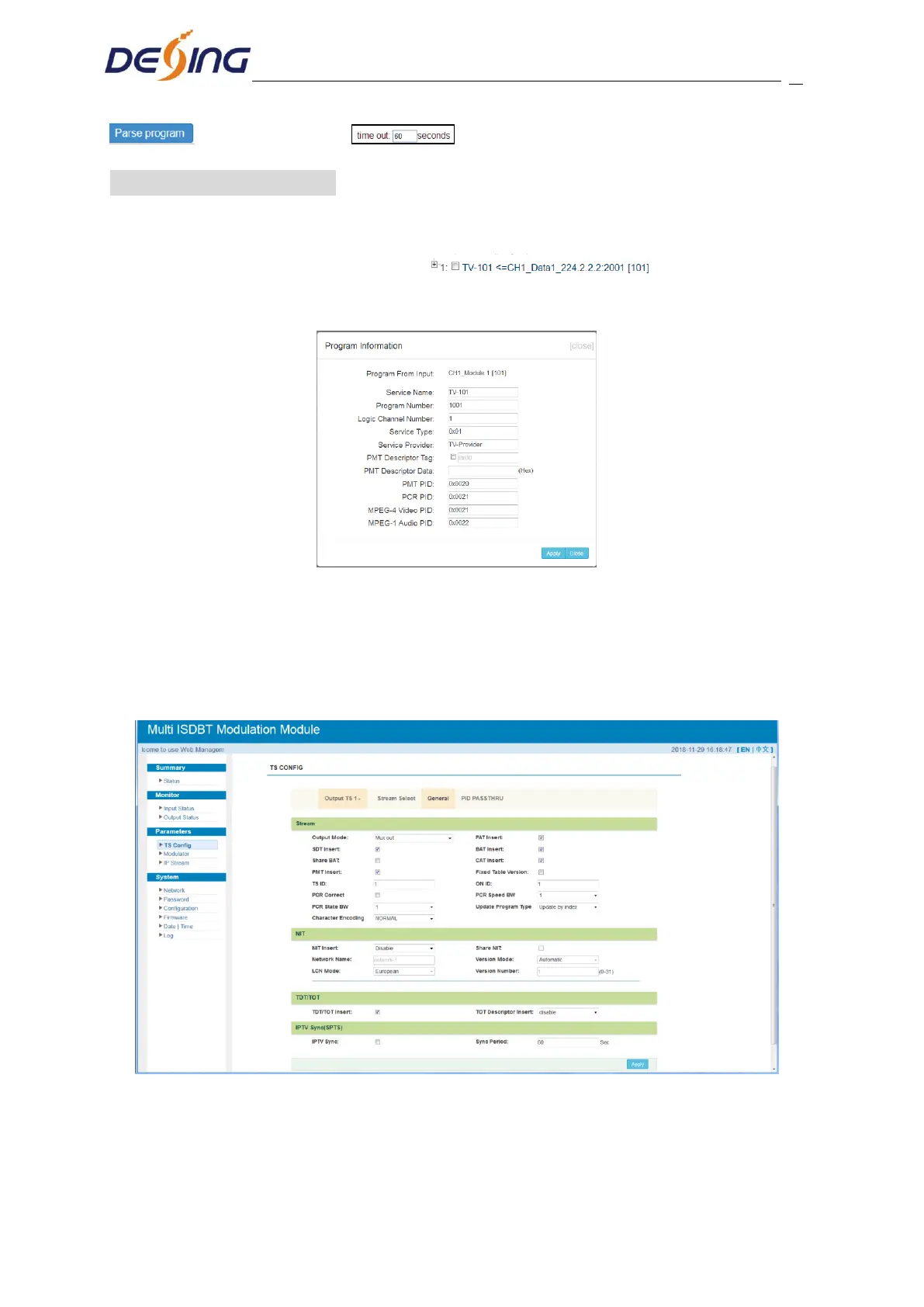

The multiplexed program information can be modified by clicking the program in the
‘output’ area. For example, when clicking , it triggers a dialog
box (Figure 9) where users can input new information.
Figure-9
 General
Clicking “General”, it will display the interface where users can set parameters for each
output channel. (Figure-10)
Figure-10
 PID Pass
Clicking “PID Bypass”, it will display the interface as Figure-11 where user can add PIDs
to be passed, click the “+” symbol, input current IP channel number, then input current IP
