Dexter Laundry B Series Parts & Service Manual

55

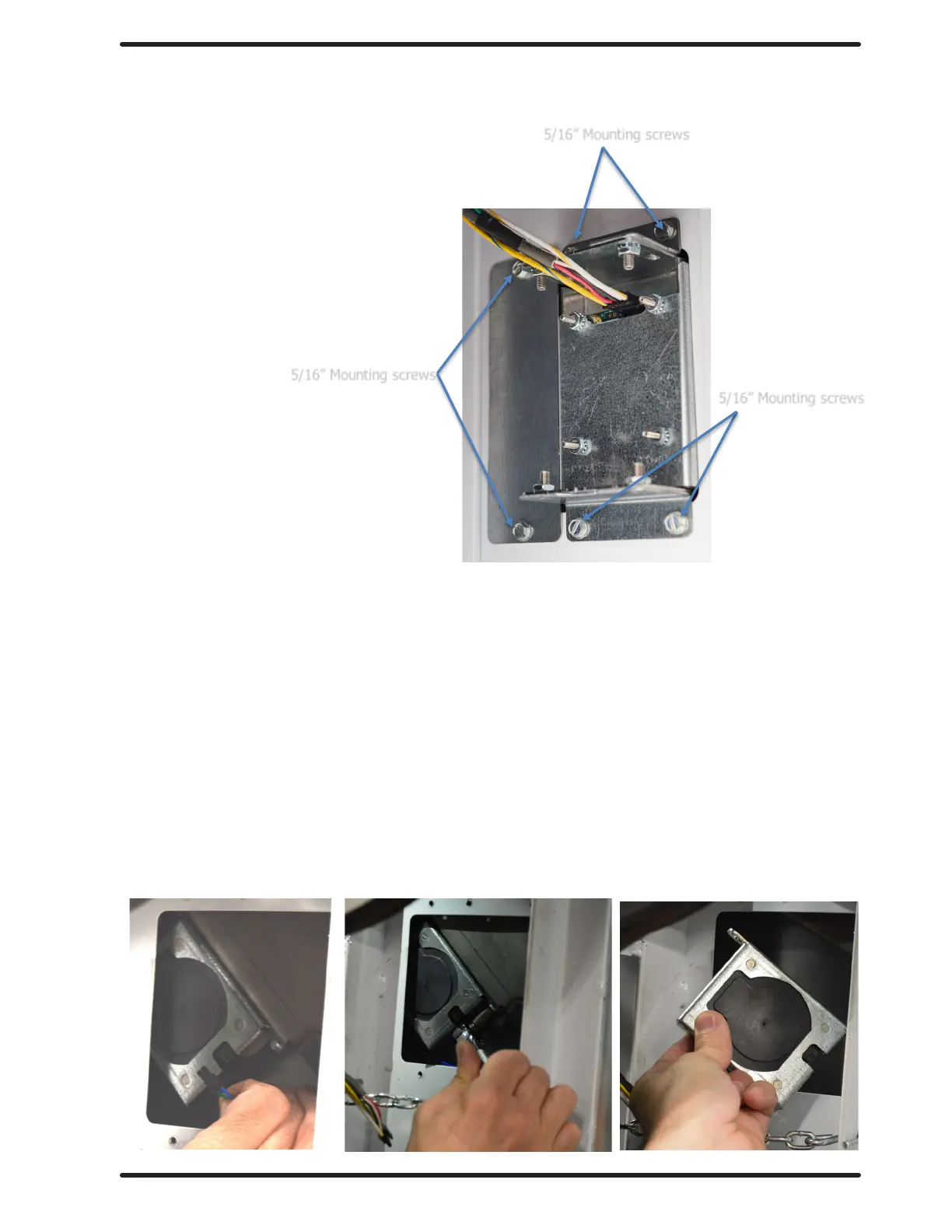

Removing RMC Stationary Board
5/16” Mounting screws
5/16” Mounting screws
5/16” Mounting screws
To Remove the Stationary PCB, RMC
1. Disconnect Harness.
2. Remove the 2 5/16” side cover
screws.
3. Remove the 4 5/16” to remove
the Stationary board assembly.
Removing RMC Rotating Board
To Remove the Rotating PCB, RMC
1. Disconnect Harness.
2. Remove the front and rear 5/16” screws.
3. Remove the Rotating module from machine.
4. Reinstall in reverse order.
Part # 8533-112-001 7/21
