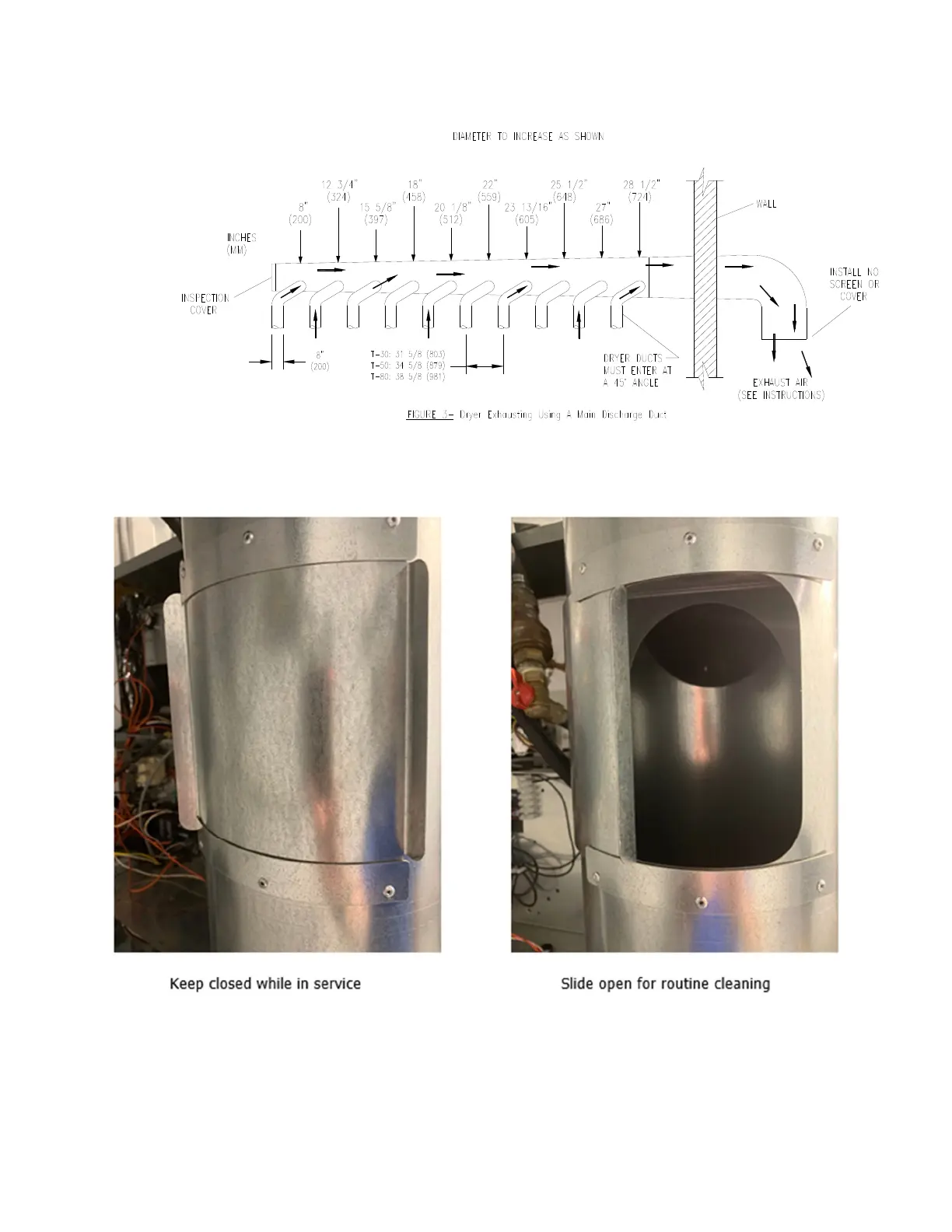

Figure 7-4 Dryer Exhausting Using A Main Discharge Duct
The exhaust duct clean-out panel (as shown below) must be closed while the dryer is in service:
Figure 7-5 Exhaust Duct Clean-Out Panel While in Service
