Dexter Laundry T300 - Page 55

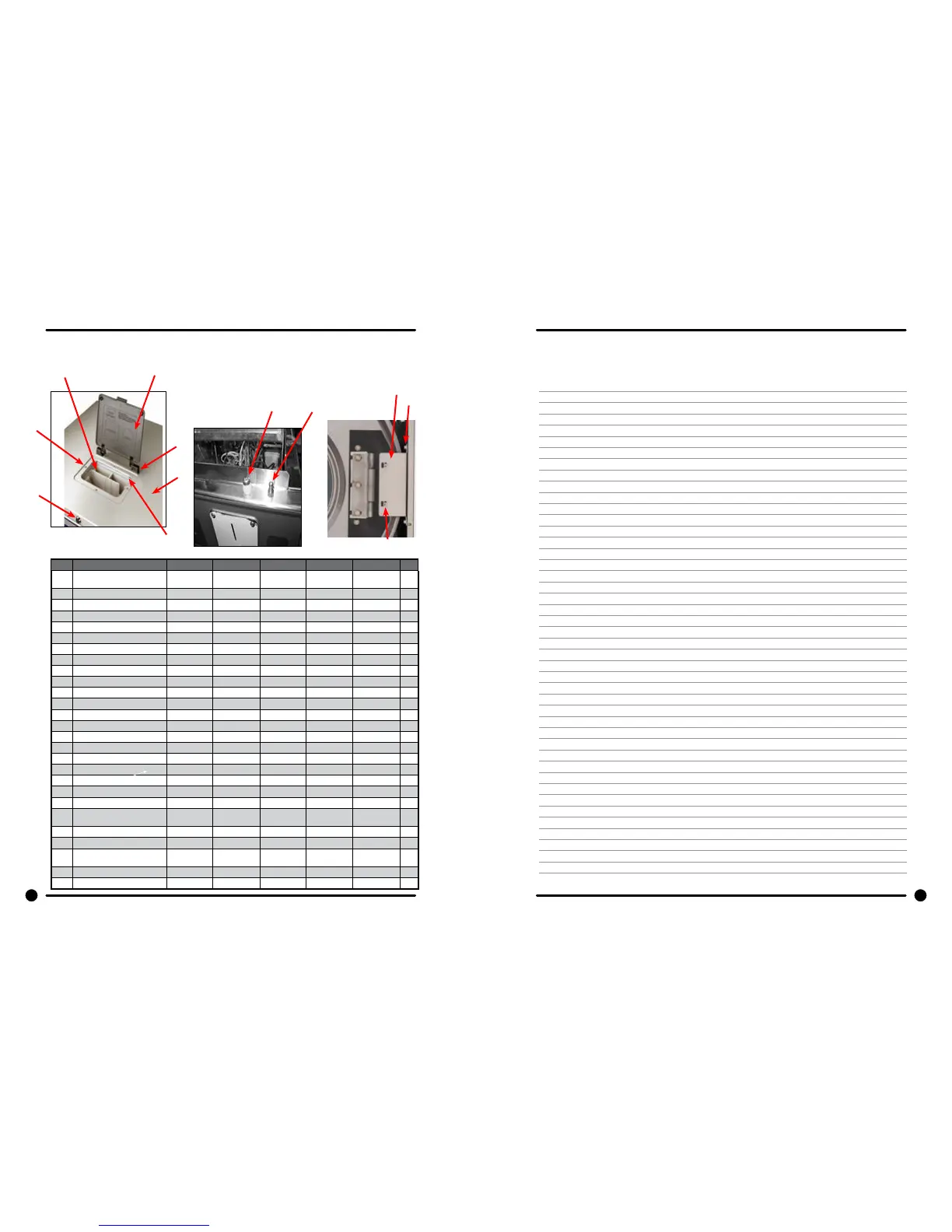

Cabinet and Front Panel Group Part # by Model Continued
Key Description T300 T350 T400 T450 T600 QTY
22 Panel Top, Assembly (includes
catch)
9989-498-001 9989-498-002 9989-498-003 9989-498-004 9989-498-005 1
* Catch, Top Panel 9086-017-001 9086-017-001 9086-017-001 9086-017-001 9086-017-001 2
* Rivit-Catch, Top Panel 8638-190-009 8638-190-009 8638-190-009 8638-190-009 8638-190-009 4
23 Lock, Top (w/Key) 8650-012-003 8650-012-003 8650-012-003 8650-012-003 8650-012-003 1
* Key, Top- # 6324 6292-006-007 6292-006-007 6292-006-007 6292-006-007 6292-006-007 1
* C a m, L o ck-To p 9095-049-001 9095-049-001 9095-049-001 9095-049-001 9095-049-001 1
* Nut, 9/32 - 28 Hex 8640-426-001 8640-426-001 8640-426-001 8640-426-001 8640-426-001 1
* Washer Flat 5/16 8641-581-0 0 8 8641-581-0 0 8 86 41-581-008 86 41-581-008 86 41-581- 008 1
24 Screw, Locator 9545-008-023 9545-008-023 9545-008-023 9545-008-023 9545-008-023 2
25 Plastic Sleeve, Locator 9355-001-001 9355-001-001 9355-001-001 9355-001-001 9355-001-001 2
26 Locator Post 9467-024-001 9467-024-001 9467-024-001 9467-024-001 9467-024-001 2
* Nut, Locator Post 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-411-003 2
27 Door, Dispenser 9108-095-005 9108-095-005 9108-095-005 9108-095-005 9108-095-005 1
28 Post, Door Mounting 9467-025-001 9467-025-001 9467-025-001 9467-025-001 9467-025-001 2
* Pin, Plain-SS 9 451-191-001 9451-191-001 9451-191-001 9451-191-001 9451-191-001 2
* Screw, Disp.Post Mtg 9545-045-002 9545-045-002 9545-045-002 9545-045-002 9545-045-002 4
29 Dispenser, Soap 9122-005-004 9122-005-004 9122-005-004 9122-005-004 9122-005-004 1
30 Gasket, Dispenser 9206-416-001 9206-416-001 9206-416-001 9206-416-001 9206-416-001 1
* Nut,Spring-SS 8640-399-007 8640-399-007 8640-399-007 8640-399-007 8640-399-007 4
31 Screw, Disp. Mtg 9545-008-012 9545-008-012 9545-008-012 9545-008-012 9545-008-012 4
* Flow Restrictor 9475-002-002 9475-002-002 9475-002-002 9475-002-002 9475-002-002 2
* Plastic Plug 1 1/2”-(inside
cylinder)
9456-041-007 9456-041-007 9456-041-007 9456-041-007 9456-041-007 1
* Hose-Dispenser outlet 9242-450-002 9242-450-002 9242-450-002 9242-450-002 9242-450-002 1
* Clamp-Hose, #32 8 65 4 -117-0 08 2
32 Bracket, Side Panel under front
panel
9029-263-001 9029-263-001 9029-263-001 9 029 -263-001 9029-263-001 1
33 Nut, Hex (to tub front) 8640-413-002 8640-413-002 8640-413-002 8640-413-002 8640-413-002 2
34 Screw, #10B x 1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 2
108 109
Part # 8533-080-001 12/15 Part # 8533-080-001 12/15
108 109
Notes
22
29
23
27
26
24
24, 25
30
34
31
32
28
