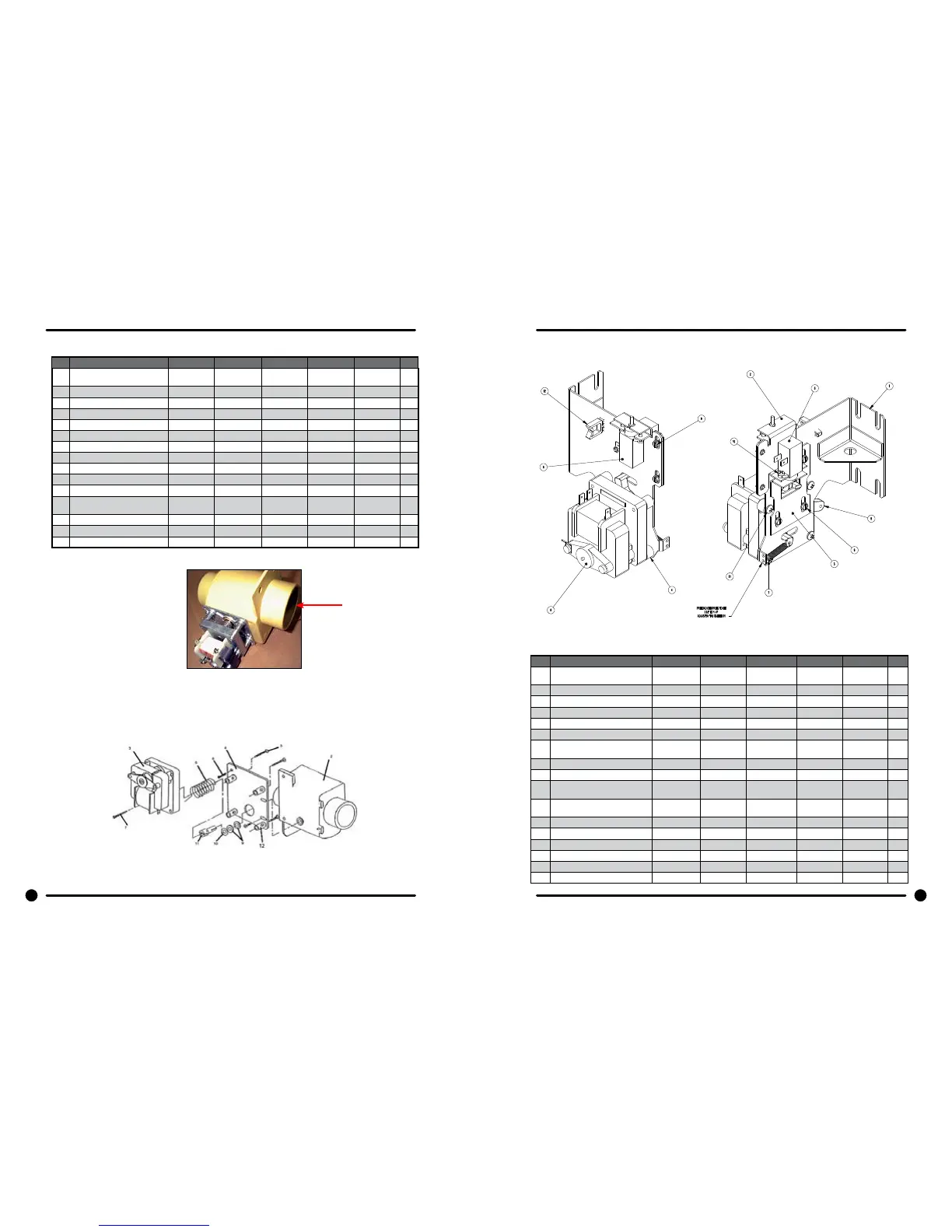

Drain Valve Group Part # by Model 50Hz.
Key Description T300 T350 T4 0 0 T450 T600 QTY
1 Valve, Drain (includes #2 thru
#11)
9379-199-001 9379-199-001 9379-200-001 9379-200-001 9379-200-001 1
2 Body, Valve (w/ball) 9064-068-002 9064-068-002 9064-070-001 9064-070-001 9064-070-001 1
3 Motor & Gear Train (complete) 9914-137-019 9914-137-029 9914-137-016 9914-137-016 9914-137-016 1
4 Plate, Motor Mtg 9452-538-001 9452-538-001 9452-538-001 9452-538-001 9452-538-001 1
5 Screw 8639-994-001 8639-994-001 8639-994-001 8639-994-001 8639-994-001 3
6 Spring, Drive 9534-340-001 9534-340-001 9534-339-001 9534-339-001 9534-339-001 1
7 Screw 9545-054-001 9545-054-001 9545-054-001 9545-054-001 9545-054-001 2
8 Screw 9545-054-002 9545-054-002 9545-054-002 9545-054-002 9545-054-002 1
9 Seal, V Packer 9532-134-001 9532-134-001 9532-134-001 9532-134-001 9532-134-001 2
10 Washer 8641-584-001 8641-584-001 8641-584-001 8641-584-001 8641-584-001 1
11 Pin, Main Drive 9451-196-001 9451-196-001 9451-196-001 9451-196-001 9451-196-001 1
12 Plate (spacers needed for re-
placement motor mtg. plate)
9538-149- 0 01 9538-149- 0 01 9538 -14 9 -001 9538 -149-0 01 9538-149 - 001 4
13 Stator and Coil Assembly 9089-036-004 9089-036-004 9089-036-004 9089-036-004 9089-036-004 1
1
Key Description T300 T350 T4 0 0 T450 T600 QTY
* Actuator Assembly (Includes 1-10,
Rod NOT included)
9892-015-002 9892-015-002 9892-015-002 9892-015-002 9892-015-002 1
1 Bracket Assy, Slide Lock Actuator 9985-190-001 9985-190-001 9985-190-001 9985-190-001 9985-190-001 1
2 Bracket Assy, Slide - Unlock 9985-189-001 9985-189-001 9985-189-001 9985-189-001 9985-189-001 1
3 Bracket Slide Lock 9029-204-001 9029-204-001 9 029 -204-001 9029-20 4 - 001 9029-204-001 1
4 Spacer, Plastic 9538-157- 021 9538-157- 021 953 8-15 7-021 9538-157- 021 9538-157-021 4
5 Arm - Door Lock 9001-063-001 9001-063-001 9001-063-001 9001-063-001 9001-063-001 1
6 Thermoactuator - Door Lock
Relay 24V
9586-001-003 9586-001-003 9586-001-003 9586-001-003 9586-001-003 2
7 Spring - Extension 9534-350-001 9534-350-001 9534-350-001 9534-350-001 9534-350-001 1
8 Motor & Gear Assembly 24V 9914 -137-014 9 914-137-014 9914 -137-014 9914 -137-014 9914-137-014 1
9 Screw -Hxwshrhdslsems, 6-32 x
3/16
9545-044-003 9545-044-003 9545-044-003 9545-044-003 9545-044-
003
6
10 Cross Recessed PAn Hd Tapping
screw
9545-031-011 9545-031-011 9545-031-011 9545-031-011 9545-031-011 4
11 Screw Pnhdcr, 10-32 UNFx0 .75 9545-012-027 9545-012-027 9545-012-027 9545-012-027 9545-012-027 4
12 Standoff-Wire Saddle 9527-007-0 01 9527-007-001 9527-007- 001 9527- 007-001 9527-007-001 1
* Rod, Door Lock 9497-225-011 9497-225 - 011 9497-225-012 9497-225-012 9497-225-010 1
* Harness, Door Lock/Drain, P17 9627-796-001 9627-796-001 9627-796-001 9627-796-001 9627-796-001 1
Door Lock Motor Assy # by Model 50Hz.
158 159
Part # 8533-080-001 12/15 Part # 8533-080-001 12/15
