Dexter Laundry T600 - IEC 20 Lb. Non-Express: 208-240 Volt

IEC 20Lb. Non-Express:

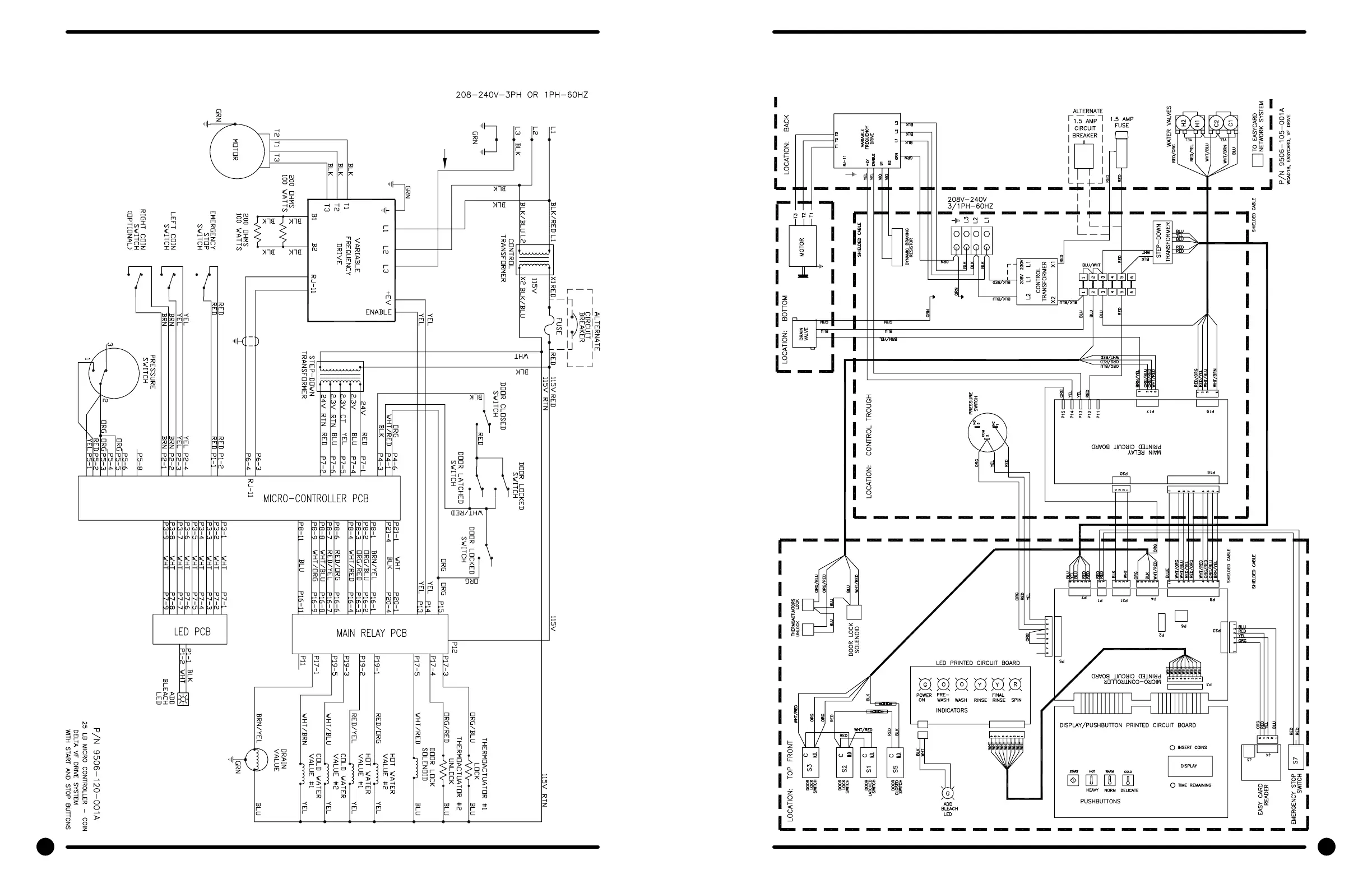

208-240 Volt Wiring Schematic
IEC 20Lb. Non-Express:
208-240 Volt Wiring Diagram
